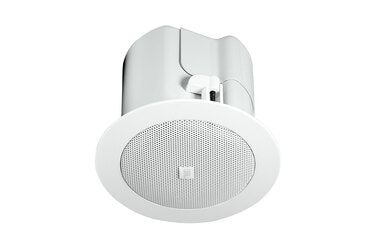

CONTROL 42C

The JBL Control 42C ultra-compact satellite loudspeaker combines with the Control 40CS/T subwoofer for a powerful system designed for wide-bandwidth applications with minimal visual impact.

From the Manufacturer:

The Control 42C is an ultra-compact, in-ceiling satellite loudspeaker designed for use with the Control 40CS/T in-ceiling subwoofer. When combined with the Control 40CS/T, the Control 42C offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.

For full-range wide-bandwidth performance, either 2 or 4 Control 42C mid-high speakers can be driven from the Control 40CS/T subwoofer (or from a Control 50S/T surface-mount or Control 60PS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Features:

• Small, Unobtrusive Size
• High-Fidelity Sound for Subwoofer-Satellite Systems
• Elegant industrial design fits any décor

Specifications:

• Frequency Range: 140 Hz - 20 kHz
• Power Rating: IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hr
• Sensitivity: 82 dB (1kHz - 16 kHz)
• Drivers: 60 mm (2.5 in)
• Coverage Angle: 160° conical
• Impedance: 16 ohms
• Input Connectors: Two removeable locking 2-pin connectors with screwdown terminals.
• Optional Accessories: MTC-RAIL tile rails MTC-42NC New Construction bracket MTC-42MR Mud Ring Construction Bracket
• Included Accessories: C-ring support backing plate, knockout strain relief, cutout template, paint shield.
• Dimensions (Diameter x Depth): 127mm Diameter x 94mm Diameter Depth (5.0 in x 4.2 in)
• Maximum SPL (1m): 94 dB @ 1 m (3.3 ft) average, 100 dB peak
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
• Plenum Usage: Yes, backcan included
