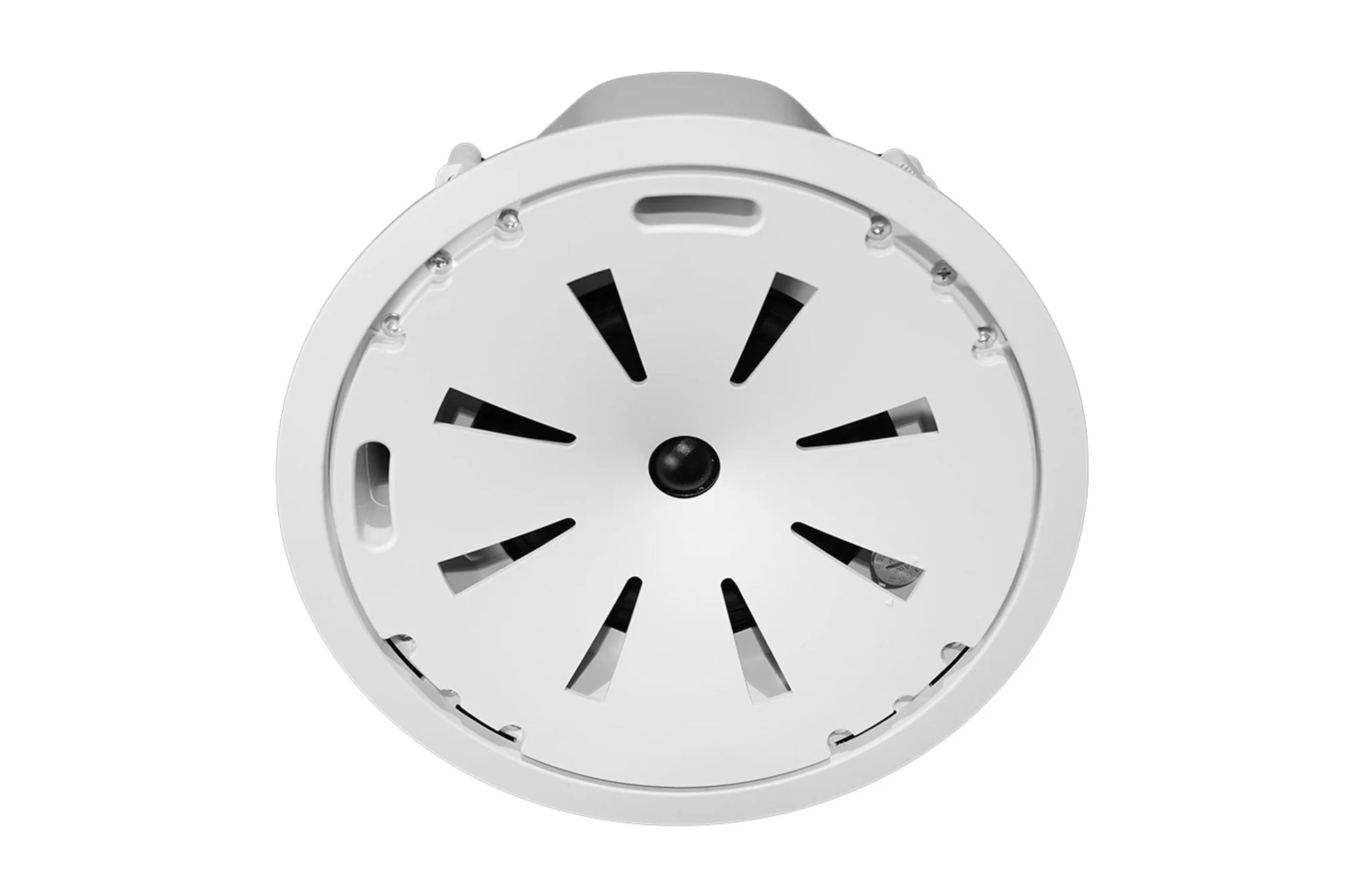

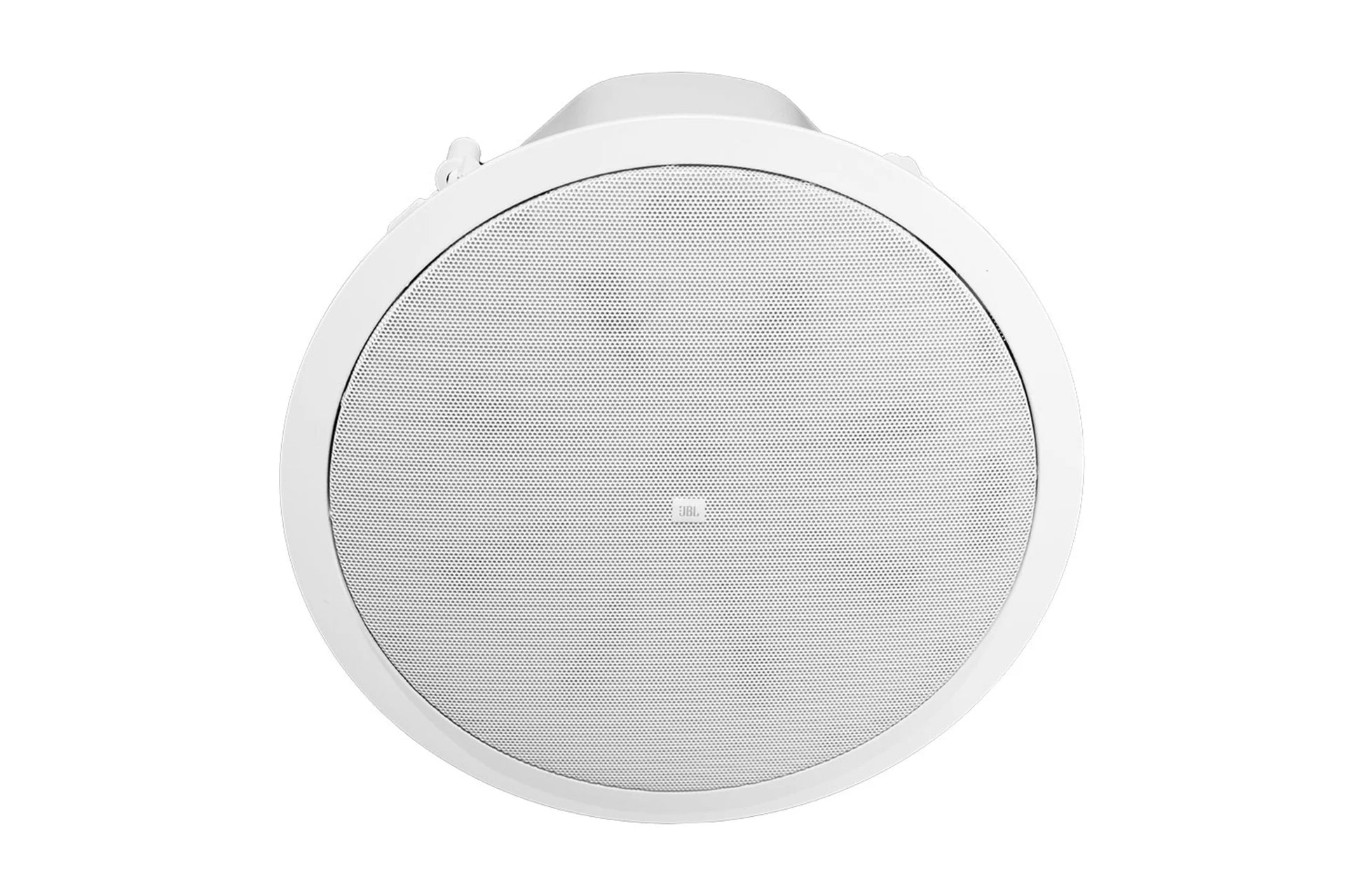

CONTROL 47LP

The JBL Control 47LP offers a low profile version of the Control 47C/T for locations with limited above-ceiling clearance, perfect for restaurants, retail, casinos, and more.

From the Manufacturer:

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.

Features:

• Shallow Backcan Version of 47C/T for locations with limited clearance
• Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
• Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
• Flat Frequency Response and Superior Performance
• Elegant design fits any décor

Specifications:

• Frequency Range: 68 Hz - 20 kHz
• Power Rating: IEC System Long-Term Ratings (low-Z direct):
• 150 Watts Continuous Program Power
• 75 Watts Continuous Pink Noise (300W peak), hrs
• Sensitivity: 91 dB (1kHz - 16 kHz)
• Transformer Taps: 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
• Coverage Angle: 120° conical, constant directivity
• Impedance: 8 ohms (in bypass mode)
• Drivers:
  • LF Driver: 165 mm (6.5 in)
  • HF Driver: 25 mm (1 in)

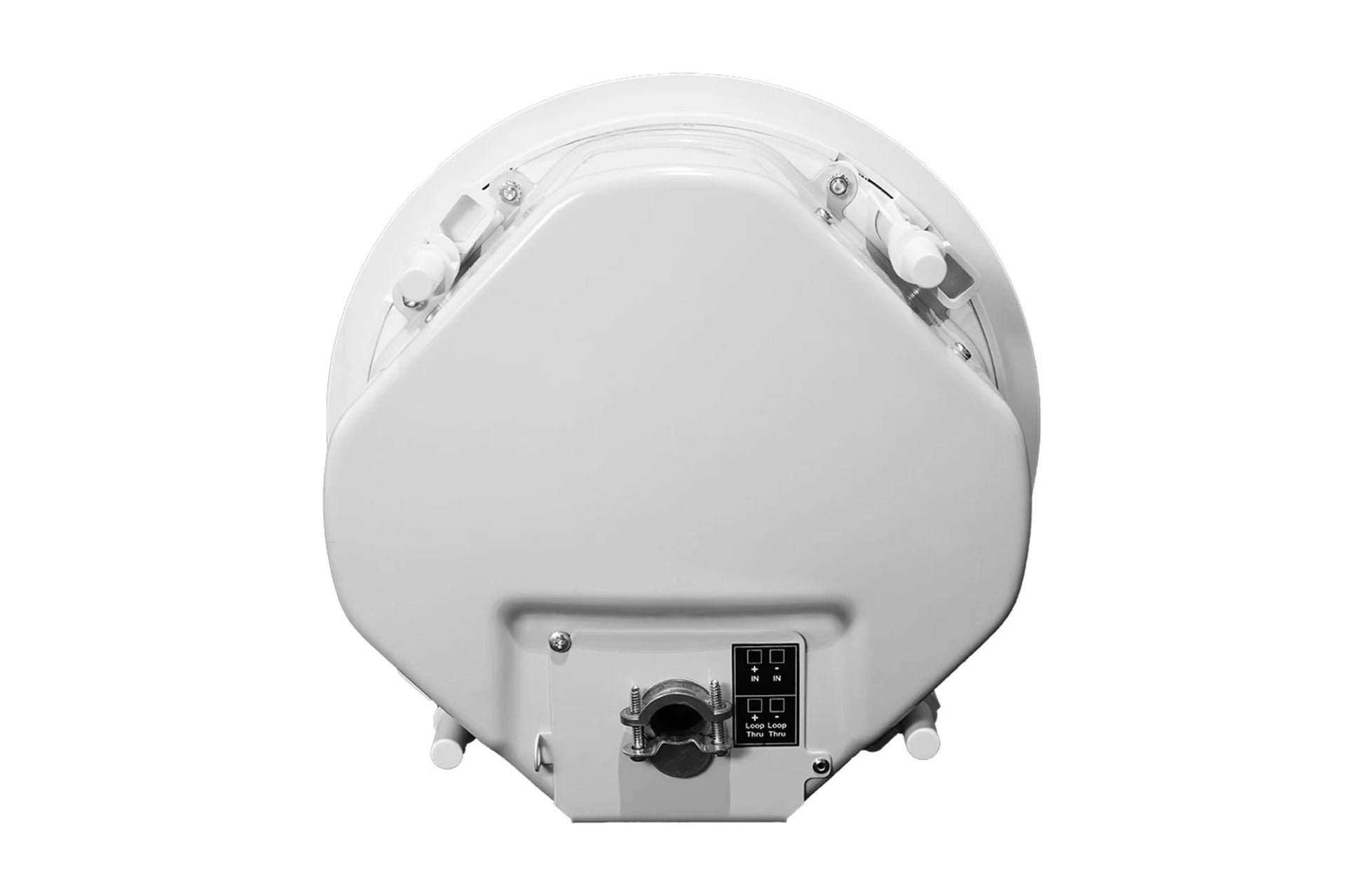

• Input Connectors: Two removeable locking 2-pin connectors with screwdown terminals.
• Included Accessories: C-rings, tile rails, paint shield, cutout template, Grille

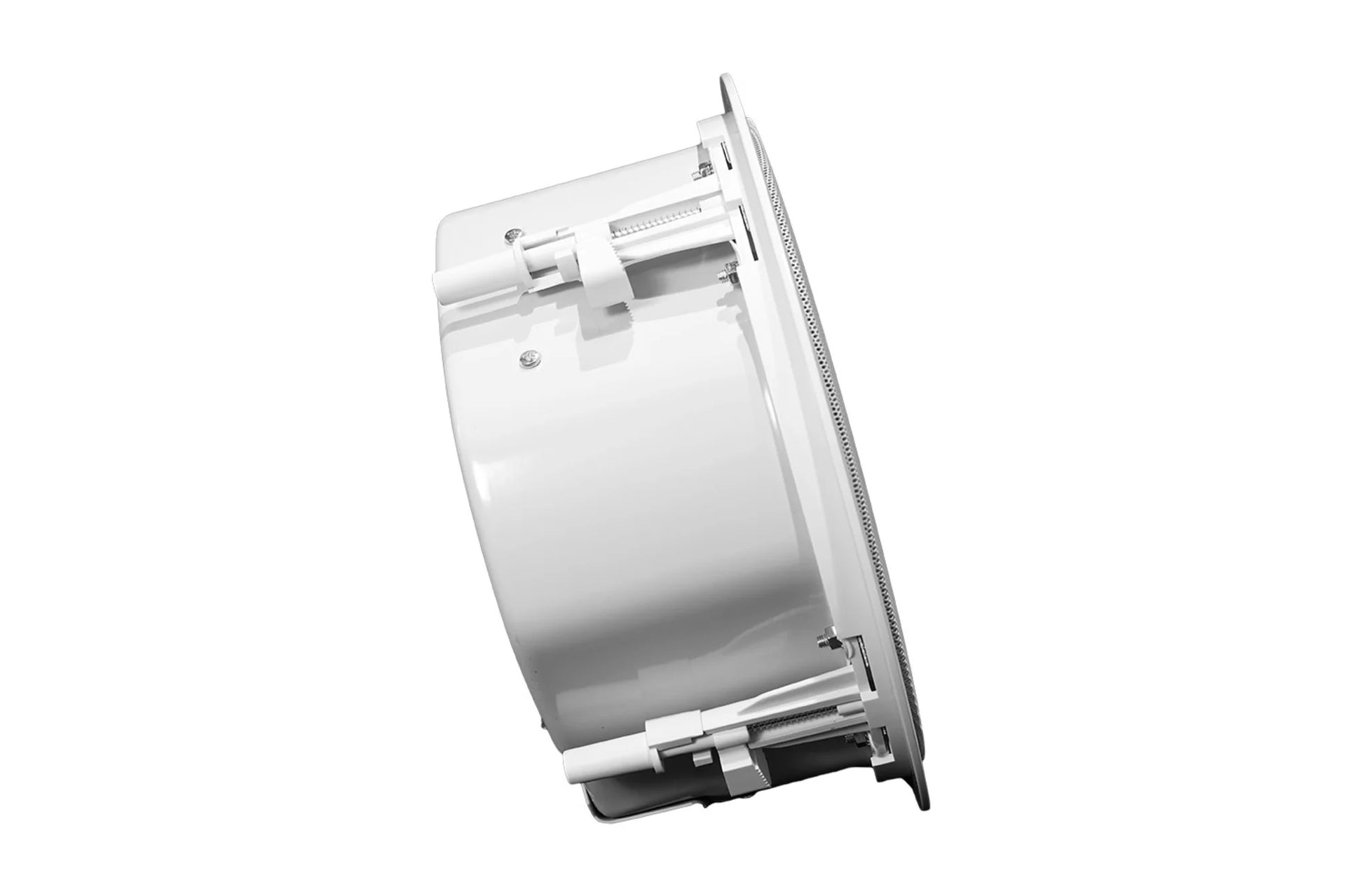

• Dimensions (Diameter x Depth): 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in)
• Maximum SPL (1m):
  • 110 dB (low-impedance, 116 dB peak)
  • 109 dB (top 70V/100V tap)
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
• Ceiling Cutout Size: 282 mm Diameter (11.1 in) (cardboard cutout template included)
• Optional Accessories: MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
• Plenum Usage: Yes, backcan included
