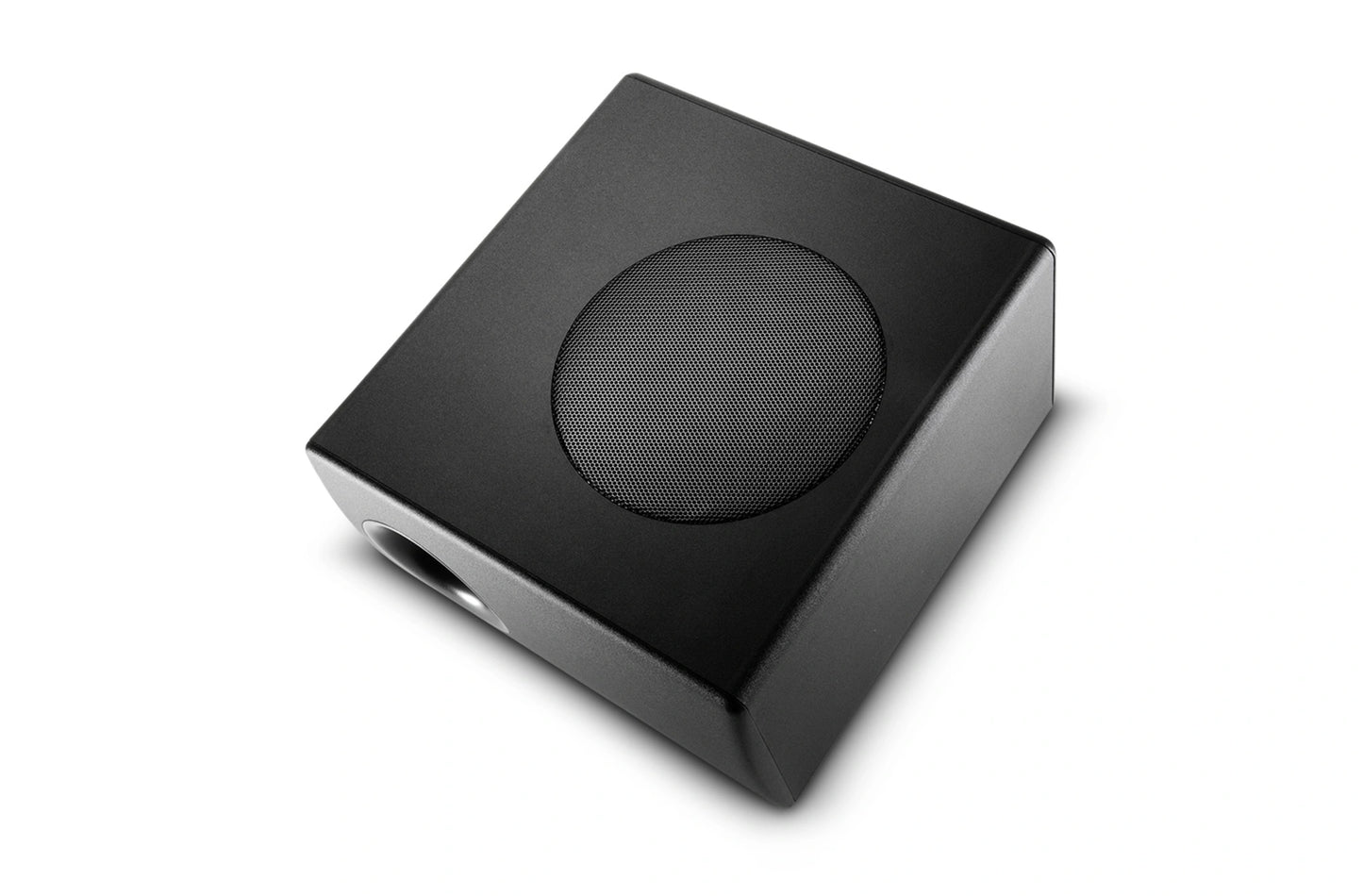

CONTROL 50S/T

The JBL Control 50S/T is a surface-mount subwoofer for subwoofer-satellite loudspeaker systems. It can be a great option to increase the low end capability of your sound system.

From the Manufacturer:

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.

Features:

• Full bandwidth 32 Hz – 20 kHz high fidelity sound
• Selectable 70V/100V for distributed lines, or low impedance
• Versatility for either two or four satellite speakers per system
• Available in black or white

Specifications:

• Frequency Range (-10dB): 32 Hz – 200 Hz
• Frequency Response (±3 dB): 50 Hz – 150 Hz
• Power Capacity: 300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs)
• Sensitivity: 95 dB (near corner), 89 dB (center of wall)
• Maximum SPL (1m): 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
• Impedance: 8 ohms (in bypass/thru mode)
• Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
• Drivers: 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
• Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
• Enclosure: Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
• Dimensions (H x W x D): Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep
• Mounting Hardware: 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
• Net Weight (each): 9.0 kg (20 lbs)
• Shipping Weight: 10.2 kg (23 lbs)
• Included Accessories: Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
• Grille: Zinc-plated steel
• Coverage Angle: Omnidirectional
