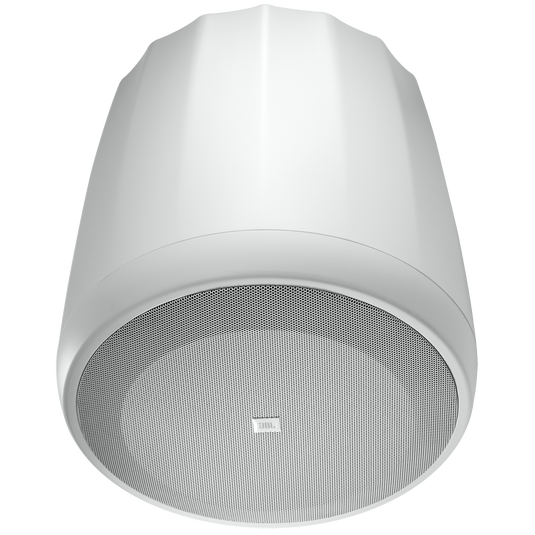

Control 60PS/T

A high-performance pendant subwoofer with built-in crossover, designed for suspended commercial audio systems, delivering powerful low-frequency reinforcement for distributed background and foreground music setups.

From The Manufacturer:

The JBL Control 60PS/T provides bass extension and high impact for high-fidelity sound systems in environments such as restaurants, retail stores, and leisure venues. It features a long-excursion 8-inch driver, low distortion performance, and a built-in passive crossover for integrating multiple satellite speakers.

Features:

• 8” (200 mm) long-excursion low-frequency driver

• 150W continuous / 300W program power handling

• Built-in passive crossover for up to 4 satellite speakers

• Supports 2 or 4 satellite speaker configurations

• Operates in 8Ω or 70V/100V distributed systems

• Pendant (hanging) design for open-ceiling installations

• Includes dual suspension cable system (main + safety)

• Moisture-resistant polypropylene-coated cone

• Butyl rubber surround for durability and tight bass response

• Ideal for retail, hospitality, gyms, and commercial spaces

Specification:

• System Type: Pendant subwoofer with crossover

• Driver: 200 mm (8”) long-excursion woofer

• Frequency Range (-10 dB): 42 Hz – 350 Hz

• Frequency Response (±3 dB): 55 Hz – 125 Hz

• Power Handling:

• 150 W continuous (pink noise)

• 300 W program

• Sensitivity: 88 dB (2.83V/1m)

• Maximum SPL: 107 dB continuous / 113 dB peak

• Nominal Impedance: 8 ohms

• Transformer Taps:

• 70V: 110W / 55W / 30W / 15W

• 100V: 110W / 55W / 30W

• Coverage: 140° conical

• Enclosure Material: High-impact polystyrene

• Environmental Rating: IP44, Mil-STD-810 compliant

• Dimensions:

• Diameter: 333 mm

• Height: 344 mm (369 mm including bracket)

• Weight: 7.6 kg

Included:

• 1 × JBL Control 60PS/T subwoofer

• 2 × suspension cable systems (main + safety)

• 6 × locking 2-pin Euroblock connectors

• 6 × rubber terminal covers
