Control 64P/T

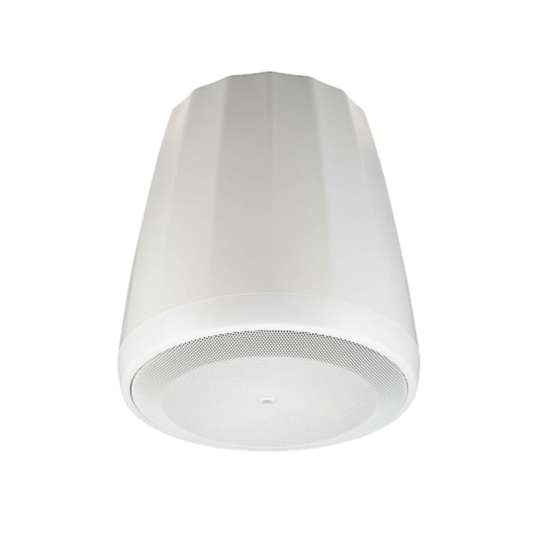

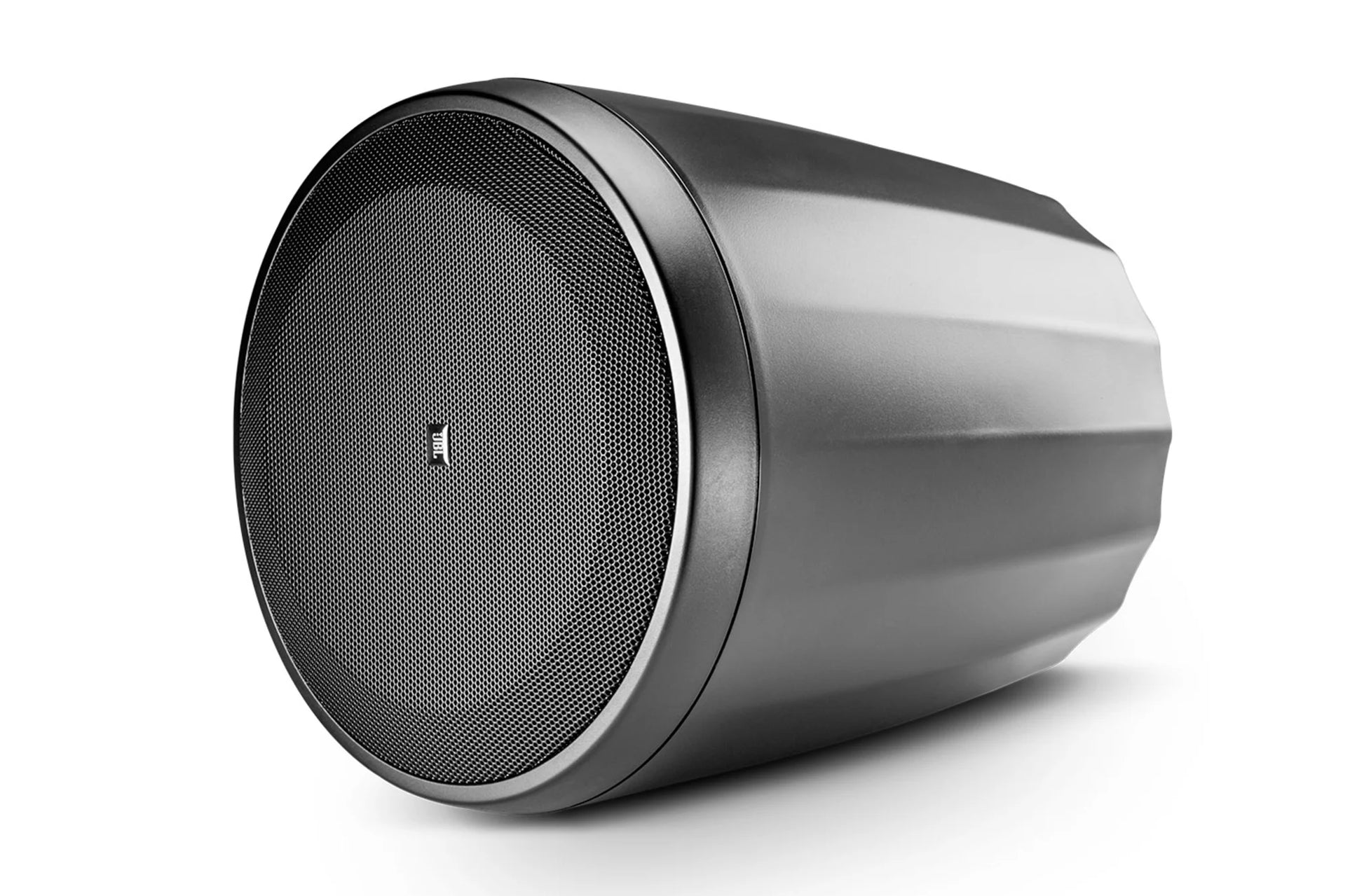

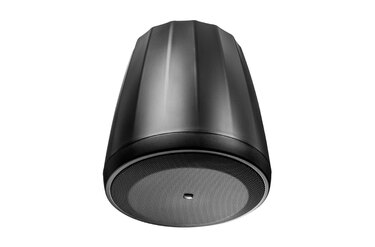

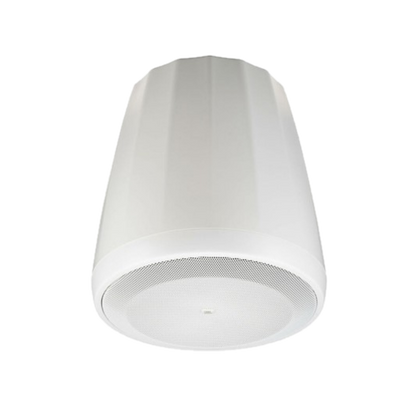

The JBL Control 64 P/T is a compact, full range pendant loudspeaker that provides excellent sound reproduction for large open spaces.

From the Manufacturer:

The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.

Features:

• 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
• Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
• Stylish design, available in black or white (-WH).
• UL listed (speaker and hanging cable system).
• 8Ω and 70V/100V operation

Specifications:

• Frequency Range (-10dB): 65 Hz - 15 kHz
• Frequency Response (±3 dB): 85Hz - 14 kHz
• Power Rating: 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage: 18.2 V RMS (2 hrs), 36.4 V peak
• Nominal Sensitivity: 88 dB Nominal
• Coverage Angle: 120° conical
• Directivity Factor (Q): 6.2
• Directivity Index (DI): 7.3dB (averaged 1kHz – 16kHz)
• Maximum SPL (1m): 105 dB continuous pink noise, 111 dB peak
• Impedance: 8Ω
• Transformer Taps: 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
• Transformer Insertion Loss: 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W

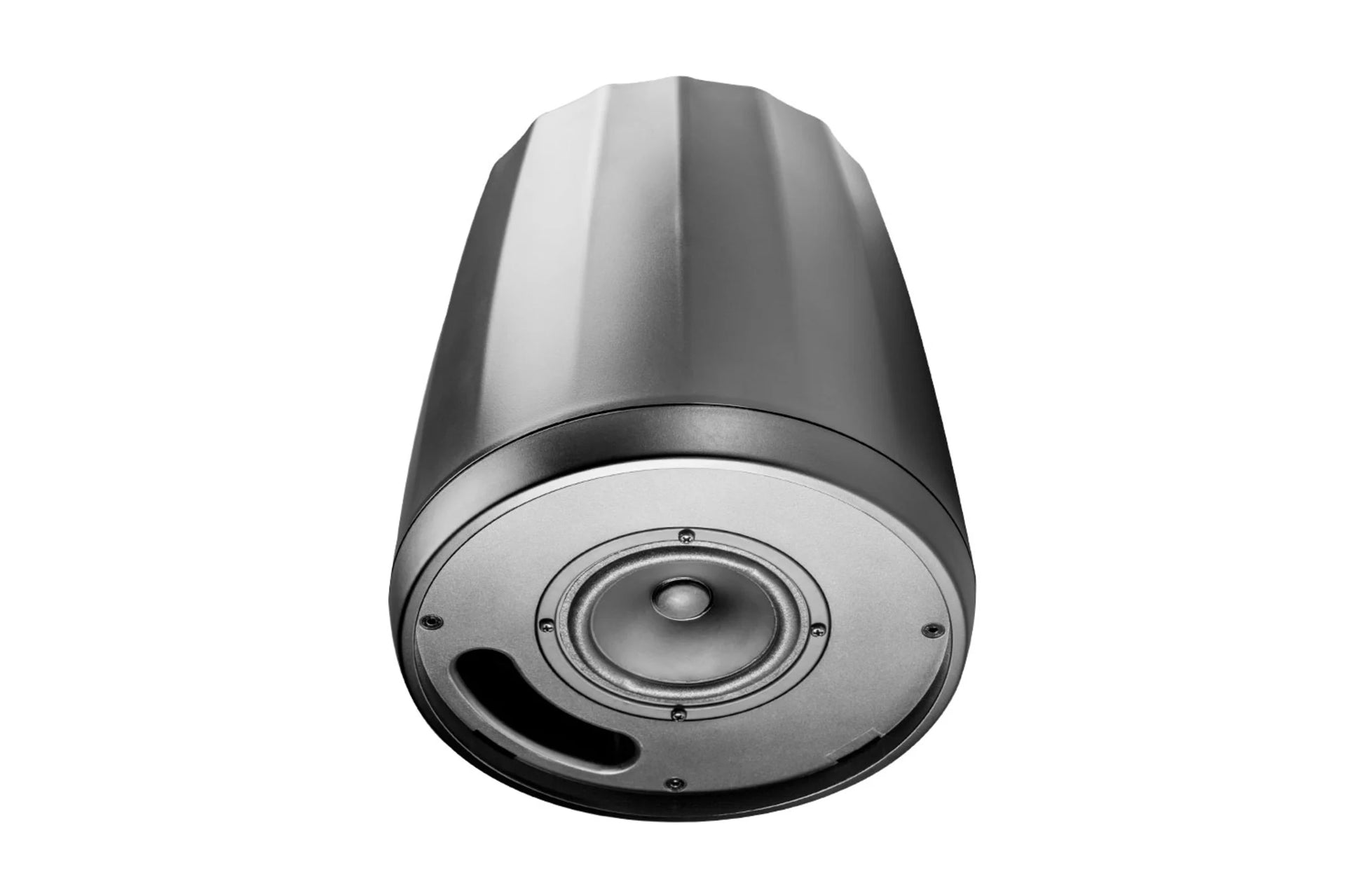

• Drivers: 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
• Enclosure: High impact polystyrene
• Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.
• Input Connectors: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
• Dimensions (H x W x D): 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
• Net Weight (each): 2.35 kg (5.2 lbs)
• Shipping Weight (pair): 6.07 kg (13.4 lbs)
• Included Accessories: Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
• Optional Accessories: MTC-PC60 top panel / terminal cover
• Colors: Available in black or white (-WH). Paintable
