Control CRV

A premium architectural curved installation loudspeaker designed for indoor and outdoor commercial spaces, offering flexible mounting, wide coverage, and high-end aesthetic integration.

From The Manufacturer:

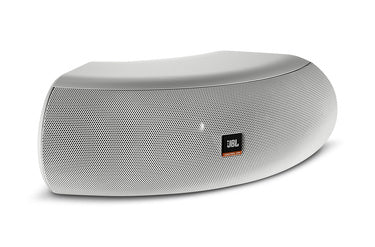

The JBL Control CRV is a versatile architectural loudspeaker designed for high-end commercial environments requiring both performance and visual appeal. Its curved enclosure allows multiple speakers to be combined into linear, corner, or full 360° arrays, making it highly adaptable for complex coverage and design requirements.

It features weather-resistant construction for indoor and outdoor use and includes a built-in transformer for 70V/100V distributed audio systems as well as low-impedance operation.

Features:

• Dual 4” (100 mm) woofers + ¾” titanium-laminate tweeter

• Unique curved architectural design for flexible installations

• Can be configured in straight, angled, corner, or circular arrays

• Indoor/outdoor weather-resistant (IP34 rated)

• Built-in 70V/100V multi-tap transformer + 4Ω direct mode

• Wide coverage for distributed sound applications

• Wall-mount bracket included (with optional accessories for array builds)

• Designed for commercial architectural integration

Specification:

• System Type: 2-way installation loudspeaker

• LF Drivers: Dual 4” (100 mm) woofers

• HF Driver: ¾” (19 mm) titanium-laminate tweeter

• Frequency Range: 80 Hz – 20 kHz

• Power Handling: 75 W continuous pink noise / 300 W peak

• Sensitivity: 89 dB (1W/1m)

• Maximum SPL: 108 dB continuous / 114 dB peak

• Coverage: 105° horizontal × 80° vertical

• Nominal Impedance: 4 ohms

• Transformer Taps (70V): 30W / 15W / 7.5W (+3.8W)

• Transformer Taps (100V): 30W / 15W / 7.5W

• Enclosure Material: Weather-resistant polymer housing

• Grille: Zinc-plated steel

• Environmental Rating: IP34 weather resistance

• Dimensions: 364 × 251 × 127 mm

• Weight: 3.2 kg

Included:

• 1 × JBL Control CRV loudspeaker

• Wall-mount bracket hardware kit

• Installation screws and trim covers
