DioPlex HD-3/3Q/3QS

This is a high quality durable LED Panel that is great for use in outdoor applications. This is a robust and cost effective solution that still provides you with the top of the range quality that you would expect from DVS. This LED video wall is safe to use in almost all weather conditions with it's IP67 rated enclosure. Don't miss out on getting yours!

From The Manufacturer:

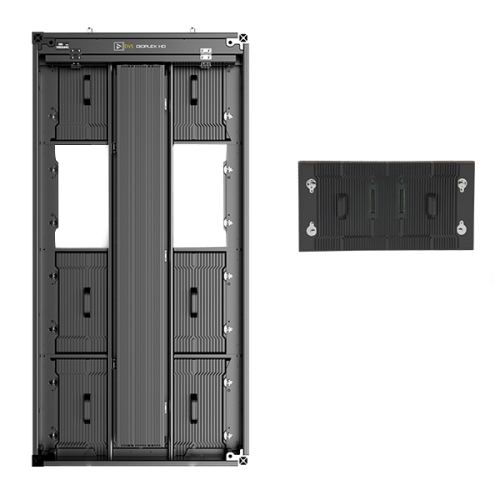

DioPlex HD-3 is a high-resolution, 3.91mm pixel pitch outdoor LED video wall panel designed to provide a robust, yet cost-effective solution for permanent install applications. Its high pixel density provides a fully scalable solution for close viewing distances and increased image detail in a robust IP67 rated enclosure that ensures long-lasting operation in a variety of weather conditions. DioPlex HD-3 features high-output, high-contrast SMD encapsulated LEDs to deliver stunningly vivid images optimized for visibility in broad daylight, and preserve color consistency with lower brightness settings. DioPlex HD series are uniquely both front- and rear-serviceable with a lightweight design featuring patented aluminum convective heat-sink modules for efficient, fanless operation.

If you do not have experience with LED walls, professional installation is strongly recommended.

Flexibility:

DioPlex series offers complete, bespoke customization options designed to accommodate the unique creative architecture of any installation site. DioPlex can be configured in flat, convex, concave, and 90-degree corner options for a wide range of creative flexibility. DioPlex is offered in a standard 37×37″ (960x960mm) cabinet size (SMD models) with additional custom cabinet sizes available to accommodate precise screen dimensions.

LED Panel Key Features:

• Efficient Design

• Front & Rear Serviceability
• High Contrast Brightness

• IP67 Rated + Tapered Water Drainage Soffits

In the Box:

• DioPlex HD-2/2Q/2QS LED Panel

Specifications:

• Pixel Pitch: 3.91mm
• LED Type: SMD1921
• Brightness: 4,500≥NITS
• Viewing Angle: 140° H | 120° V
• Refresh Rate: 1,920≥Hz (3840≥Hz Optional)
• Grayscale: 14 Bit +/-

Optical:

• Pixel Density: 128 x 256
• Brightness: 5,000≥ NITS
• Viewing Angle: 140° H | 120° V
• Grayscale: 14 bit +/-

Power:

• Voltage: 120-240v
• Max Power: 450w / panel
• Average Power: 230w / panel

Control:

• Control System: NovaStar
• Receiving Card: NovaStar A5S Plus
• Supported Inputs: HDMI, DVI, VGA, SDI, WiFi
• Frame Rate: 60hz

Warranty: Backed by a 7-year warranty.
