ViuPlex-1.2
LED wall packages are often in stock and can ship fairly quickly, but may not. If you have a specific need-by date, contact us first to ensure we can guarantee that date! We LOVE to help!
Description
Description
This high quality LED Video wall tile has an even smaller LED pitch resulting in an even better viewing experience. This LED Video Wall requires minimal viewing distance to have exceptional viewing quality.
Viuplex walls are packaged based on the size you need, contact us and we can build a quote for you!
From The Manufacturer:

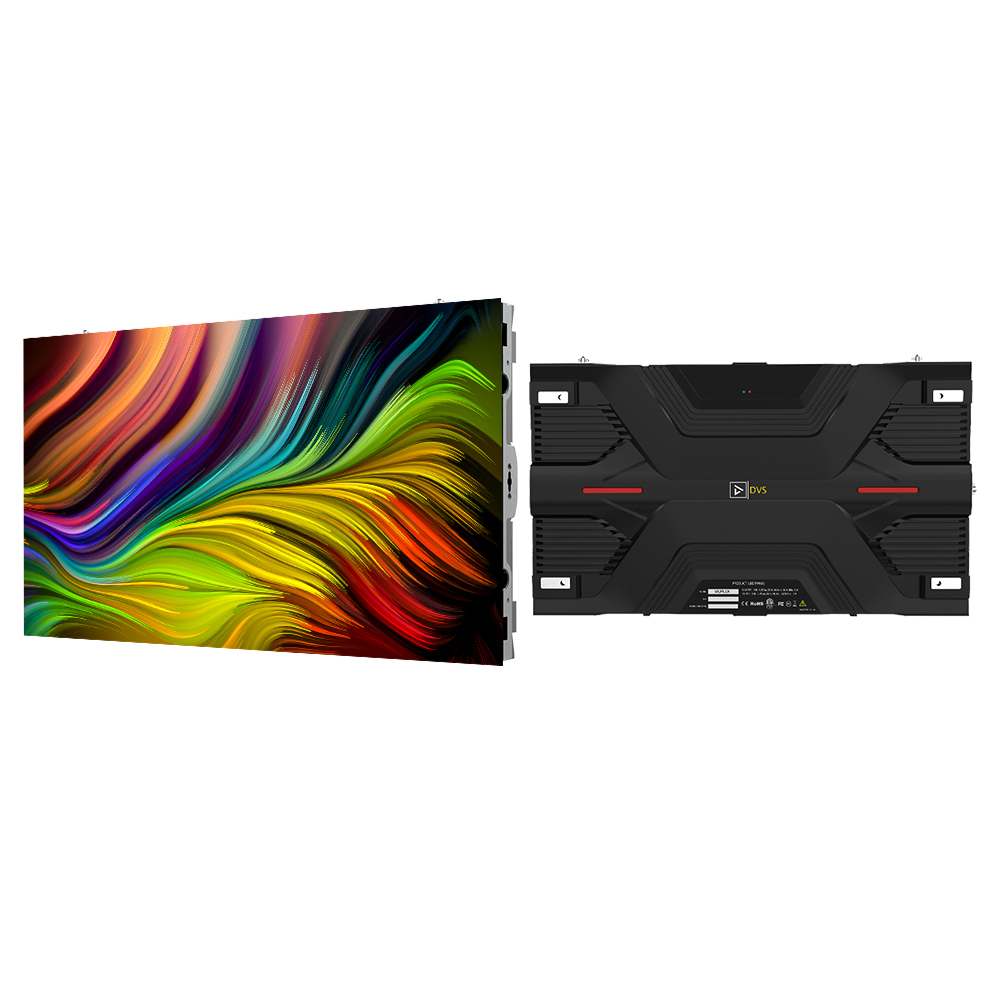

ViuPlex-1.2 COB is a 1.2mm pixel pitch, direct view seamless MicroLED Video wall panel. Its ultra-fine pixel pitch delivers an extremely high pixel density of 480×270 resolution per panel that renders remarkable image detail with virtually no visible pixels. ViuPlex-1.2 allows large-format LED screens to quickly achieve 4K, 8K, and beyond resolutions in a modular format that results in a completely seamless screen with remarkable vibrancy.
ViuPlex-1.2 features advanced Chip-on-Board (COB) MicroLED technology that delivers robust pixel durability for a low-maintenance solution along with ultra-high contrast levels up to 20,000:1 – It standardizes advanced image processing with cinema-grade HDR10/HLG support to deliver a truly immersive visual experience with broadcast-grade performance for an expanded range of markets.
LED Panel Key Features:
- Cinema-HDR+DCI-P3
- Enclosed front serviceability
- Curve & 90-Degree Corners
A minimum order of 8 panels is required. If you need to order less than 8, contact us. If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.
In the Box:
- Viuplex-1.2
Optical:

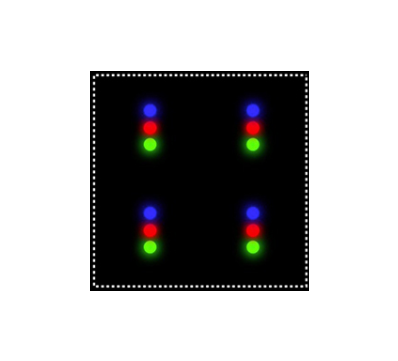

- Pixel Pitch: 1.25mm
- Pixel Density: 480 x 270
- LED Type: COB LED Flip Chip
-
Brightness: 700≥ NITS
- Viewing Angle: 170° H | 160° V
- Grayscale: 22 Bit +/-
- Refresh Rate: 3,840≥ Hz
Power:
- Voltage: 120-240v
- Max Power: 180w / panel
- Avg. Power: 82w
Control:
- Control System: NovaStar | Brompton
- Receiving Card: NovaStar A10S Pro | NovaStar CA50E / Brompton R2 (Optional)
- Supported Inputs: HDMI, DVI, VGA, SDI
- Frame Rate: 60hz
Tech Specs
Physical:
Length: 600 mm
Width: 38 mm
Height: 337.5 mm
Weight: 14 lb
Electrical
Voltage Range: 120-240v
Maximum Wattage: 180w / panelw
Power Cable Connector - Fixture Side: IN-POWER IN/THRU
Warranty
Warranty: 5 Years
View full details
Have a question?
Notified by email when this product becomes available
$1,498.00
