Core 5X1 ILS

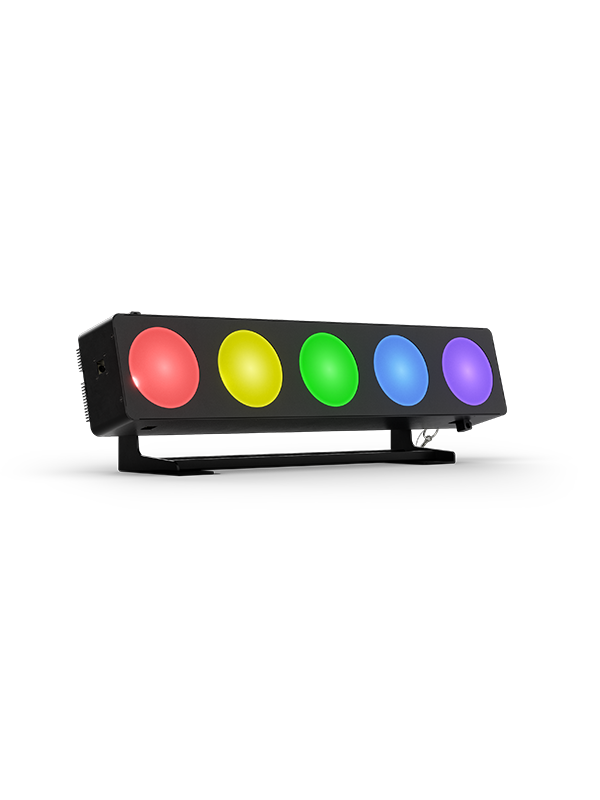

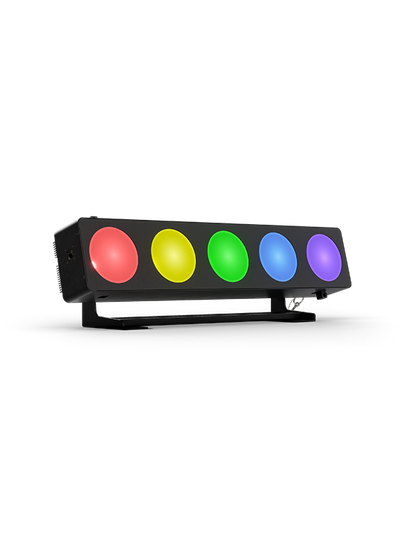

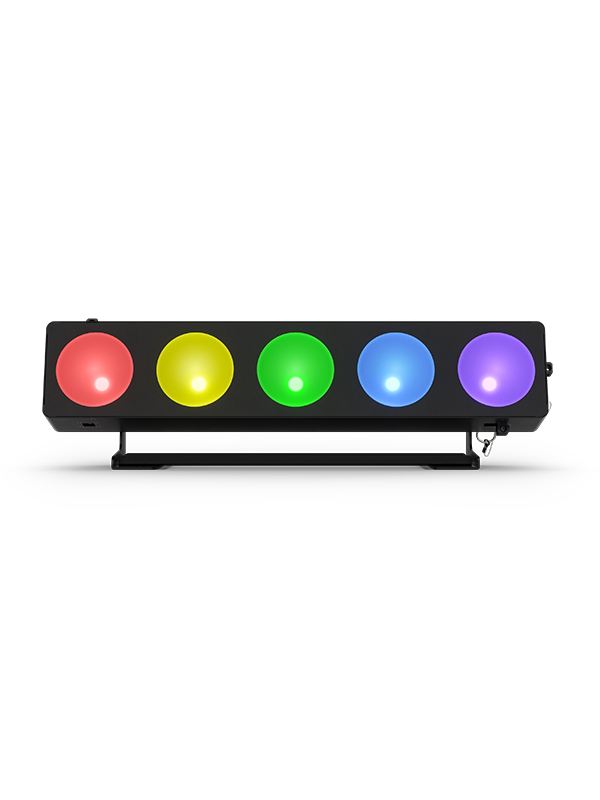

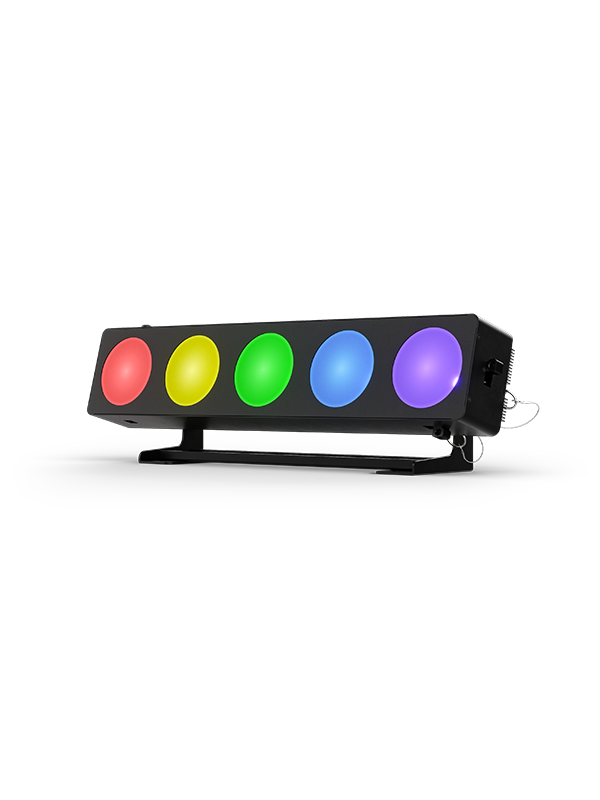

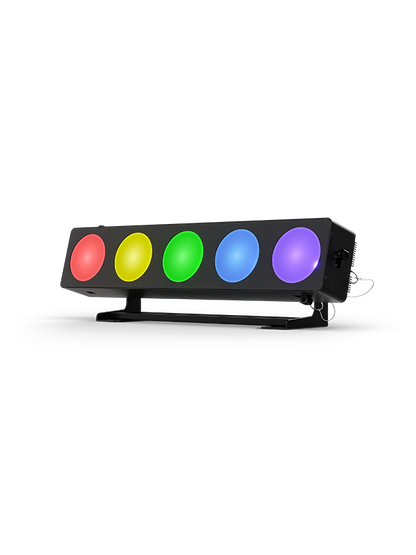

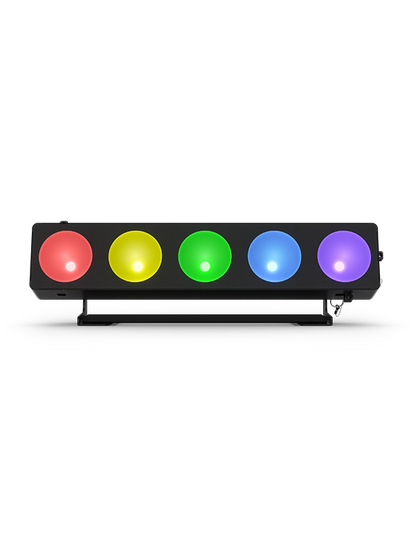

The CHAUVET DJ Core 5X1 ILS is a multi-purpose COB effect light for pixel mapping, chase effects, blinder bursts, and color washes.

From the Manufacturer

Core 5×1 ILS projects smoothly saturated color with COB technology and a large reflector design ideal for bringing the most natural color tones to live setups. Create custom shapes with built-in tool-free connecting hardware. Add a D-Fi™ USB (sold separately) to wirelessly sync Core 5×1 ILS with multiple ILS fixtures of different types. Floor mount for a perfect uplight or attach multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts or color washes.

Features

• Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light
• Attach multiple fixtures together using the built-in, toolless connecting hardware
• ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)
• Connect up to 6 fixtures together vertically using the toolless linking hardware
• Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
• Withstand the harshness of traveling from gig to gig with a robust housing
• Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave

Specifications

Light Source & Output

• Light Source: 5 LEDs (quad-color RGB+WW) 35 W (1.2 A), 50,000 hours life expectancy
• Lumens: 2,875
• Illuminance: 953 lux @ 2 m
• Beam Angle: 54°
• Field Angle: 75°
• Strobe Rate: 0 to 20 Hz

Control

• DMX Channels: 4, 8, or 22

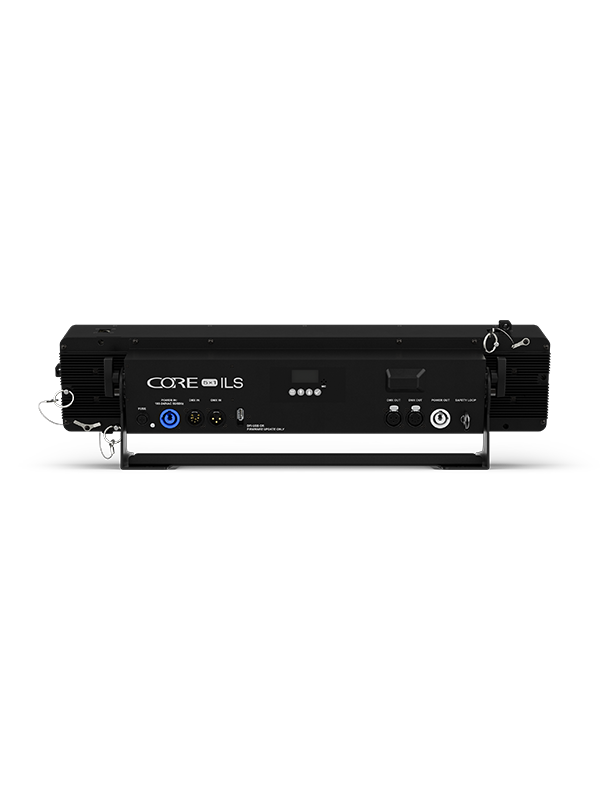

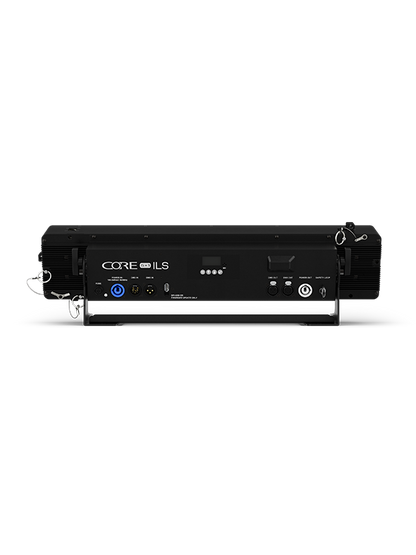

• DMX Connectors: 3- and 5-pin XLR
• Optional Controllers: ILS Command, RFC, RFC-XL

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current (120 V): 120 W, 1.8 A @ 120 V, 60 Hz
• Power and Current (230 V): 113 W, 1.1 A @ 230 V, 50 Hz
• Power Linking: 6 units @ 120 V; 10 units @ 230 V
• Cable Length: 5 ft (1.52 m)

Dimensions

• Size: 23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
• Weight: 11 lbs (5 kg)
• Bracket Mounting Hole: 13 mm

Approvals

• Approvals: CE, RoHS

What's in the Box

• Core 5X1 ILS
• Power cord
• PowerCON to bare end (EU only)
• Quick Reference Guide
