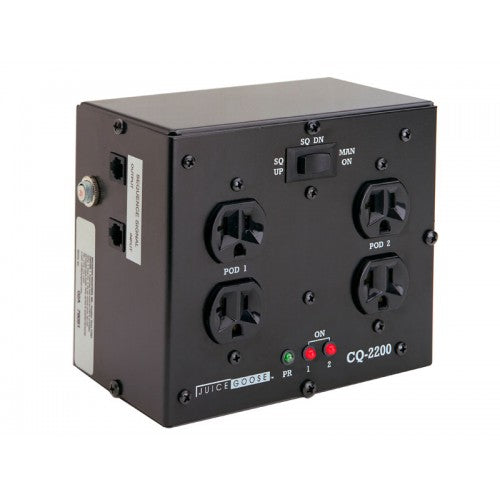

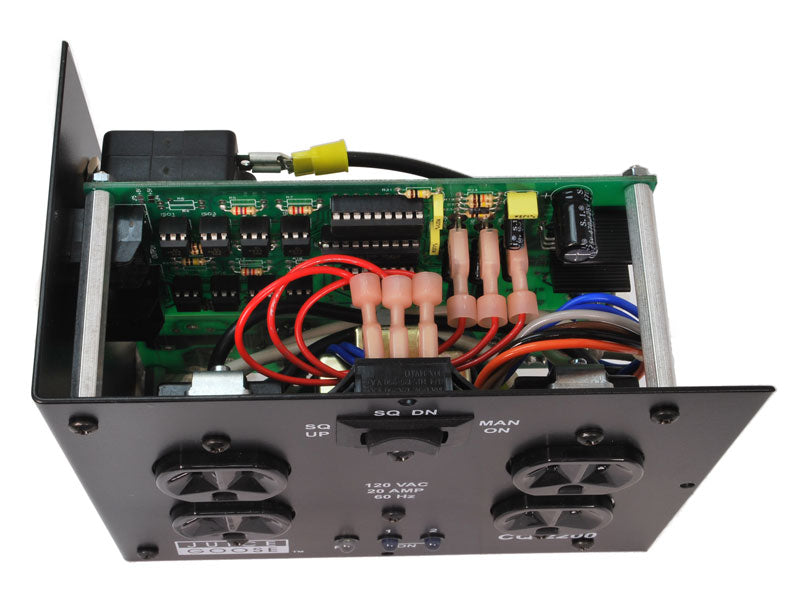

The Juice Goose CQ2200 is a dual-sequenced 20 AMP Power Distribution System with remote control capability.

From the Manufacturer:

When is more than one sequence event needed?

Whenever it's a good idea to reduce the start-up current surge on a single circuit. That's why the CQ-2200 has 2 sequence events...and why it's so popular.

Some amplifiers may be able to operate in tandem on a single 20 amp circuit, but would overload the circuit if turned on at the same time. The CQ-2200 stages the turn-on thereby reducing the required electric power service.

For smaller systems the CQ-2200 can act as a stand alone sequencer, activating front end equipment on the first POD and the amplification on the second.

Because the CQ-2200 can be controlled by a contact closure, installation is quick and requires no expensive accessories. Remote activation is very simple and convenient.

So, the CQ-2200 offers several attractive features in a very economical, easy to install and easy to use package. The CQ-2200 is available in an isolated ground version (CQ-2200-IG).

Features:

• General Description

• The Juice Goose CQ-2200, along with the other products in the CQ Series, provides a versatile and powerful means of remotely activating AC power in a sequenced array for application to both sensitive and high amperage equipment. CQ Series products need no additional controllers. Each contains the circuitry to be activated by a simple contact closure and to perform in coordination with other CQ devices. All power down sequences are exact reversals of the power up sequences.

• Operation

• The CQ-2200 features two duplex receptacles, each with its own preset turn on and off timing. When used to power amplifiers each of the CQ-2200’s sequence events will be triggered after a previous CQ device has completed its sequenced turn on. Because the CQ-2200 activates its outlets in two stages it is useful as a stand-alone sequencer, being triggered by a contact closure or a Juice Goose RC-5 key switch. It can also increase the number of amplifiers powered on a single circuit without risk of inrush tripping a circuit breaker.

• Control Line Connection

• All CQ products can be easily controlled by way of 8 wire, RJ-45 cable. (Consult the CQ Series Owners Manual before assembling the cable.) Each CQ has a Sequence Signal Input and Output connector on the chassis. This communication link allows any CQ device to be installed at any stage in a power sequencing system and act as a power sequencer or controller. There is no limit to the number of CQ devices that can be connected in this manner. Because the sequence process is controlled with a latching contact closure the system can be activated with a custom mounted single pole switch, a relay, the control switch on the CQ device itself or a Juice Goose RC-5 key switch control accessory. It can also be activated with controllers from Crestron, AMX and other manufacturers.

• Controls and Monitors

• The CQ-2200 feature a three position switch on the front of the chassis. This switch is active only if there is no control cable on the Sequence Signal Input connector. When active, this switch allows the unit to sequence up or sequence down and to control the sequencing of any unit connected to the Sequence Signal Output connector. The Manual On switch position allows the CQ-2200 to be manually operated, overriding the control circuit in the unlikely event of a fault or failure. Lights on the front of the chassis allow monitoring of the unit operation. The PROCESSOR light will blink to indicate the control processor on the unit is functioning. The POD lights are illuminated as a result of contact closure by the CQ relays, indicating that actual relay closure has occurred.

Specifications:

• Chassis

• 16 gauge steel – mounts through holes in back box

•  Dimensions

• 5.5”H x 6.4”W x 3.75”D

• Weight

• 5 lbs

• Circuit Breaker

• 20A thermal on side of the chassis

• Relay Current Rating

• 30A

• Number of Sequence Events

• Two

• Power Input

• Hard wire through strain relief on back box

• Power Output, NEMA 5/20R

• Four

• Input Voltage

• US standard (120 VAC @60Hz)

• Signal Connections

• RJ-45, eight wire cable

• Monitor Features

• Monitor lights correlate to processor and relay operation
