Creator BSW 1200

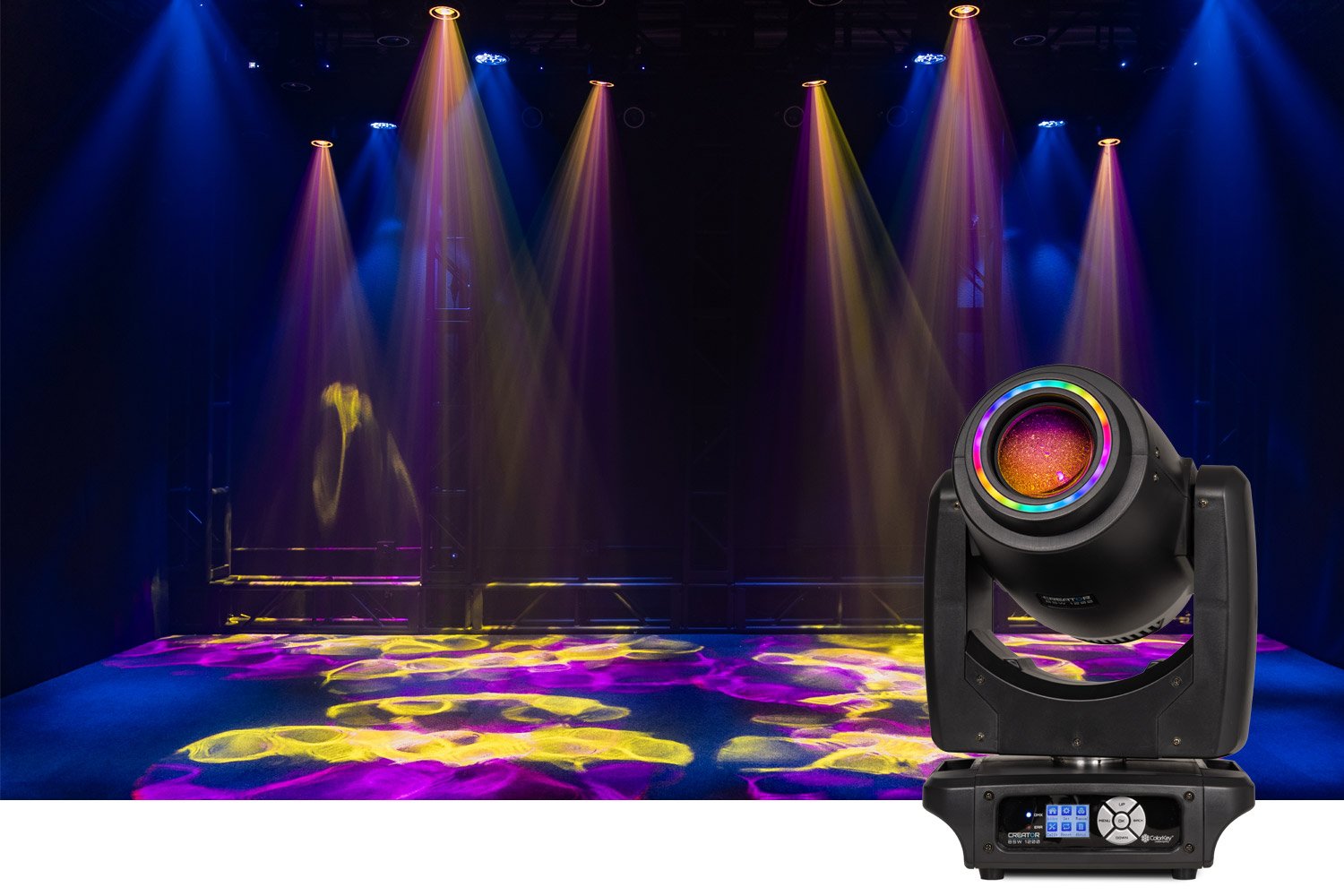

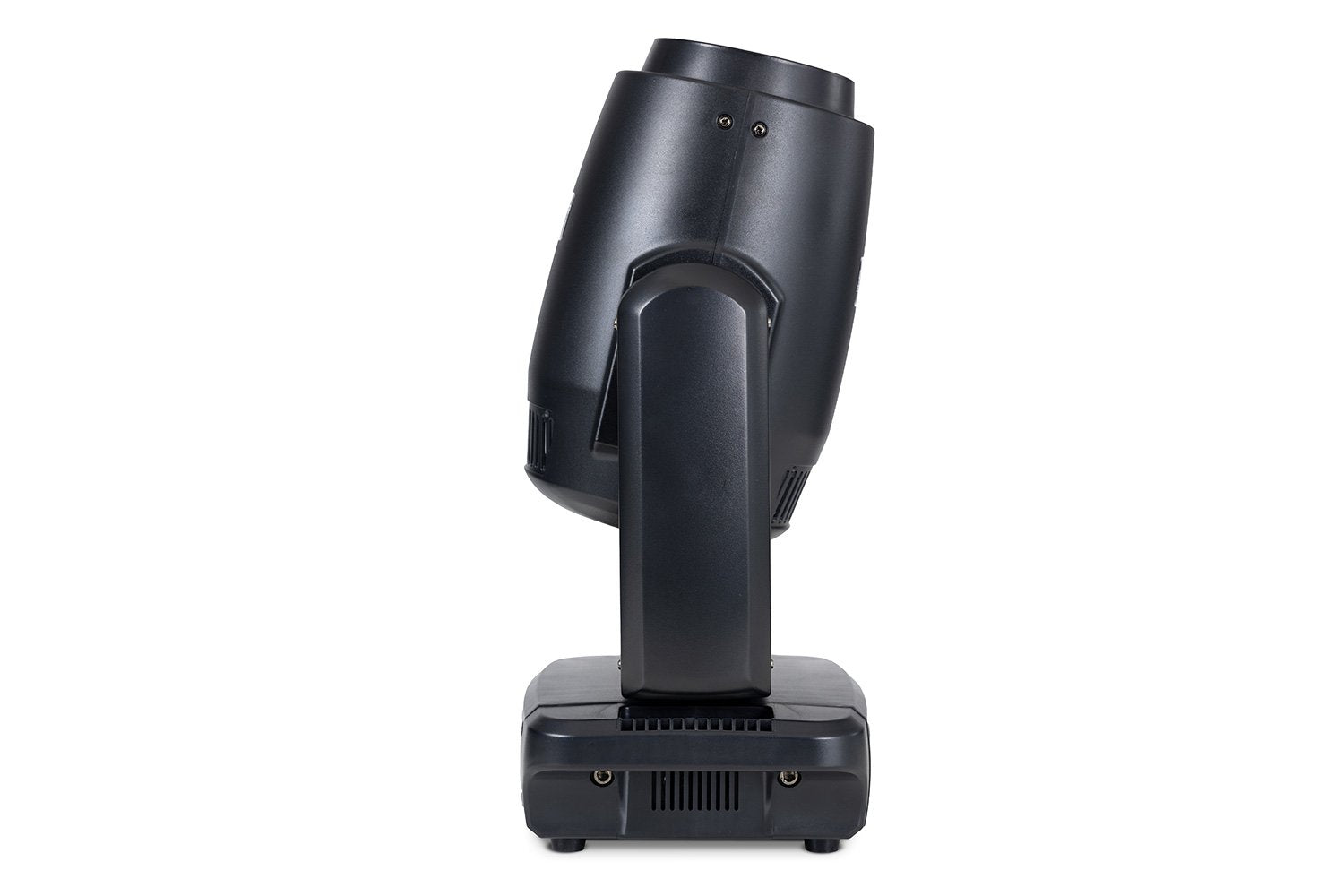

The Colorkey Creator BSW 1200 is a moving head light offering a versatile combo of beam, spot, and wash functionality, perfect for those who want more options from fewer fixtures in a rig.

From the Manufacturer:

The ColorKey Creator BSW 1200 is a versatile hybrid moving head luminaire blending beam, spot, and wash functionality. Designed for lighting designers who want flexibility from fewer fixtures, the BSW 1200 can replace multiple types of lights in a rig.

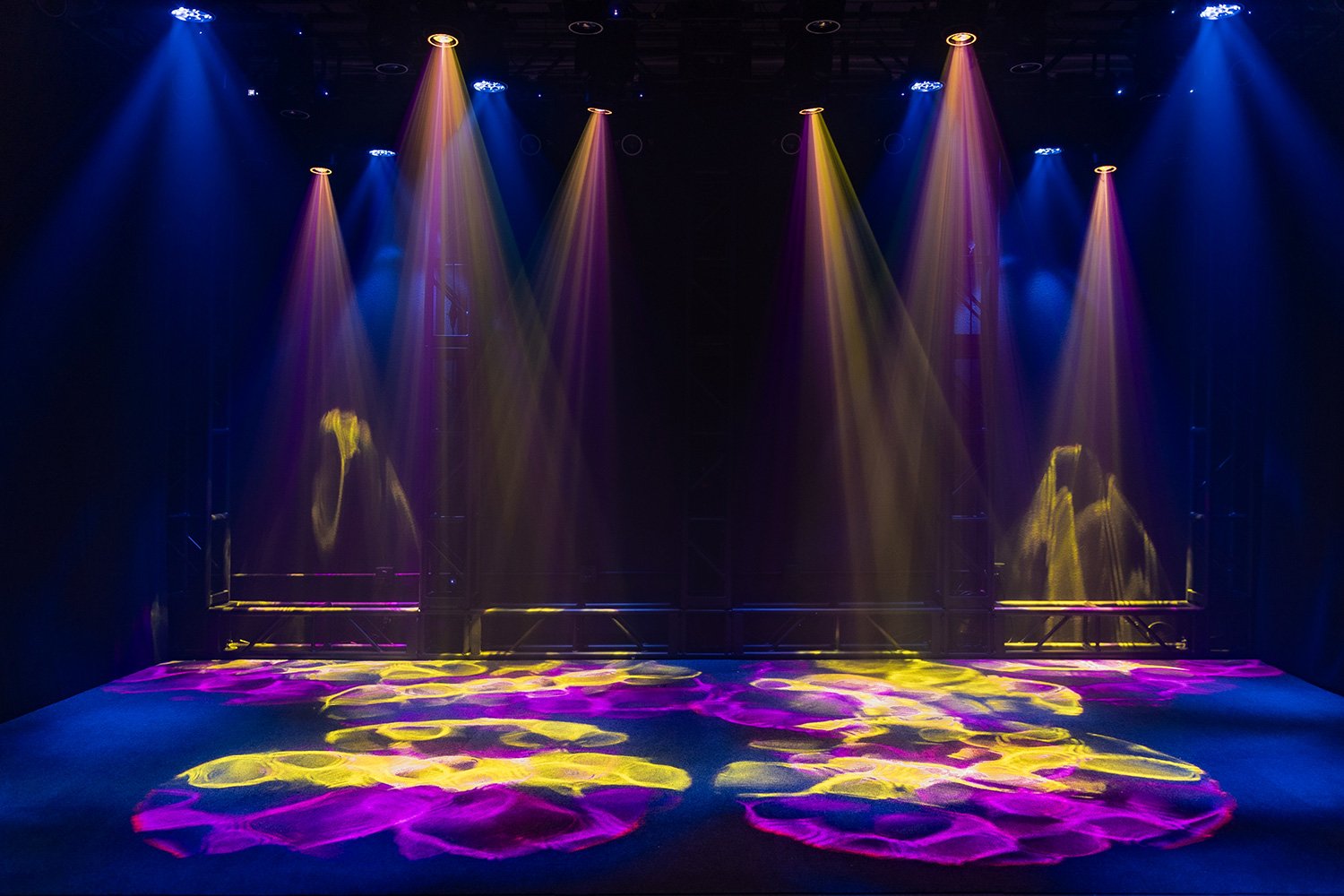

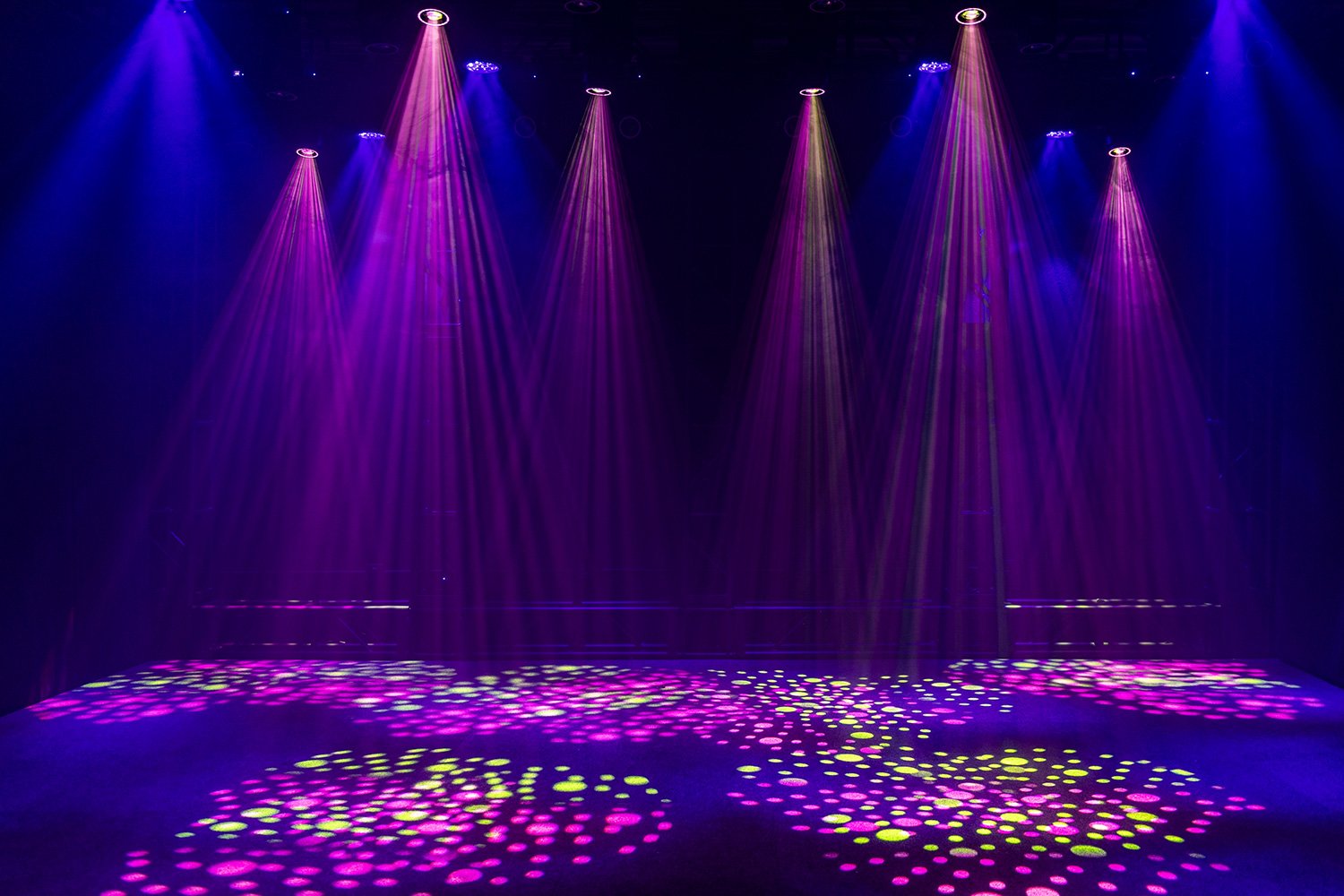

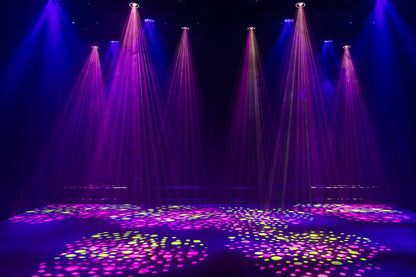

Produce stunning looks and effects with eight colors plus split-colors, two gobo wheels featuring 12 static gobos and seven rotating gobos (including a textured glass gobo), and a three-facet prism. A zoom adjusts the beam angle from a 7˚ beam to a 19˚ spot, while the motorized focus transitions from sharp edges to smooth washes.

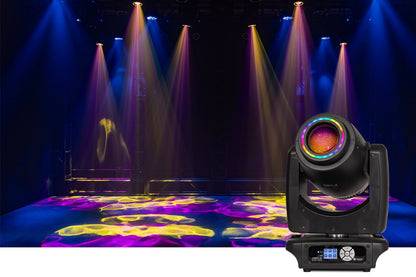

As part of the Creator Series, the BSW 1200 sports a multicolor halo around the edge of the beam, which synchronizes with other Creator fixtures and includes pre-programmed chases and patterns, ensuring seamless integration and visual consistency across your setup.

Frame Set position control mode keeps the light beams from going where you don’t want them, like the back wall or your audience’s eyes.

Designed for events and permanent installs alike, all ColorKey Creator Series fixtures feature quick-release brackets and PowerCon power linking to simplify setup and teardown. A heavy duty flight case is also available separately.

Features:

• 200W LED hybrid moving head luminaire blending beam, spot, and wash functionality.
• 10 colors plus split-colors, two gobo wheels featuring 12 static gobos and seven rotating gobos (including a textured glass gobo), and a three-facet prism.
• A zoom adjusts the beam angle from a 7˚ beam to a 19˚ spot, while the motorized focus transitions from sharp edges to smooth washes.

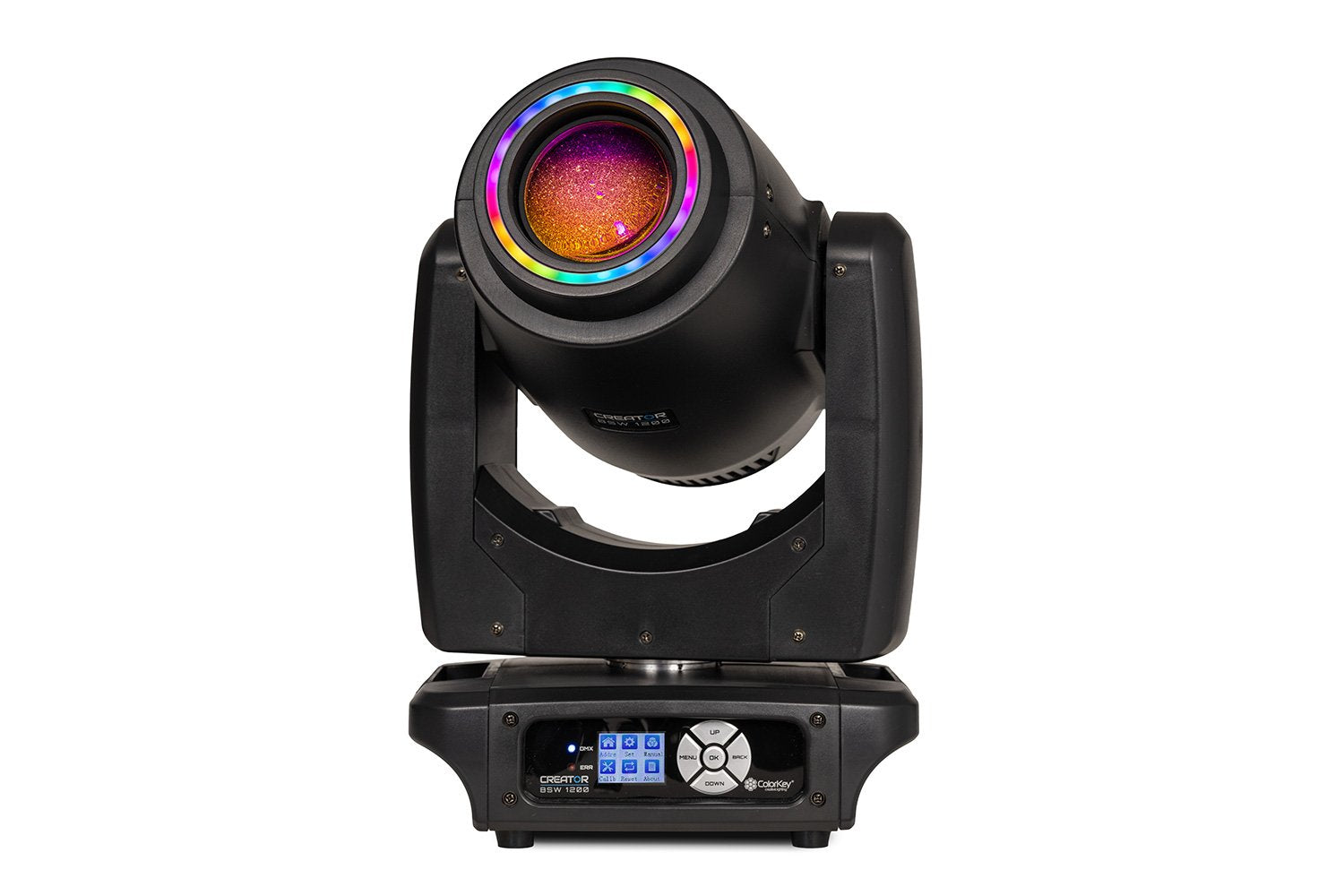

• RGB halo around the beam synchronizes with other Creator Series fixtures with pre-programmed chases and patterns.
• Create versatile light shows with independent dimmer and strobe control of beam and halo.
• Precise light direction is made effortless with Frame Set position control right out of the box. Frame Forward keeps your light focused on the party – not the back wall – while Frame Up limits tilt to keep beams out of your audience’s eyes.
• DMX Hold keeps current values in case of signal loss.
• Motorized focus ensures sharp gobos at nearly any distance.
• A frost filter diffuses the beam, reducing its intensity and harshness.

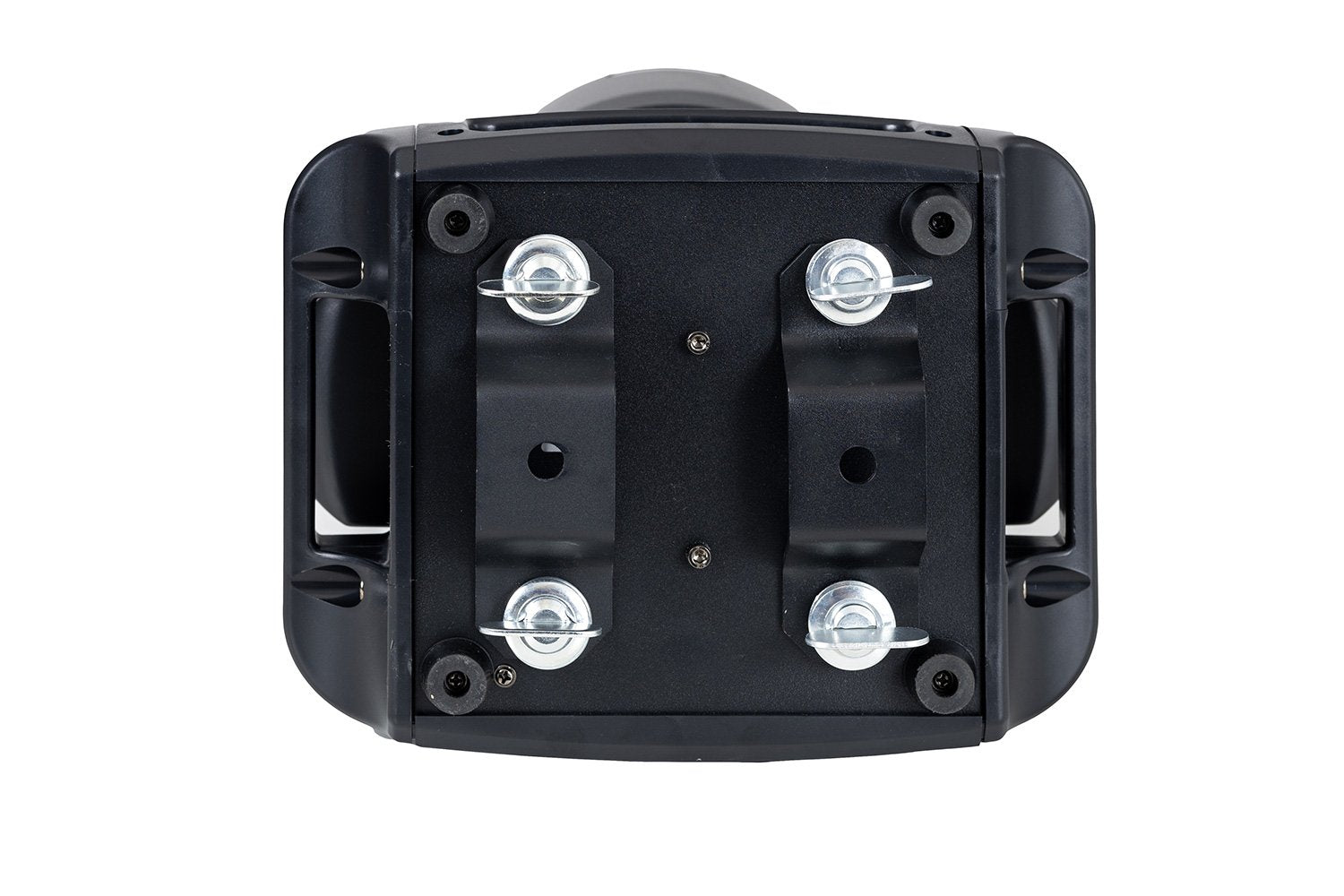

• Includes dual quick-releases bracket to simplify setup and teardown.
• Color LCD display for intuitive navigation.

Specifications:

• Light Source: 200 Watt White LED
• Halo: 20pcs RGB LEDs, with rich built-in dynamic effects
• Color Temperature: 8,000K
• Beam Angle: 7° – 19°
• Brightness:
  • 7° – 66,500 Iux @ 2 meters
  • 19° – 9,100 lux @ 2 meters
• Color Wheel: 10 colors + open, split colors

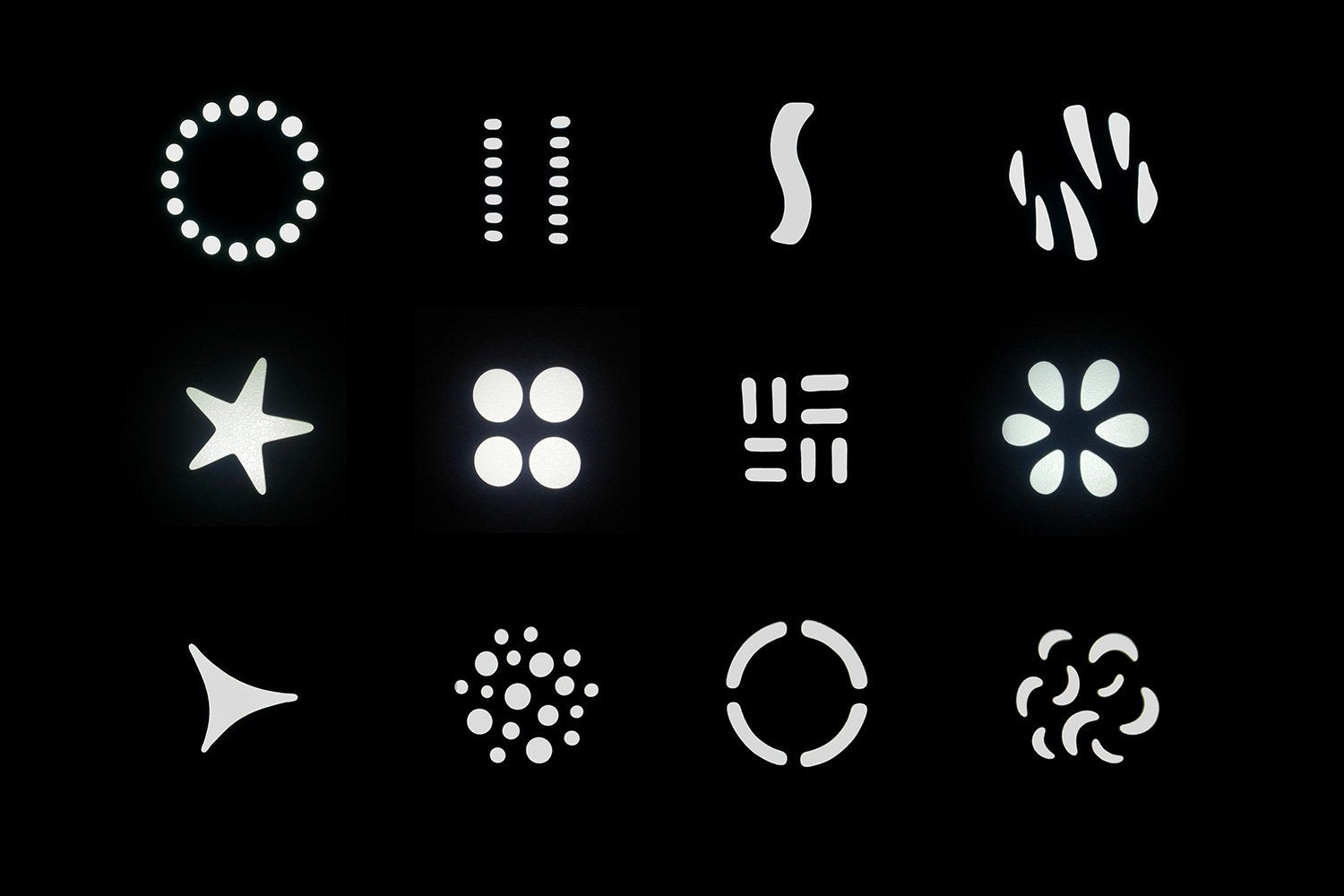

• Static Gobo Wheel: 12 gobos + open

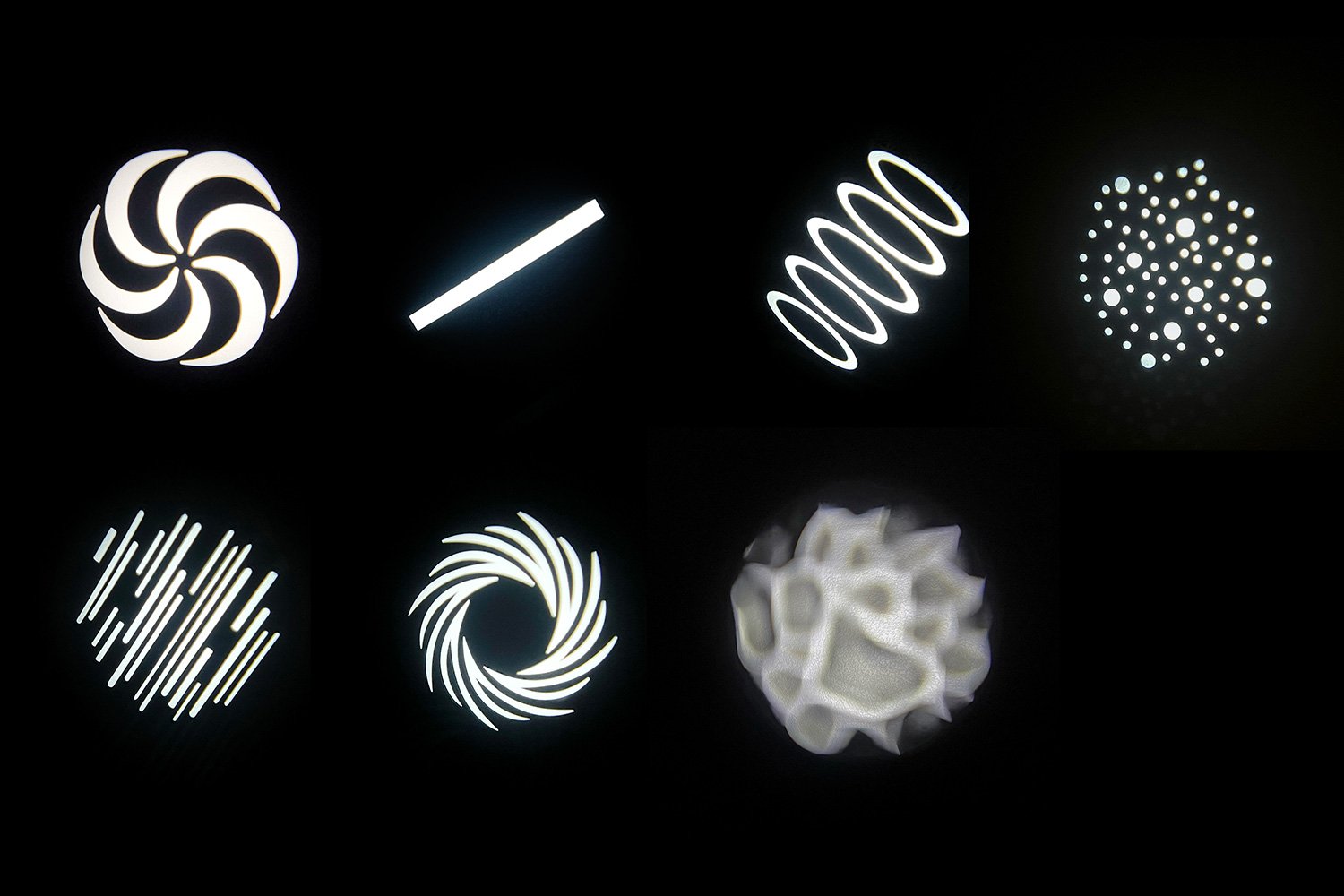

• Rotating Gobo Wheel: 7 gobos + open: w textured glass gobo
• Prism: 3-facet prism
• Focus: Motorized
• Frost filter: 0-100%
• Strobe: 1-25 Hz, Random Strobe, Pulse Strobe effect
• Dimmer: 0-100% linear dimmer
• Pan: 540° with fine adjustments
• Tilt: 270° with fine adjustments
• DMX Channel: 24 CH
• Control Mode: DMX512 / Master-slave / Auto / Sound Active
• Display: 1.77-inch LCD Display

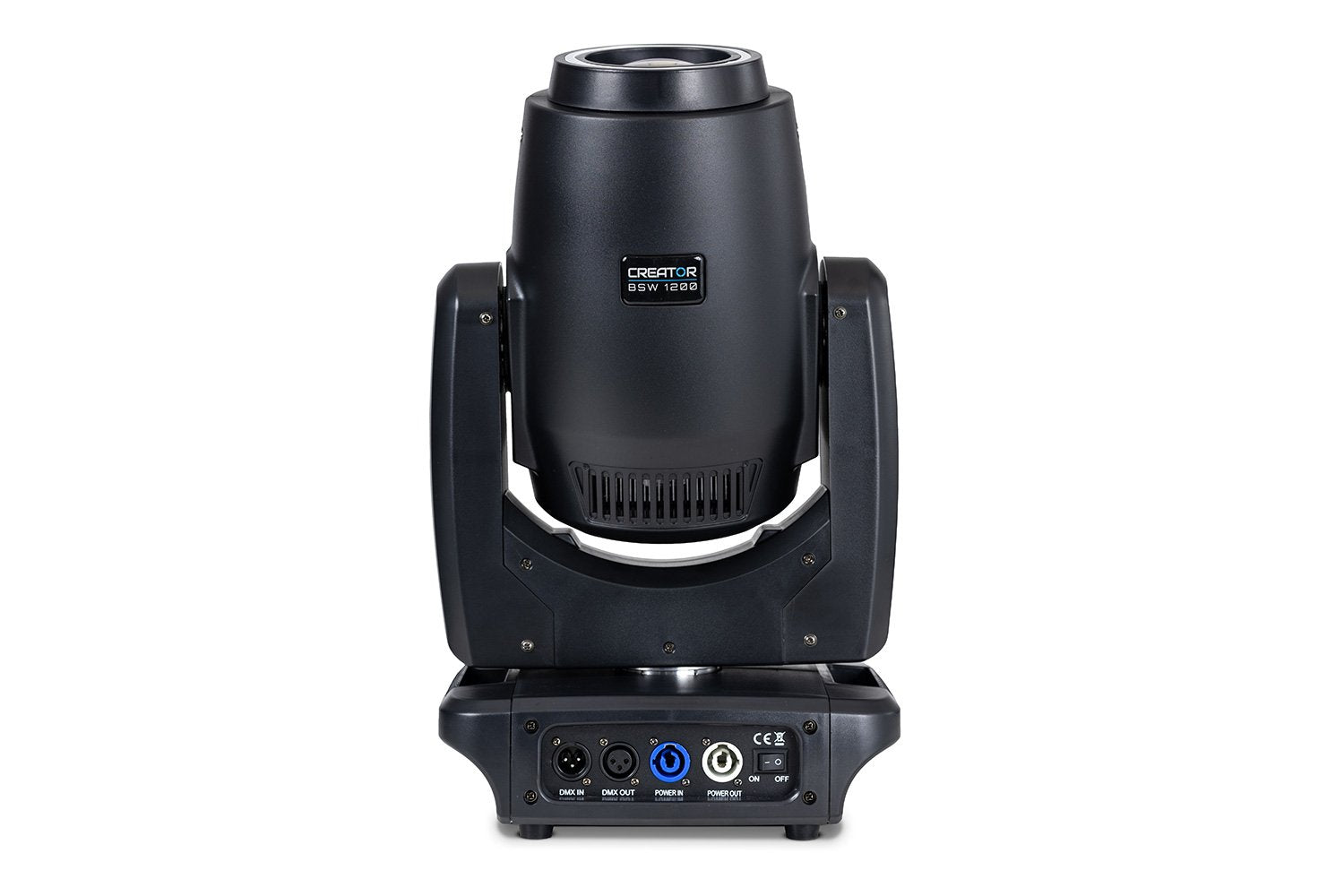

• Power Connection: PowerCon Locking in/out
• DMX Connectors: 3-pin DMX in/out
• LED Lifetime: 50,000 Hours
• Max Power Consumption: 250 Watts
• Voltage: AC100-240V, 50/60 Hz
• Size: 28 x 21 x 47 cm. (11 x 8.3 x 18.5 in.)
• Weight: 9.5 kg. (20.9 lb.)
