Creator BX12 Wash

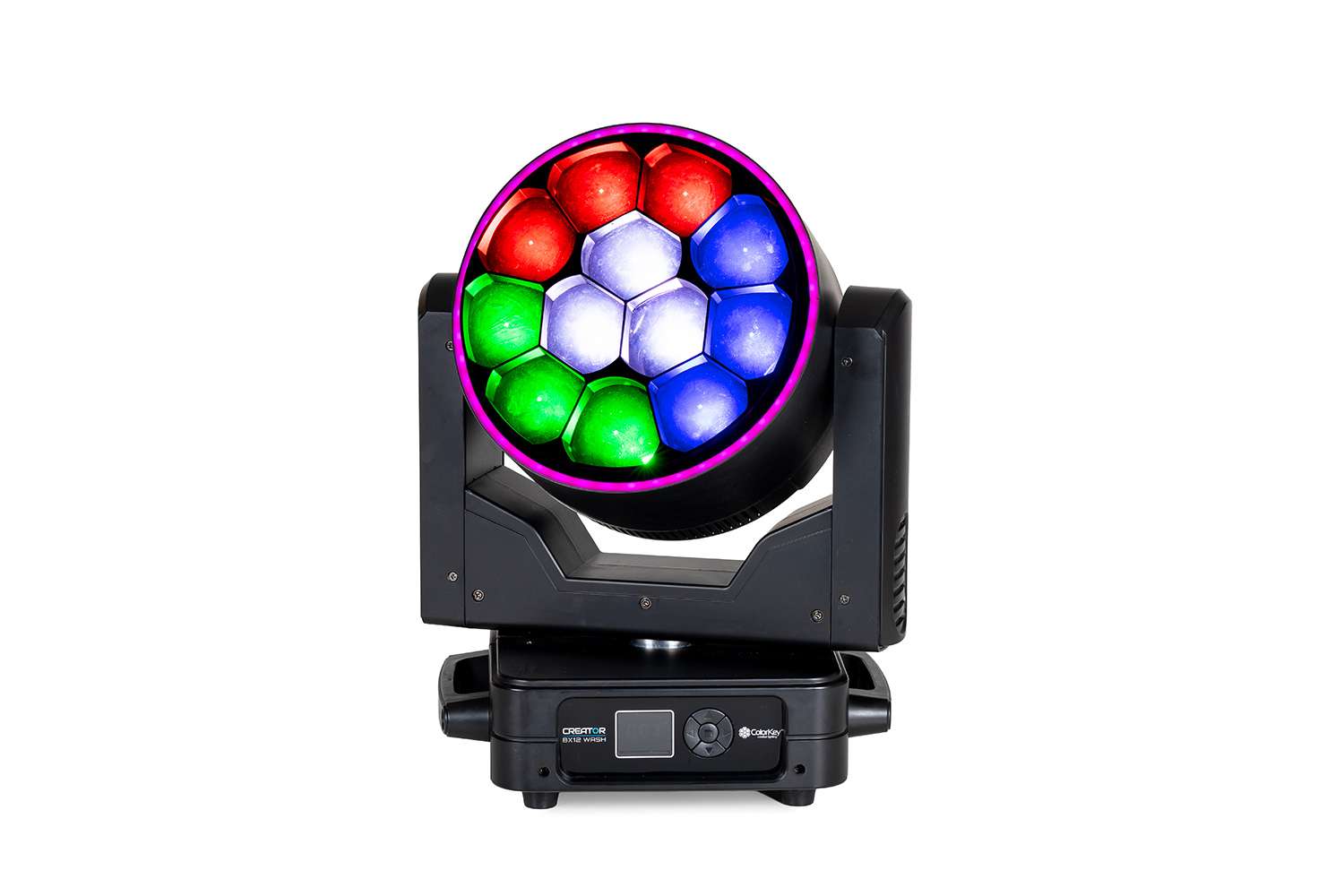

The ColorKey Creator BX12 Wash is a 480W LED moving head Bee-Eye wash luminaire with motorized zoom, continuous lens rotation, and individual pixel control for dynamic stage and event lighting.

From the Manufacturer

The ColorKey Creator BX12 Wash is powered by twelve 40W RGBW LEDs and functions as both a high-output wash light and a pixel-driven beam effect fixture. At wide zoom, it delivers a lush, even wash perfectly suited for bathing stages or audiences in rich color. Zoom in tight and the individual pixel segments shift to producing crisp, concentrated rays that spin, chase, or dance independently — creating striking mid-air visuals. The front lens cluster rotates continuously in both directions, generating mesmerizing flower or kaleidoscope-style effects that add motion and depth to any look.

As part of the Creator Series, the BX12 features ColorKey's UHX™ (Unified Halo Experience) RGB halo surrounding the lens cluster, which synchronizes with other UHX-compatible fixtures via pre-programmed chases, patterns, and color mixing for a cohesive, multi-fixture visual identity. Frame Set position control keeps beams precisely where you want them — Frame Forward prevents light from spilling onto the back wall, while Frame Up limits tilt to protect audience eyes. PowerCon power linking and a quick-release bracket simplify setup and teardown for both touring events and permanent installations.

Features

• 480W LED moving head Bee-Eye luminaire with 12 x 40W RGBW LED sources
• Motorized zoom transitions smoothly from a wide soft wash to a narrow concentrated beam effect
• Continuous bi-directional lens cluster rotation creates flower and kaleidoscope-style effects
• Individual pixel control allows each LED segment to be assigned its own color and intensity for chase patterns, color waves, and animated effects
• Includes 50 preset pixel patterns for stunning chases and looks without custom pixel mapping

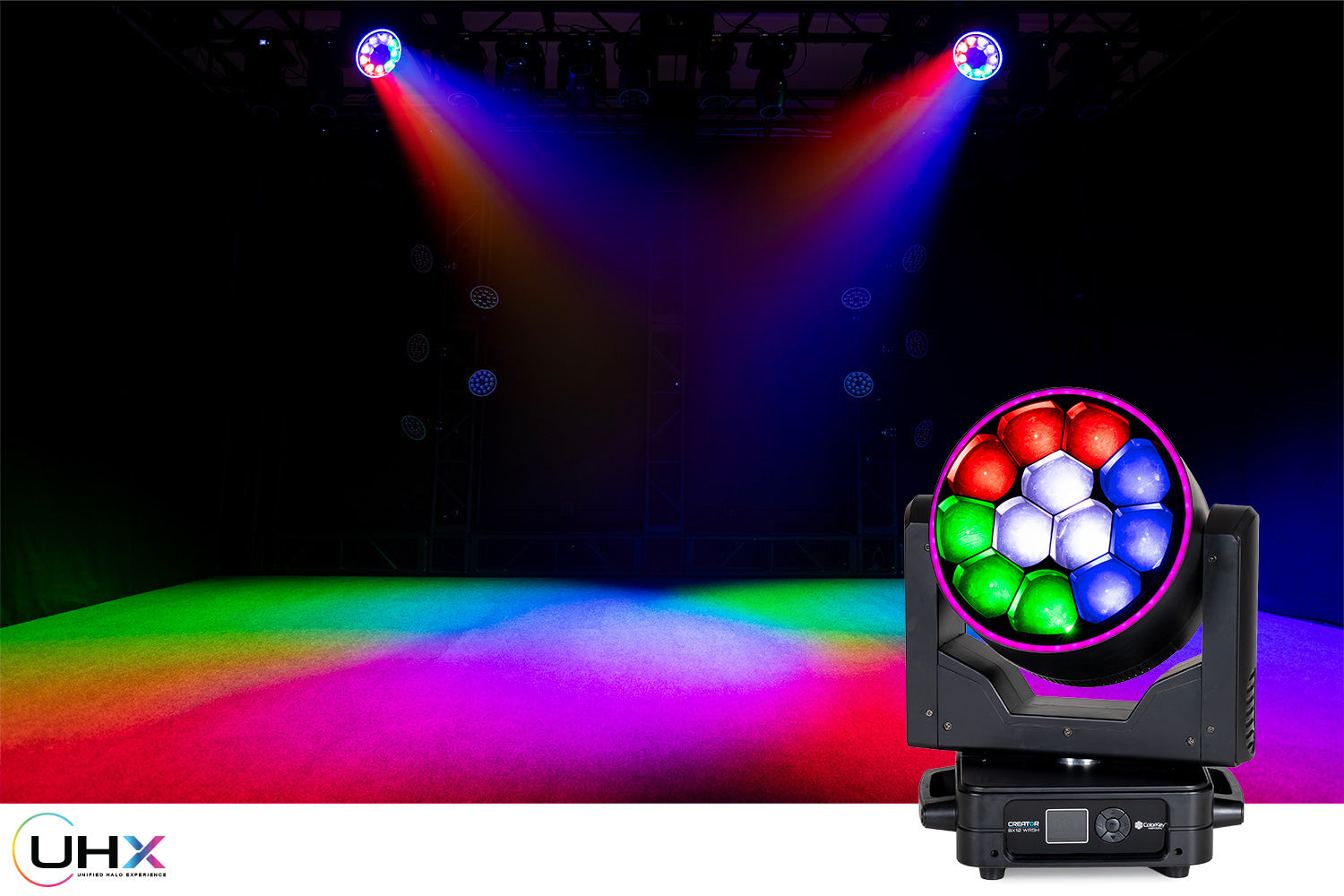

• UHX™ (Unified Halo Experience) RGB halo with 84 x 0.2W RGB LEDs synchronizes with other Creator Series and UHX-compatible fixtures
• Independent dimmer and strobe control for both wash output and halo
• Frame Set position control modes: Frame Forward prevents back-wall spill; Frame Up limits tilt to keep beams out of audience eyes
• DMX Hold retains current values in the event of signal loss

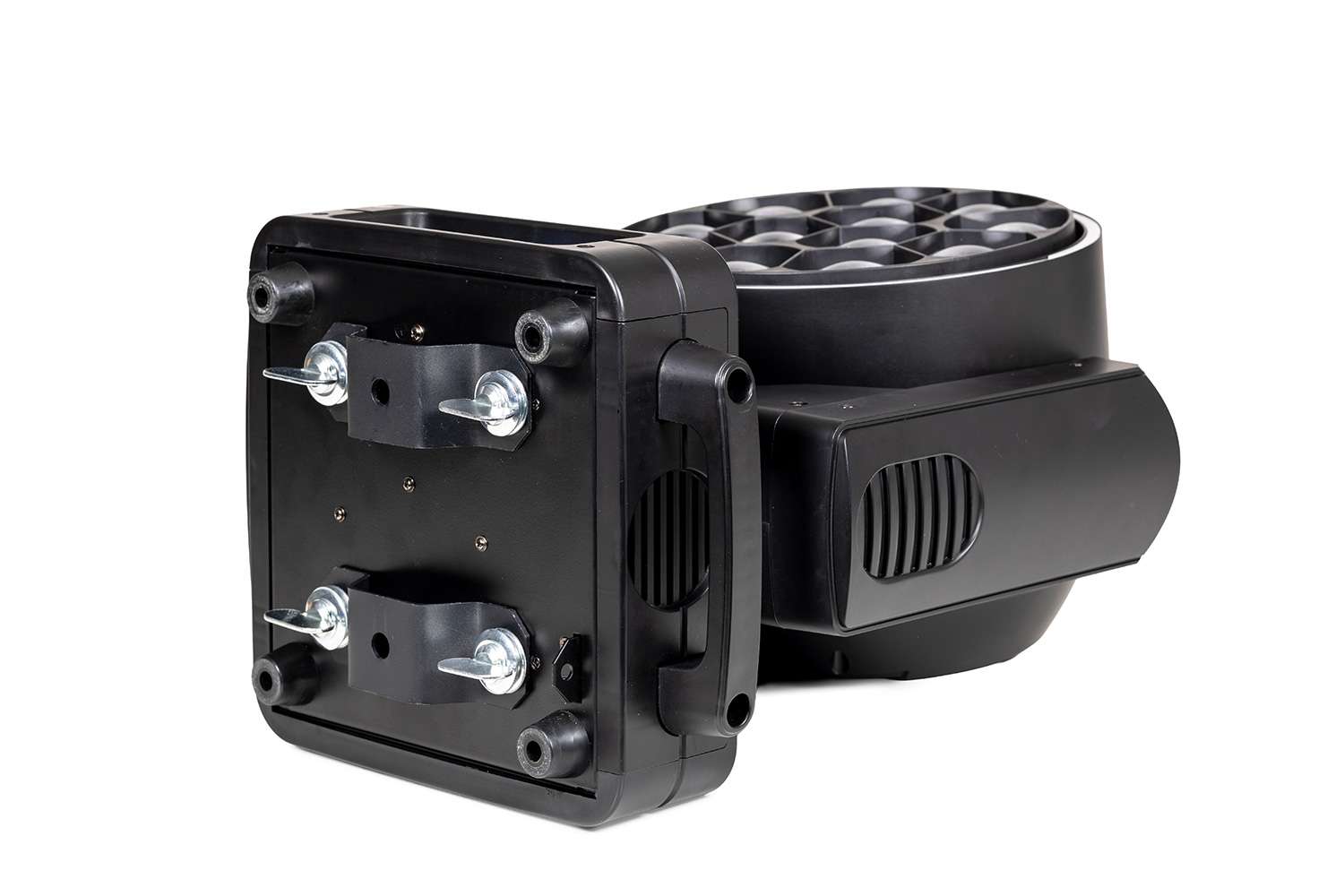

• Quick-release bracket for fast setup and teardown
• 1.77-inch color LCD display for intuitive menu navigation
• PowerCon locking in/out for reliable power linking
• RDM (Remote Device Management) supported
• Compatible optional flight case available separately (CKU-9064)
• Recommended use: Concert and live event production, DJ performances, club and venue lighting, mobile entertainment, permanent installations

Specifications

Optical

• Light Source: 12 x 40W RGBW LEDs
• Halo: 84 x 0.2W RGB LEDs
• Color Temperature: 2,800K – 8,500K
• Zoom Beam Angle: 5° – 25°
• Wash Field Angle: 30°
• Illuminance (5°): 111,700 lux @ 2 meters
• Illuminance (18°): 17,600 lux @ 2 meters
• LED Lifetime: 50,000 hours

Dynamic Effects

• Strobe: 1–30 Hz
• Dimmer: 0–100% linear
• Preset Patterns: 50

Movement

• Pan: 540° + fine
• Tilt: 250° + fine

Control

• DMX Channels: 25 / 73 CH
• Control Modes: DMX512, Auto, Master-Slave, Sound Active, RDM
• Display: 1.77-inch color LCD

Electrical

• Max Power Consumption: 500W
• Voltage: AC 100–240V, 50/60 Hz

Connections

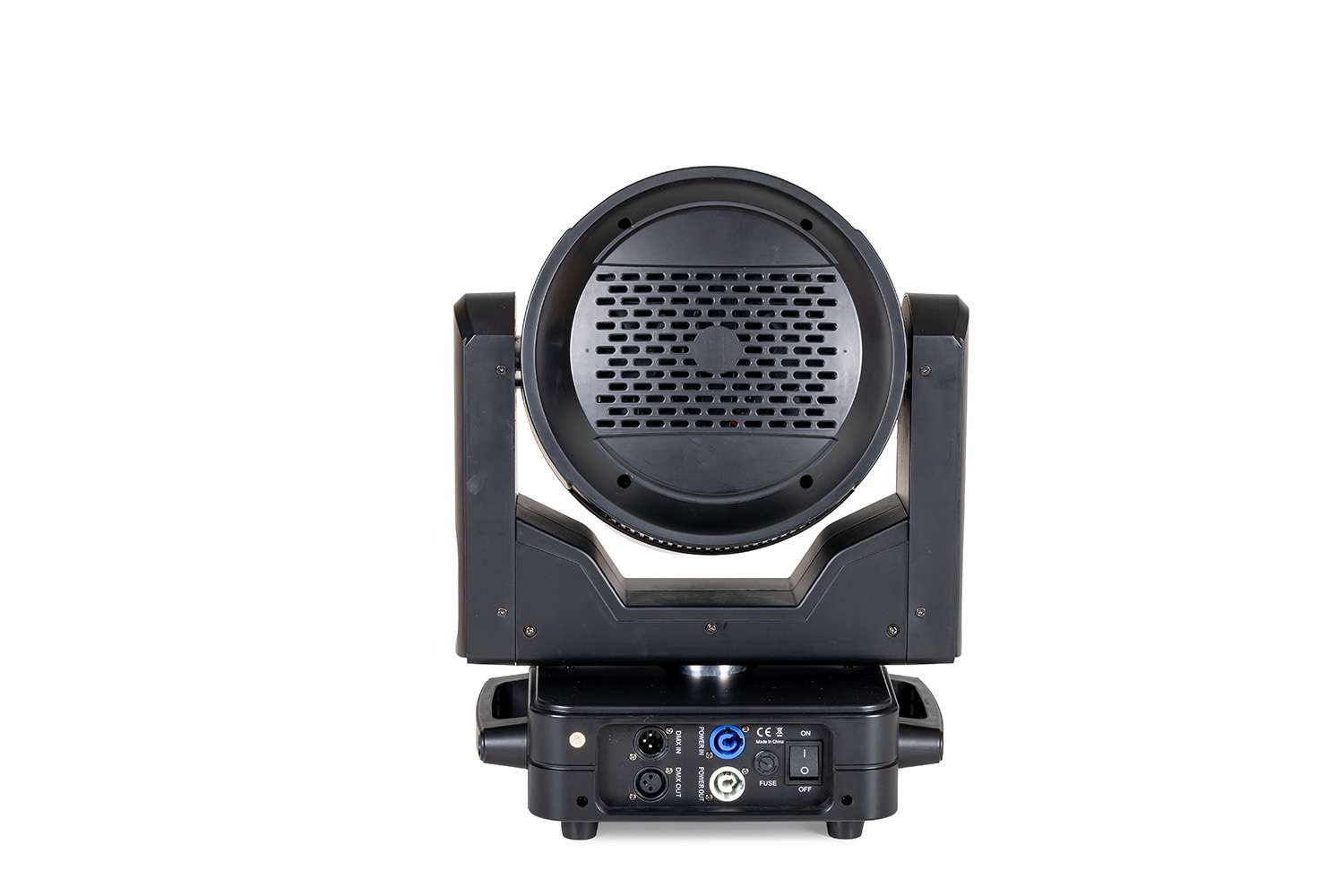

• Power: PowerCon locking in/out
• DMX: 3-pin DMX in/out

Physical

• Dimensions: 13.2 x 9.8 x 15.9 in (33.5 x 25 x 40.5 cm)
• Weight: 29 lbs (13.15 kg)

What's in the Box

• ColorKey Creator BX12 Wash
• Quick-release mounting bracket
• Power cable
