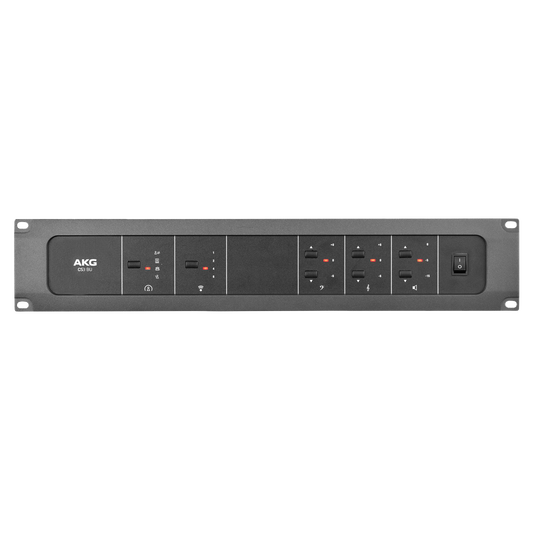

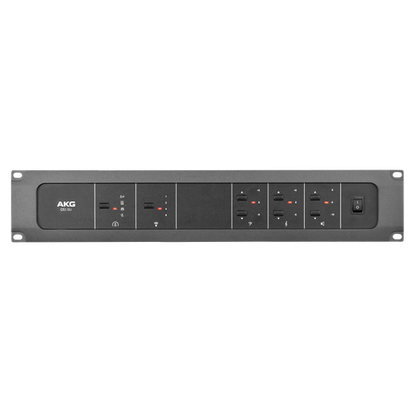

CS3 Base unit

The AKG CS3 plug ‘n play conference system easily manages small to mid-size meetings with simple setup.

From the Manufacturer:

The CS3 BU is the base unit for the CS3 conference system and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS232 interface to connect an optional camera control system. The CS3 BU can even work in a stand-alone mode in four selectable operating modes offering maximum flexibility in conference management. With the NOM limitation function, the maximum number of active stations can be programmed to 1, 2, 4 or 6 simultaneous open microphones.

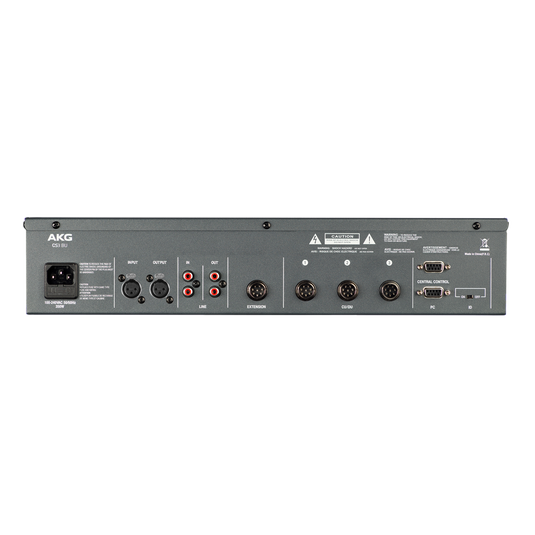

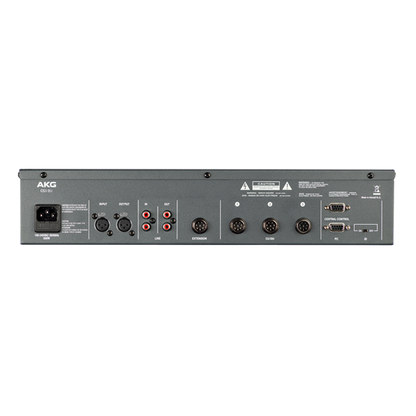

The CS3 combines easiness in setup and use with professional AKG audio quality. The modern and elegant design fits into any meeting room. Reliability and ruggedness are two of the main features of the system. The system is modular with different gooseneck options. The Base Unit connects to all relevant devices like PA, recording, external audio sources and camera control systems. Different working modes enable free or controlled speech, as needed.

Features:

• All in one conference controller: For discussion systems of up to 60 stations per base unit
• Four selectable operating modes: For flexible conference mansgement
• Connects to all relevant devices: e.g. PA, recording, ext. audio and camera control systems
• Compact 19” housing: For easy rack mounting

Specifications:

• Power Supply: SMPS 100‐240V (50Hz / 60Hz) 3A
• Static Consumption: 13W
• Nominal Power Consumption: 320W
• Output Power:  ≤90W / 24V each way
• Mode: Balanced / Unbalanced
• Frequency Response: 50Hz ~ 20kHz
• S/N: >80dB
• Harmonic Distortion: <0.5%
• Harmonic Distortion at Overload: <1%
• Crosstalk Attenuation (1kHz): >50dB
• Dimension: 482L x 281W x 88.4H (mm)
• Weight: About 5.2kg
• Operating Temperature: 0°C to 40 °C at 95% relative humidity (noncondensing)
