CS3 CU

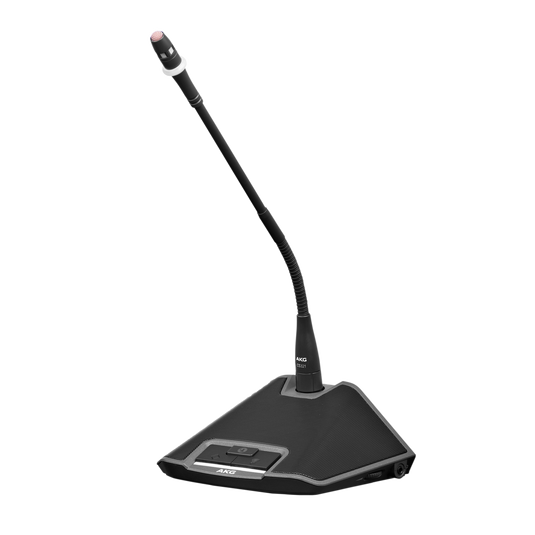

The AKG CS3 CU chairman unit is a two-mode microphone station with two choices for the detachable microphone.

From the Manufacturer:

The CS3 CU chairman unit is a microphone station with two operating modes. In "priority call" mode, the user can manually mute all connected delegate stations. In "next in line" mode the CS3 CU automatically activates the next delegate station in the waiting list. The station provides a built in speaker and 2 x 3.5 mm stereo jacks to connect headphones for up to two delegates. The CS3 CU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521. The CS3 CU set-box contains a 2 m long Plug 'n' Play connector cable as well as the preferred microphone choice.

Features:

• Chairman functions with “Priority” and “Next in line” buttons: Give full control over the entire conference/system
• Interchangeable microphones: Maximum flexibility for any type of conference situation
• Built in speaker: For near field reinforcement
• Two separate 3.5mm stereo jacks: To connect headphones for up to two delegates
• Plug ‘n Play set: Includes all components for a quick set-up

Specifications:

• General Specifications
  • Power Supply: DC24V Supplied by the Base Unit
  • Power Consumption: 3W
  • Loudspeaker Power: 2W
  • SNR: >80dB
  • Frequency Response: 50Hz-20kHz
  • Intercommunication: DIN 8-pole
  • Headphone Output: 9dBu, 8-32ohm, 3.5mm
  • Crosstalk Attenuation: >80dB
  • Harmonic Distortion: <0.1%
  • Operating Temperature: 0°C to 40°C at 95% relative humidity (non-condensing)
• Dimensions
  • Length: 170 mm
  • Width: 143 mm
  • Height: 63 mm
  • Weight: 1kg
