CS3 DU

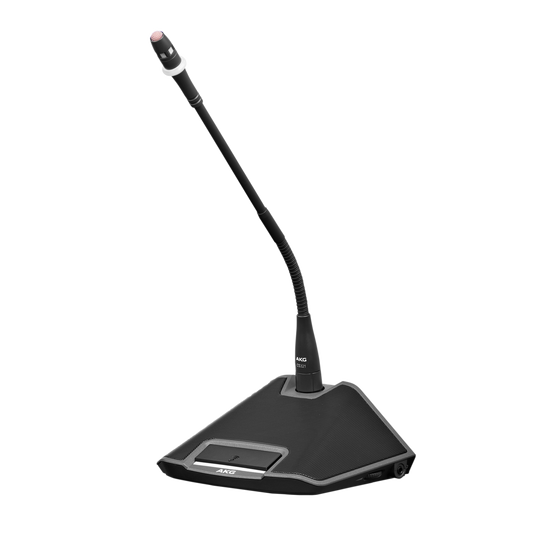

The AKG CS3 DU microphone station with integrated loudspeaker and dual headphone outputs offers two lengths for the detachable gooseneck microphone.

From the Manufacturer:

The CS3 DU microphone station is the basic delegate unit for the CS5 conference systems. It provides both an integrated loudspeaker as well as two 3.5 mm stereo headphone outputs and could be used for up to 2 delegates. Depending on the selected operating mode, the PTT key enables the speaker to directly switch on their microphone or to enter the system waiting list. The CS3 DU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521. The CS3 DU set-box contains a 2 m long Plug 'n' Play connector cable as well as the preferred microphone choice.

Features:

• Delegate station with PTT button intuitive and easy to use: For maximum flexibility for any type of conference situation
• Interchangeable microphones: For near field reinforcement
• Built in speaker: For up to two delegates
• Two separate 3.5mm stereo jacks: To connect headphones for a quick setup
• Plug ‘n Play set: Includes all components

Specifications:

• General Specifications
  • Power Supply: DC24V Supplied by the Base Unit
  • Power Consumption: 3W
  • Loudspeaker Power: 2W
  • SNR: >80dB
  • Frequency Response: 50Hz – 20kHz
  • Intercommunication: DIN 8-pole
  • Headphone Output: 9dBu, 8-32ohm, 3.5mm
  • Crosstalk Attenuation: >80dB
  • Harmonic Distortion: <0.1%
  • Operating Temperature: 0°C to 40°C at 95% relative humidity (non-condensing)
• Dimensions
  • Length: 170 mm
  • Width: 143 mm
  • Height: 63 mm
  • Weight: 1kg
