NCSM14-U-US

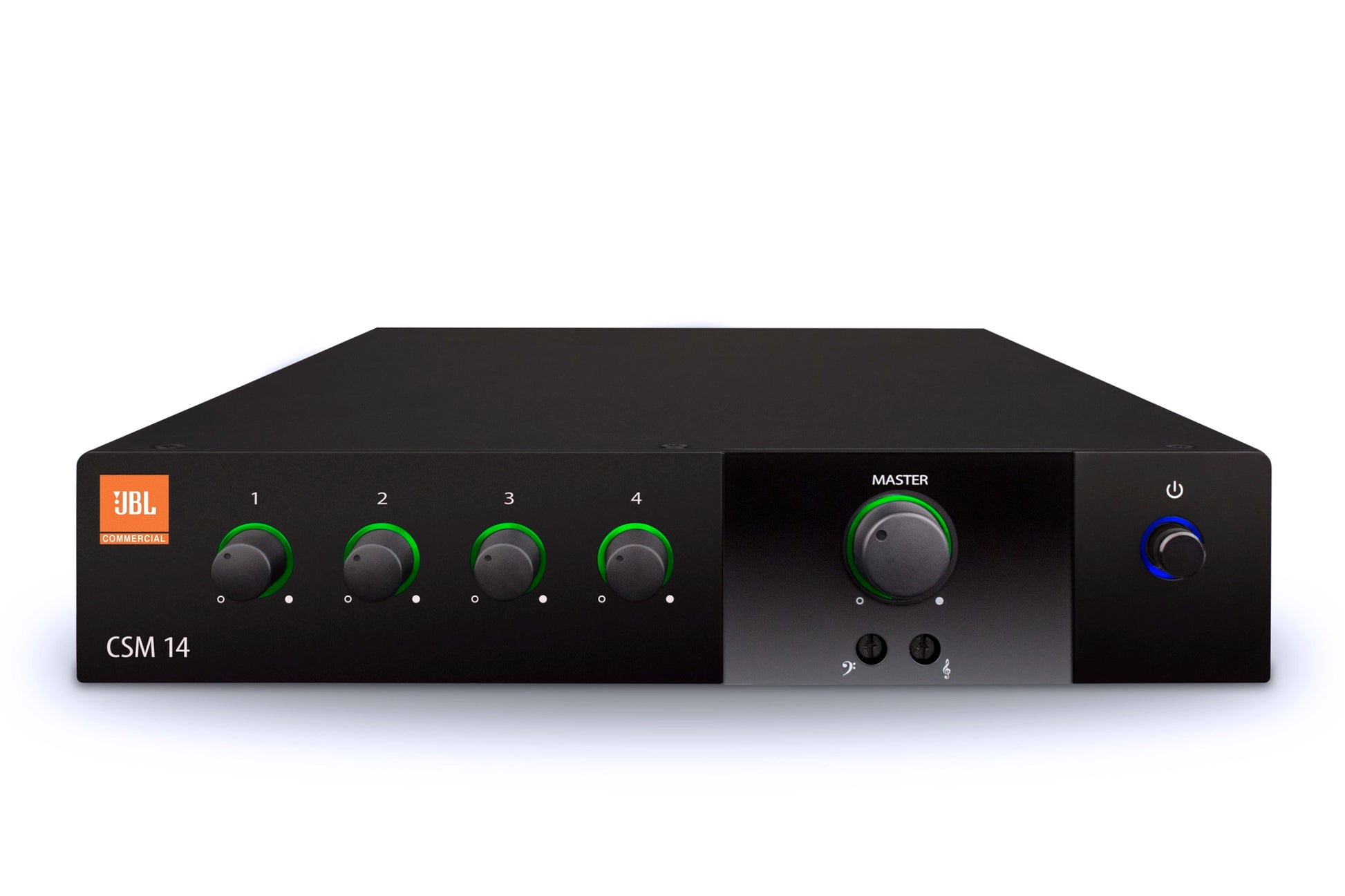

The CSM 14 is a commercial grade mixer. It is a great option for background music, security, and paging on smaller systems.

From the Manufacturer:

Backed by the combined technological prowess of multiple HARMAN brands, the JBL® Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.

Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.

They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, they’re built using HARMAN’s GreenEdge™ clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.

Features:

• 4 or 8 inputs with 1 or 2 channel outputs

• Fanless, space-saving 1U design

• Configurable output routing (2 channel models only)

• Independent base/treble controls

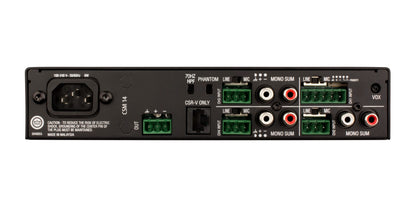

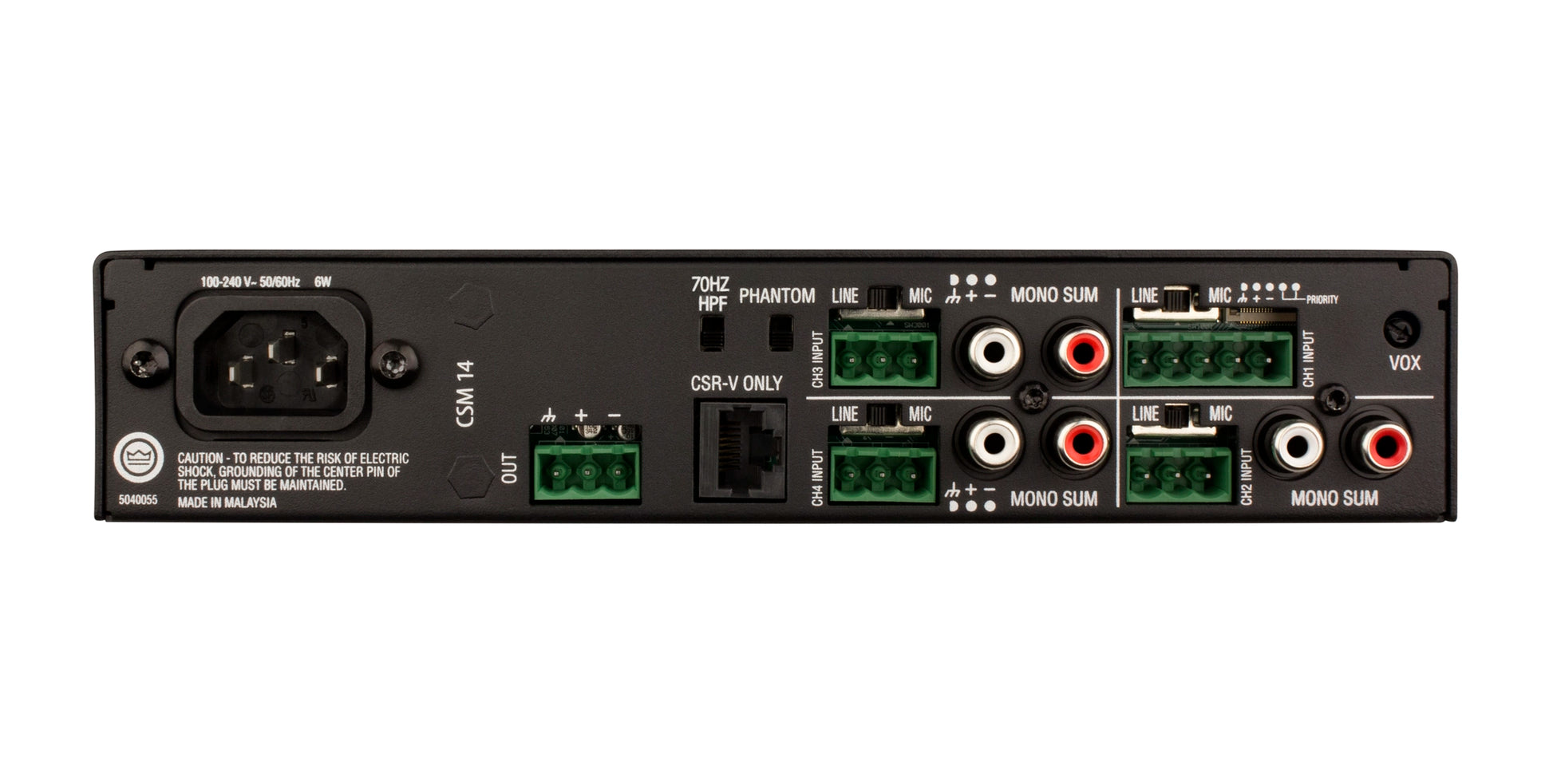

• Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection

• Supports JBL CSR-V wall controller via Ethernet cable

• Priority muting, VOX ducking, and phantom power for all models

Specifications:

• Inputs

• 4

• Output Channels

• 1

• Input Sensitivity (Mic)

• 3mVrms

• Input Sensitivity (Line)

• 775mVrms

• Input Sensitivity (RCA)

• 300mVrms

• Phantom Power

• 27VDC

• Priority Muting

• Yes

• Configurable Output Routing

• No

• AC Line Voltage

• 100 - 240V, 50/60 Hz

• Dimensions

• 1.7" x 8.6" x 11.9" (43.3mm x 218.5 mm x 303.4mm)
