The CSMA1120 is a single channel professional amplifier. It is a great option for smaller installs that still need high audio quality.

From the Manufacturer:

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

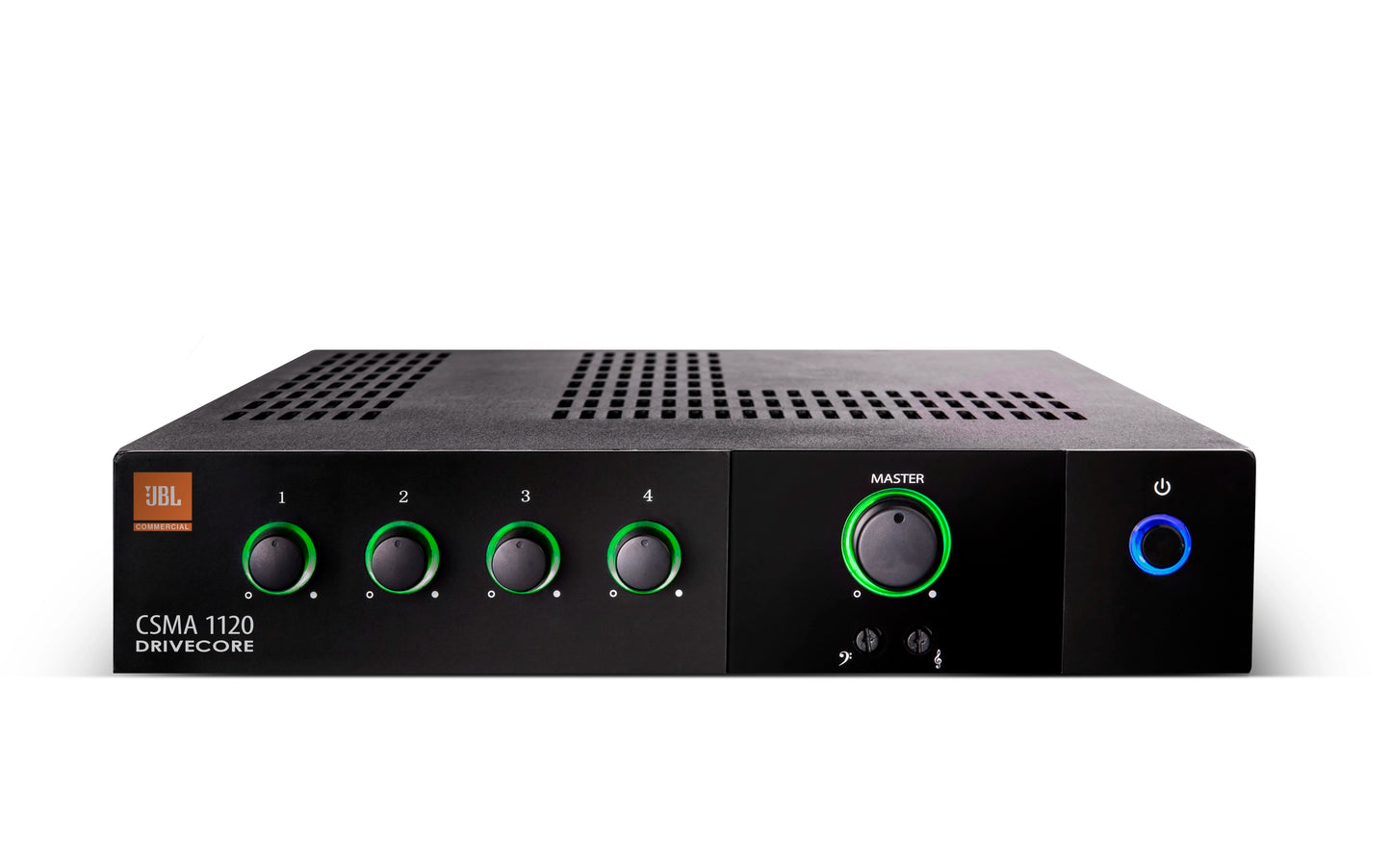

The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

JBL Commercial mixer/amps are manufactured under HARMAN’s GreenEdge™ environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation – up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.

Features:

  • 4 inputs with 1 output of 80 or 120-watts of power

  • Ideal for commercial and industrial use

  • Fanless, space-saving 1U design

  • Sleek industrial look with illuminated rings, making them easy to see and operate

  • Euro-block type mic/line input connectors and output connectors

  • Independent Bass and Treble controls for each output channel

  • Supports 70V and 100V distributed audio systems without the need for a separate transformer

  • Remote volume control capability using JBL CSR-V module and standard Ethernet cable

  • Priority muting

  • Configurable output routing

  • Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency

  • Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process

  • Includes rack mounting kit

  • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment

  • Energy Star® Certified

Specifications:

  • Output

    • 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%

  • Frequency Response

    • +/- 1dB (@1W into 4 or 8 Ohms)

  • Load Impedance

    • Stable from 2 - 16 Ohms

  • Sensitivity

    • 1.4Vrms

  • Signal to Noise Ratio

    • Greater than 100 dB - 1kHz, A-weighted

  • Input Impedance

    • Balanced 20K Ohms/Unbalanced 10K Ohms

  • Max Input

    • +20dBu Typical

  • Dimensions

    • 1.7" x 8.6" x 11.9"

    • 43.3 mm x 218.5 mm x 303.4 mm

  • Shipping Weight

    • 10.1 lbs (4.6 kg)

Included:

  • Rack mounting kit
