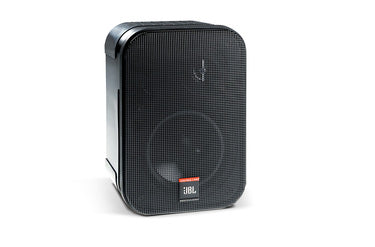

CSS-1S/T

A compact surface-mount 2-way installation speaker designed for commercial background music and paging systems, delivering clear speech intelligibility and wide, even coverage in small to medium indoor environments.

Manufacturer Description

The JBL CSS-1S/T is a versatile compact two-way loudspeaker designed for use on 70V/100V distributed speaker lines or in 8-ohm direct mode. It is voiced for maximum speech clarity and intelligibility, making it suitable for foreground and background music applications in environments such as retail spaces, cafés, classrooms, and offices.

It uses a 5.25-inch low-frequency driver and a 0.75-inch dome tweeter to deliver full-range sound with consistent coverage and includes a multi-tap transformer for distributed audio systems.

Features

• 2-way compact surface-mount loudspeaker

• 5.25” (135 mm) LF driver + 0.75” (19 mm) dome tweeter

• Designed for foreground/background music and paging

• Supports 70V / 100V distributed systems or 8Ω direct mode

• Built-in multi-tap transformer (10W / 5W / 2.5W)

• Wide 120° × 120° coverage pattern

• Wall-mount bracket included

• Optimised for speech intelligibility in commercial spaces

• Polypropylene enclosure for durability

Specifications (List Format)

• System Type: 2-way surface-mount installation speaker

• Frequency Range (-10 dB): 85 Hz – 18 kHz

• Frequency Response (±3 dB): 120 Hz – 16 kHz

• Power Capacity: 60 W

• Sensitivity: 86 dB (1W/1m)

• Maximum SPL: 106 dB (8Ω mode)

• Coverage: 120° horizontal × 120° vertical

• Nominal Impedance: 8 ohms (switchable)

• Transformer Taps: 10W / 5W / 2.5W (70V/100V)

• LF Driver: 5.25” (135 mm) cone driver

• HF Driver: 0.75” (19 mm) dome tweeter

• Enclosure Material: Structural polypropylene foam

• Dimensions: 229 × 159 × 143 mm

• Weight: 2.0 kg

 Included Items

• JBL CSS-1S/T loudspeaker

• Wall-mount bracket assembly

• Installation hardware (varies by kit region)
