CSX BIR10

The AKG CSX BIR10 infrared central control unit provides complete security for wireless translation systems, expandable to handle any size room.

From the Manufacturer:

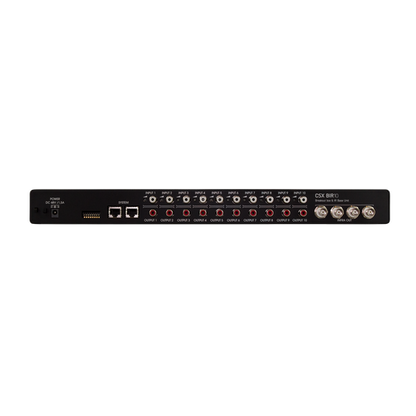

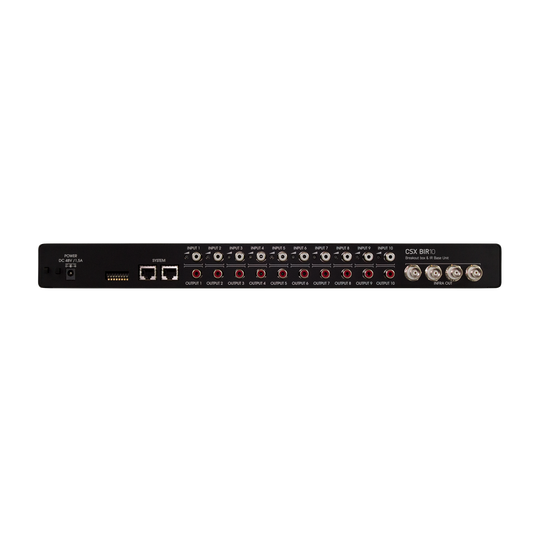

The CSX BIR10 is the infrared central control unit for the CSX IRS10 infrared language distribution system, the core element that provides the utmost security for wireless translation systems. The system is designed to operate in two modes, both feeding up to 10 channels. First, the CSX BIR10 can be used as part of AKG´s CS5 system. In this mode the unit acts as infrared modulator and/or as breakout box to provide channels of the CS5 data ring to external devices via RCA connectors on the back panel. Second, as a stand alone IR system, to feed external devices (e.g. a wireless system) These signals cannot NOT be fed into a CS5 data ring. It is also possible to mix inputs – take a few external sources and a few from the CS5 data ring. 4 BNC connectors are used for 4 strings of radiators that can be daisy chained. Four IR LED´s provide the infrared signal in the technician room to enable the technician to control what is transmitted in the venue hall. The CSX BIR10 is easily expandable to handle virtually any size room.

Features:

• Digital Transmission with PPM technology: effective audio and radiation quality control – easy to install
• For CS5 or standalone system: works with all kinds of analogue inputs
• Unlimited expansion of radiators: for any room size

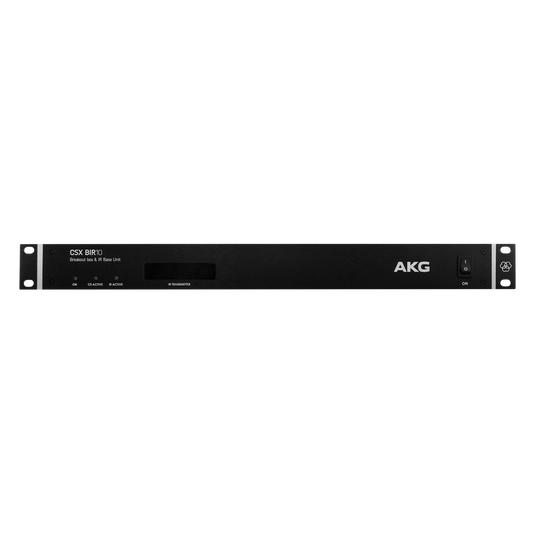

• Built in IR LEDs: to provide IR signal in technician room
• Mixed inputs from external or CS5 possible: enables use of external devices

Specifications:

• System description: Infrared audio distribution system
• Power supply: (AKG CS5 PS12) 48 volts
• System cable coax: 50 ohms (5V TTL)
• System cable: CS5 Cat5e
• Radiated power: 12,5 watts
• Audio input connectors: RCA unbalanced
• Input level: 0 dBu
• Input impedance: 20 kohms
• Audio output connectors: RCA unbalanced
• Output level: 0 dBu
• Output load impedance: 1 kohms
• S/N ratio output: 90dB
• FRQ range output: 20-20.000 Hz
• Number of languages: 10
• Dimensions:
  • Width: 482 mm
  • Height: 44 mm
  • Depth: 108 mm
  • Net Weight: 1450 g
• Design:
  • Body: metal
  • Finish: matte black
