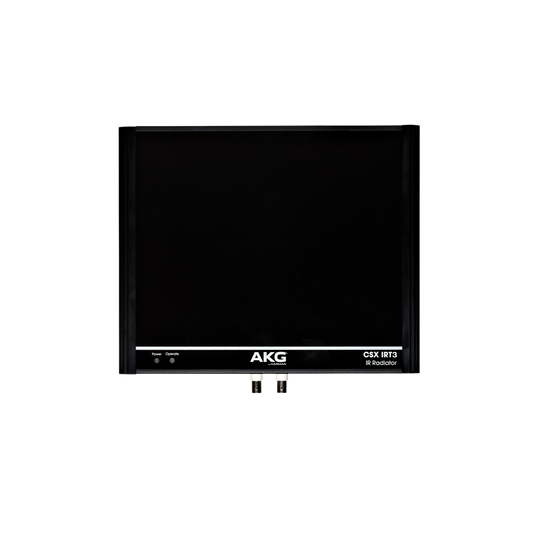

CSX IRT3

The AKG CSX IRT3 is a 10-channel infrared transmitter, with a spotlight angle of +/-17° to cover distances up to 65m.

From the Manufacturer:

The CSX IRT3 and CSX IRT4 are 10 channel infrared transmitter. Using digital PPM signal always all LED´s cover the same area and distance, regardless the number of channels needed in an application ensuring perfect coverage even with changing channel needs. The CSX IRT3 and 4 can be cascaded almost without limit due to a signal refresher built into all transmitters. Even very large areas can be covered. The transmitters are designed in a way that no cooling fans are needed – they act absolute quiet without any noise. Clearly visible LED´s indicate the status from the distance, providing highest security for the technician on site. The CSX IRT3 is the spotlight version with a light angle of +/-17° to cover distances up to 65m.

Features:

• Digital Transmission with PPM technology: effective audio and radiation quality control – easy to install
• For CS5 or standalone system: works with all kinds of analogue inputs
• Elegant Design with Status LED: showing clearly the status
• Included signal refresher: Cascadable to cover large areas
• Mounting bar: for wall or ceiling mount
• Two different light characteristics – flood and spot light

Specifications:

• Number of languages: 10
• Dimensions
  • Width: 280 mm
  • Height: 260 mm
  • Depth: 70 mm
  • Net Weight: 4000 g
• Design
  • Body: metal
  • Finish: matte black
• Powering Interface
  • Voltage: 100 to 240 V
• System Interface In
  • Amount: 1
  • Contacts: 2-pin
  • Rated Impedance: 50 Ohms
  • Type: BNC
• System Interface Out
  • Amount: 1
  • Contacts: 2-pin
  • Rated Impedance: 50 Ohms
  • Type: BNC
