CT875
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

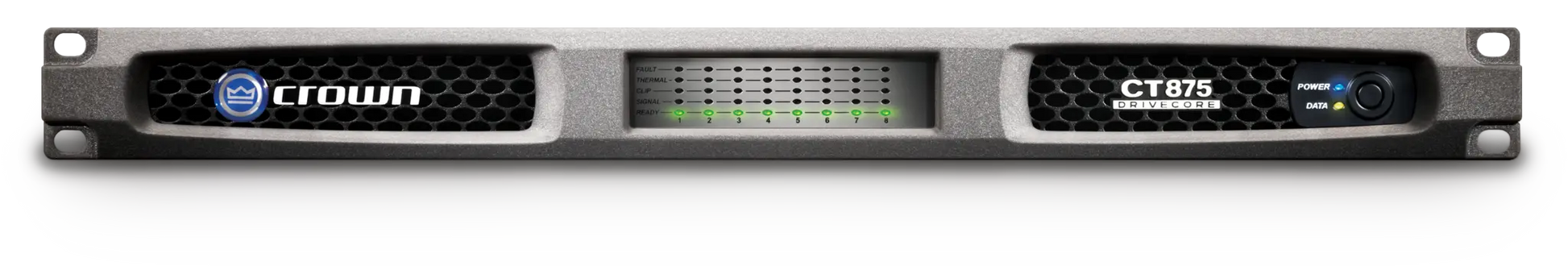

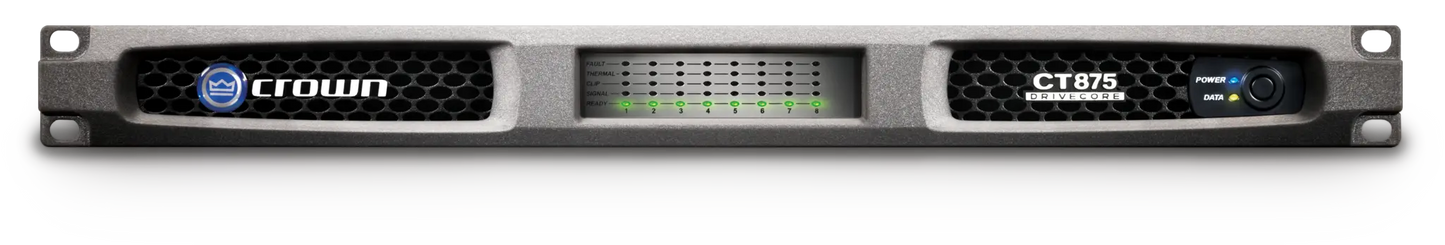

The CT875 is professional, 8 channel, speaker amplifier. It is a great option for smaller installs.
From the Manufacturer:
Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.
Features:
-
Flexible Input Routing
-
Convection Cooled
-
Universal Power Supply
-
Integrated Life-Safety Features
-
Up to 8X125W in 1U chassis with no fan
-
DriveCore™ technology provides >90% efficiency with no compromise in performance
-
Patented Feedback and Protection Circuits
-
Amplifier is stable for 2 – 16 Ohm Loads
-
XFMR 4/8 needed for 70V/100V Applications
Specifications:
-
Channels
-
8
-
Sensitivity
-
1.4 V
-
Rated Power Output (all channels driven)
-
125W per CH @ 4 ohms, 125W per CH @ 8 ohms
-
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted)
-
10 dB
-
THD (full rated power, 20 Hz - 20 kHz)
-
< 0.05%
-
Intermodulation Distortion (from 0 dB down to -30 dB)
-
< 0.05%
-
Frequency Response (at 1W, 4/8 ohms)
-
+/- 0.5 dB
-
Crosstalk (below rated power) 20 Hz to 1 kHz
-
> 70 dB
-
Common Mode Rejection (20 Hz to 1 kHz)
-
> 55 dB, typically > 70 dB
-
Voltage Gain
-
27 dB
-
DC Offset
-
+/- 20mV
-
Idle Power Consumption (Standard Mode)
-
25.5W
-
Dimensions
-
1.75" x 19" x 15.19"
-
Weight
-
10lbs/4.54kg
-
Shipping Weight
-
15 lbs/6.8 kg
-
IEC Power Connector
-
15A
Tech Specs
View full details
