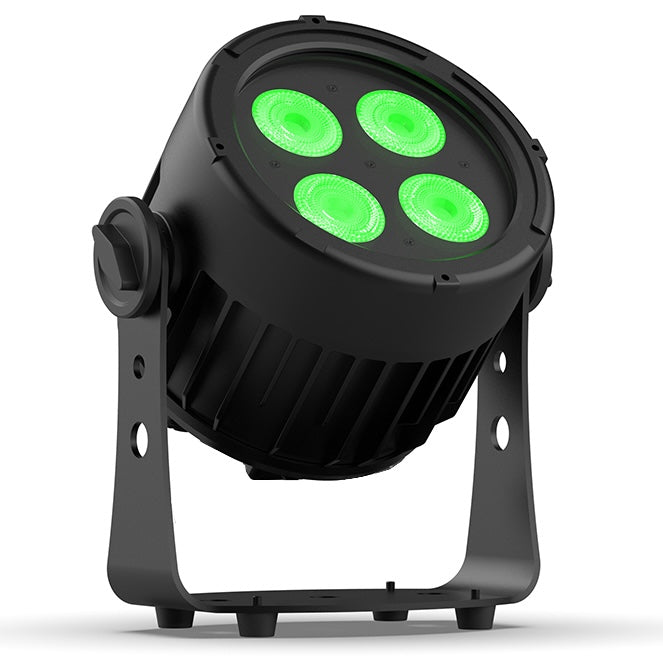

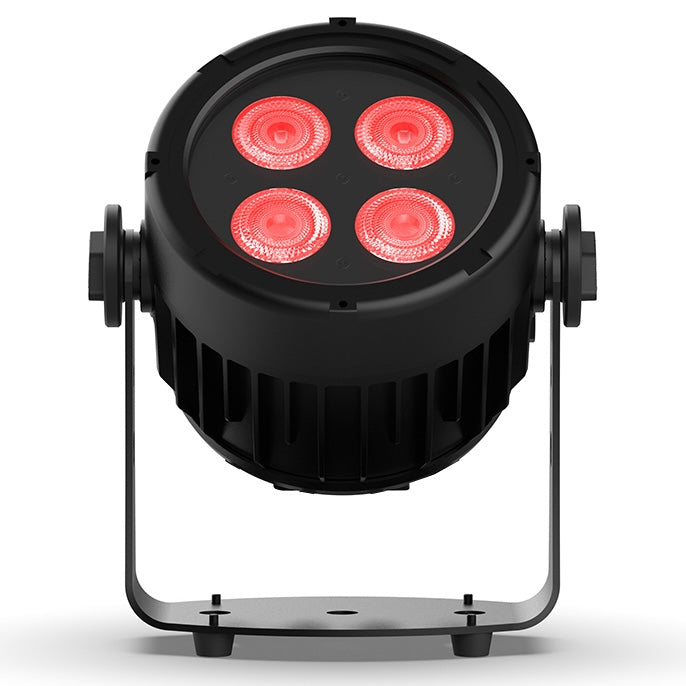

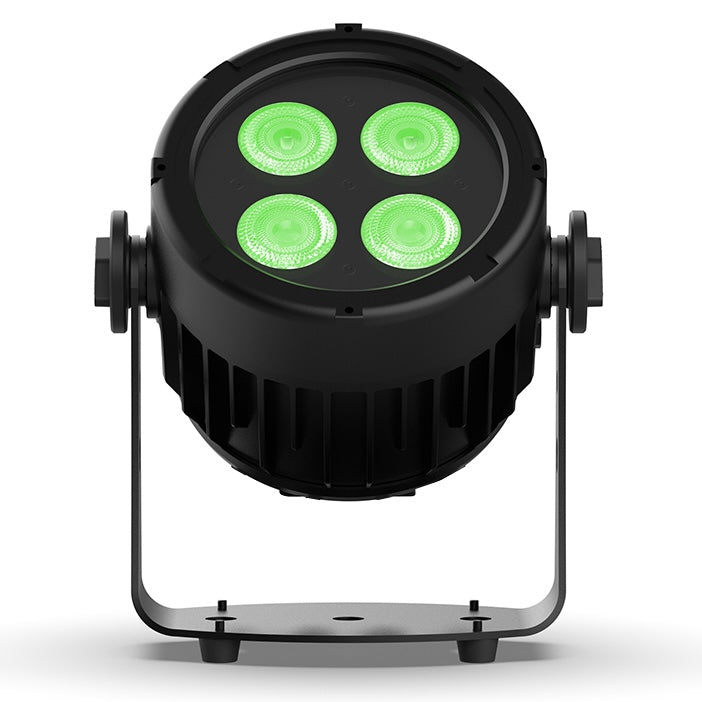

CUEPAR X1B

A great powerful, little par with RGBALC for high color accuracy. Great for smaller productions.

From the Manufacturer

CUEPAR X1B is a battery-powered IP65 outdoor-rated LED fixture featuring (4) 20W RGBALC LEDs that produce an expansive color spectrum with a remarkable 2,400 lumens output from an extremely compact, yet rugged form factor. CUEPAR X series offers exceptionally high color rendering capabilities with the integration of Lime and Cyan colors to achieve high color fidelity that results in deeply saturated color mixing with enhanced white balancing. It offers an even dispersion of light with a standard 25º beam / 40º field angle delivering uniform coverage for uplighting or stage wash, and offers optional diffusion lenses for expanded coverage. CUEPAR X1B can operate on battery for up to 20 hours with the ability to quickly recharge to full in as little as 4 hours and features TRUE1 compatible power IN/THRU connections for the option to operate on AC power. The fixture can be controlled via hardline DMX or LumenRadio CRMX for wireless control along with the added ability for standalone wireless Master/Slave control of other CUEPAR X series fixtures from one unit. Its IP65-rated housing can resist elements effortlessly and is fanless for silent operation

Our Review Video:

Features:

• 4 x 20W 6-in-1 RGBALC LED Chips

• High Color Fidelity

• 2,400 Lumen Output

• Linear 16-bit Dimming w/ 4 Dimmer Curves

• 25º Beam Angle | 40º Field Angle

• Optional 60º Diffuser Lens Attachment

• Virtual Color Gel Presets

• Built-In Color Scroll & Fade FX

• Variable Color Temperature Control

• User Selectable Refresh Rates

• W-DMX / CRMX Wireless Control

• Hardline DMX via 5-Pin XLR Connection

• Standalone 2.4Ghz Wireless Master/Slave Operation

• Up to 20 Hours Battery Operating Time w/ User Selectable Timeout

• AC Power Operation via PowerCON TRUE1 IN/THRU Connection

• Fanless Design, Silent Operation

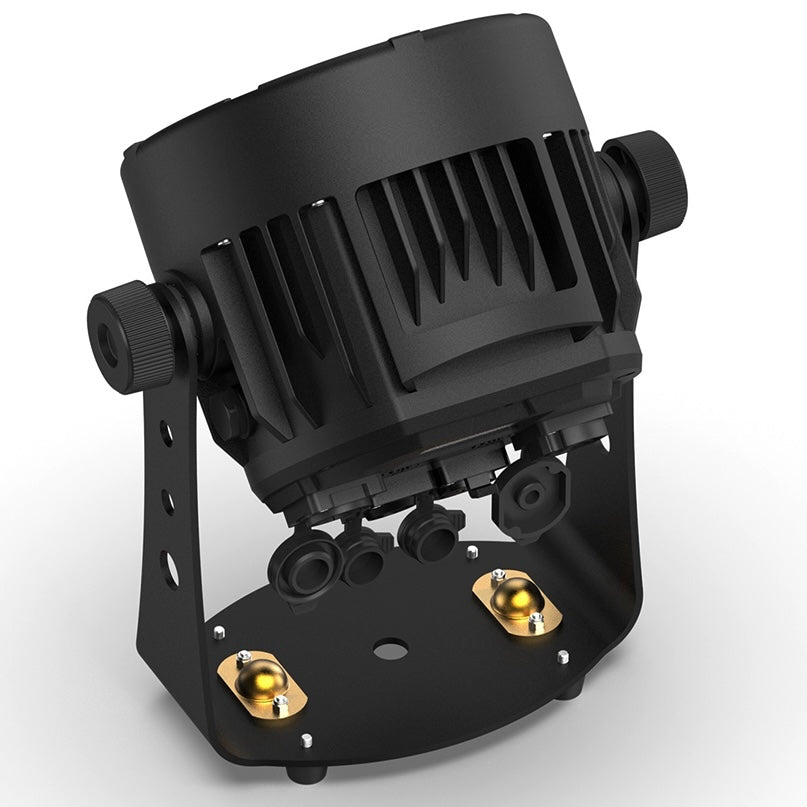

• Self Standing Yoke Base w/ M10 Hole & Quarter Turn Locks

Optical

• Source: 4 x 20W 6-in-1 RGBALC LED

• Lumens: 2,400

• Source Life Expectancy: 50,000 Hours

• Beam Angle: 25°

• Field Angle: 40º

• TM-30: TBA

• CRI: TBA

• TLCI: TBA

• Optional Attachment Lens Angle: 60º Beam / 70º Field

• Selectable PWM: 600, 1,200, 2,000, 2,400, 6,000, 18,000, 25,000 Hz

COLOR SYSTEM

• Color Mixing: RGBALC

• Color Temperature Control: 2,800 – 8,000K

• Color Wheel: Virtual Gel Swatchbook

• Macros: Built-In Color Scroll/Fade with Speed Adjustment

DYNAMIC EFFECTS

• Dimming Resolution: 16-bit Dimming

• Dimmer Curves: 4

• Stand-Alone Mode: Selection of Static Color

• Built-in Automated Programs: Yes

• Sound Active Mode: Yes

• Master/Slave Mode: Wired or Wireless

• Shutter/Strobe: 1 – 20 Hz

BATTERY

• Battery Capacity: 9,600mAH

• Battery Voltage: 22.5v

• Runtime: Up to 20 Hours*

• Recharging Time: 4 Hours

• User Selectable Run Time: 5-18 Hours

• Shutter/Strobe: 1 – 20 Hz

Control

• Protocols: DMX512, W-DMX, CRMX

• DMX channels: 3 | 4 | 5 | 6 | 8 | 11 |13 ch

• Wireless: W-DMX / LumenRadio CRMX

• Stand-Alone, Master/Slave, Sound Active Modes

• Display: OLED w/ Touch Capacitive Buttons

• LED Color Calibration: Yes

Electronics

• Dimmer: 16-bit linear 0 ~ 100% electronic dimmer

• Strobe / Shutter: 1 – 20 Hz, electronic

• Operating Temperature: -4 °F ~ 113 °F

• LED Control: Adjustable PWM, flicker-free operation

Electrical

• Power Supply: 100-240V – 50/60Hz

• Max Power Consumption: 80W / 0.6A @ 120V

• Power factor: >0.96

• Max Power Linking (120V): 30

• Max Power Linking (208V): 50

• Max Power Linking (230V): 75

Physical

• Ingress Protection Rating: IP65, outdoor/wet

• Cooling: Convective Heatsink

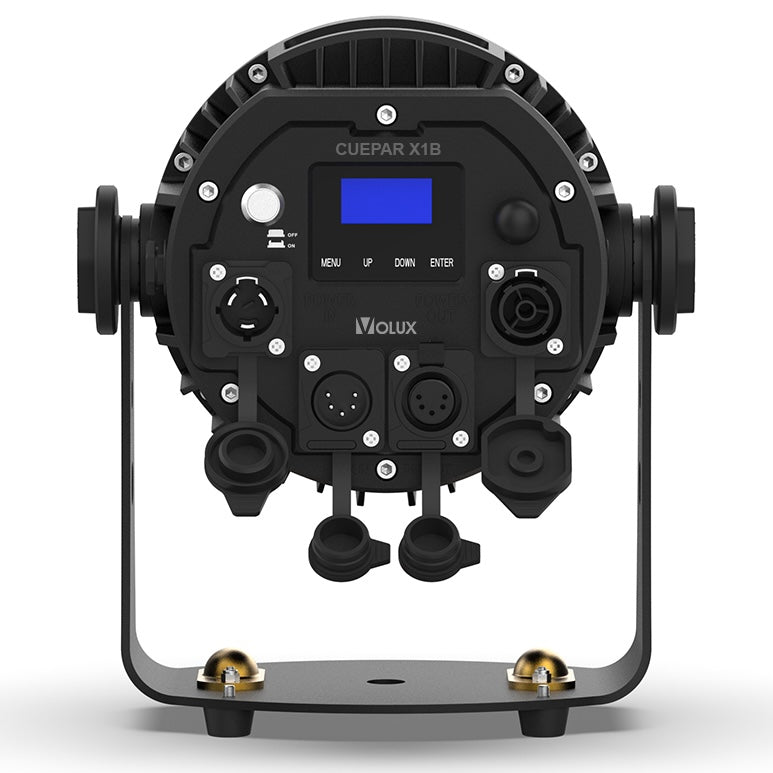

• Signal connection: 5-Pin XLR IN/THRU

• Power connection: TRUE1 Compatible SeeTronic Powerkon IP65

• Dimensions (WxHxL): 5.5″ x 8.1” x 10.5”

• Weight: 8.5lbs / 3.9kg

What’s Included

• CUEPAR X1B LED Par

• SeeTronic IP65 Power Cable

• Self-Standing Yoke Base

• DMX Cable

Optional Accessories:

• 8 Unit Flight Case w/ Integrated Edison Outlets

• Power Linking Cables

• 60º Diffuser Lens

• Folding Dual-Yoke / Floor Stand

• Omega Bracket
