Cuepar X2

The Cuepar X2 is an outdoor-rated LED fixture. It is a great option for smaller stages needing a full color par, that can be used in and outdoors.

The unique yoke design makes it very easy to deploy on events. It's a winner in our book!

From the Manufacturer:

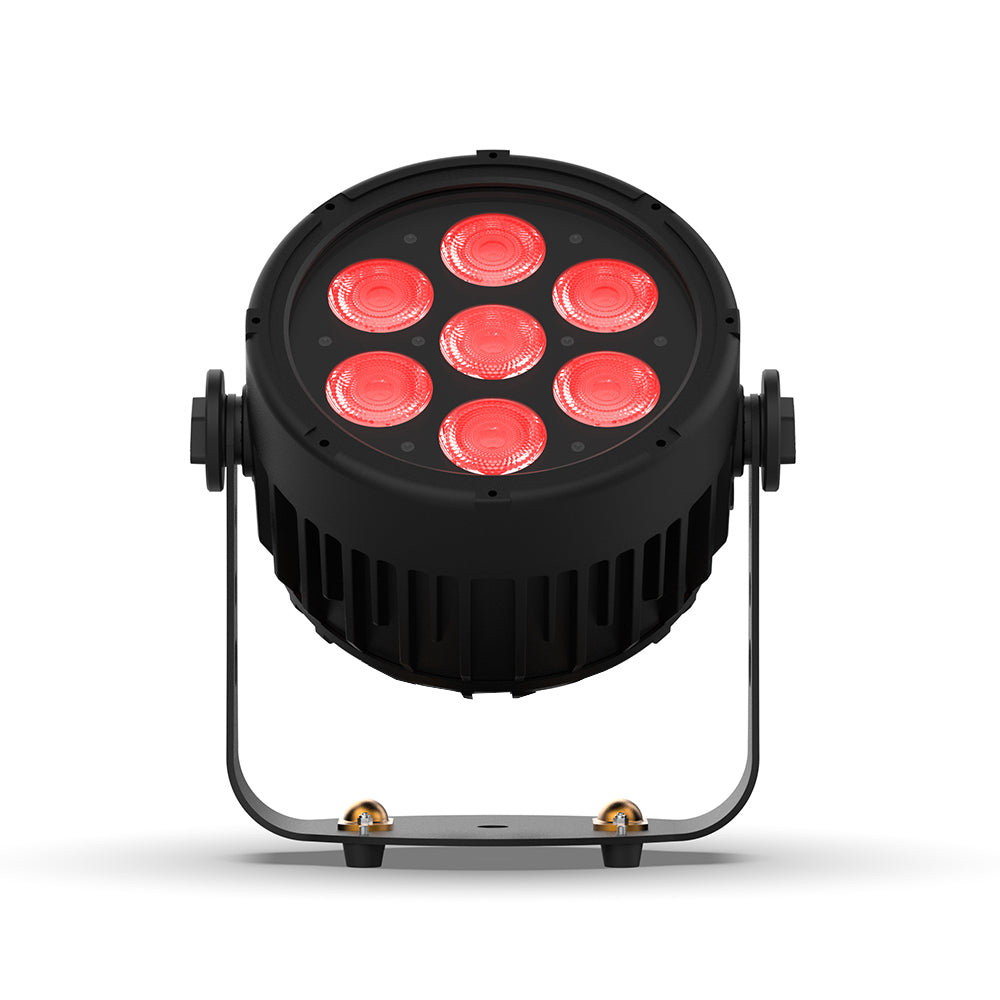

CUEPAR X2 is an IP65 outdoor-rated LED fixture featuring (7) 20W RGBALC LEDs that produce an expansive color spectrum with a remarkable 4,500 lumens output from an extremely compact, yet rugged form factor.

CUEPAR X series offers exceptionally high color rendering capabilities with the integration of Lime and Cyan colors to achieve high color fidelity resulting in deeply saturated additive and subtractive color mixing with enhanced white balancing.

It offers an even dispersion of light with a standard 25º beam / 40º field angle resulting in uniform coverage for uplighting or stage wash, and offers optional diffusion lenses for expanded coverage.

The fixture can be controlled via DMX or W-DMX/CRMX for wireless control along with the added ability for standalone wireless Master/Slave control of other CUEPAR X series fixtures from one unit.

Its IP65-rated housing can resist elements effortlessly and is fanless for silent operation.

Our Review Video:

Features:

• Expansive Color Rendering

• Uniform Wash

• IP65-Rated

• Flexible Control

• Includes 5-Pin DMX Cable

Specifications:

• Optical

• Source: 7 x 20W 6-in-1 RGBALC LED

• Lumens: 4,400

• Source Life Expectancy: 50,000 Hours

• Beam Angle: 25°

• Field Angle: 40º

• TM-30: TBA

• CRI: TBA

• TLCI: TBA

• Optional Attachment Lens Angle: 60º Beam / 70º Field

• Selectable PWM: 600, 1,200, 2,000, 2,400, 6,000, 18,000, 25,000 Hz

• Color System

• • Color Mixing: RGBALC

  • Color Temperature Control: 2,800 – 8,000K

  • Color Wheel: Virtual Gel Swatchbook

  • Macros: Built-In Color Scroll/Fade with Speed Adjustment

• Dynamic Effects

• Dimming Resolution: 16-bit Dimming

• Dimmer Curves: 4

• Stand-Alone Mode: Selection of Static Color

• Built-in Automated Programs: Yes

• Sound Active Mode: Yes

• Master/Slave Mode: Wired or Wireless

• Shutter/Strobe: 1 – 20 HZ

• Control

• Protocols: DMX512 with RDM, W-DMX, CRMX

• DMX channels: 3 | 4 | 5 | 6 | 8 | 11 |13 ch

• Wireless: W-DMX / LumenRadio CRMX

• Stand-Alone, Master/Slave, Sound Active Modes

• Display: OLED w/ Touch Capacitive Buttons

• LED Color Calibration: Yes

• Electronics

• Dimmer: 16-bit linear 0 ~ 100% electronic dimmer

• Strobe / Shutter: 1 – 20 Hz, electronic

• Operating Temperature: -4 °F ~ 113 °F

• LED Control: Adjustable PWM, flicker-free operation

• Electrical

• Power Supply: 100-240V – 50/60Hz

• Max Power Consumption: 80W / 0.6A @ 120V

• Power factor: >0.96

• Max Power Linking (120V): 30

• Max Power Linking (208V): 50

• Max Power Linking (230V): 75

• Physical

• Ingress Protection Rating: IP65, outdoor/wet

• Cooling: Convective Heatsink

• Signal connection: 5-Pin XLR IN/THRU

• Power connection: TRUE1 Compatible SeeTronic Powerkon IP65

• Dimensions

• (WxHxL): 5.1″ x 9.2” x 10.5”

• Weight: 9.0lbs / 4.1kg
