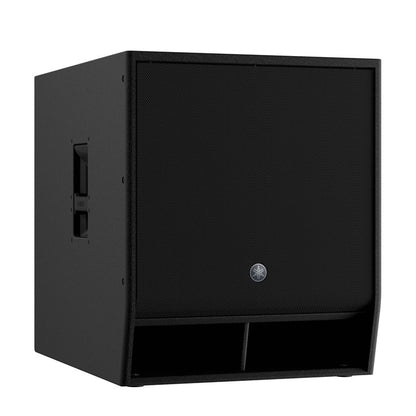

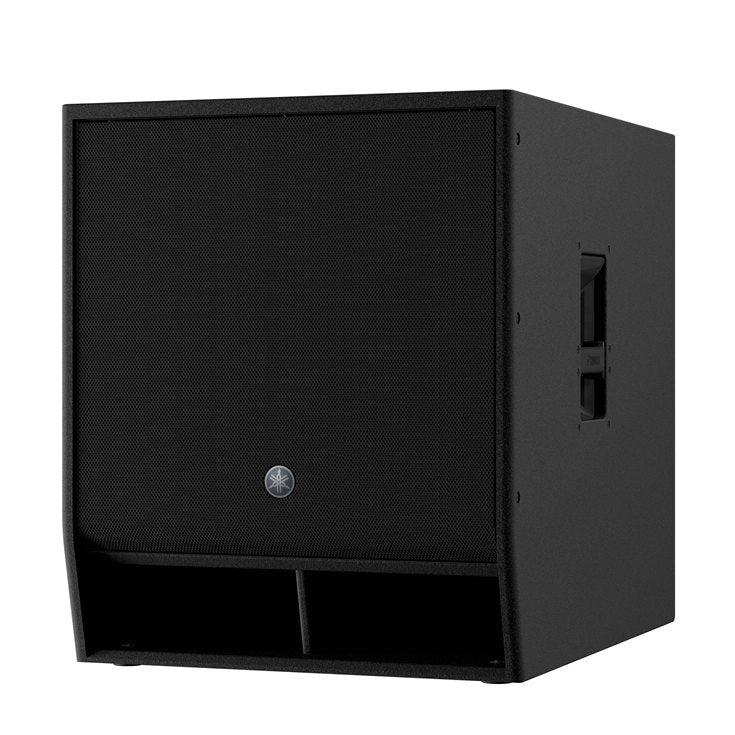

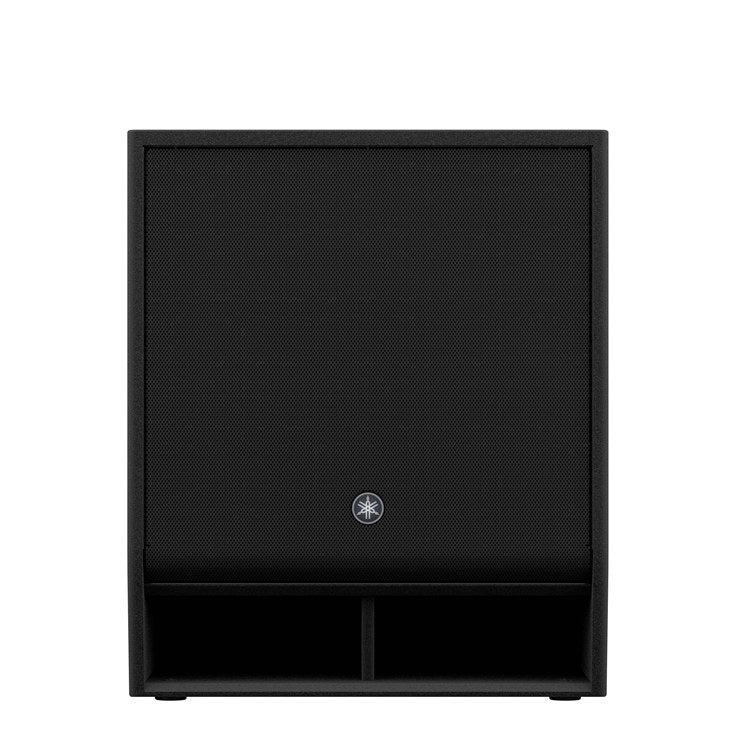

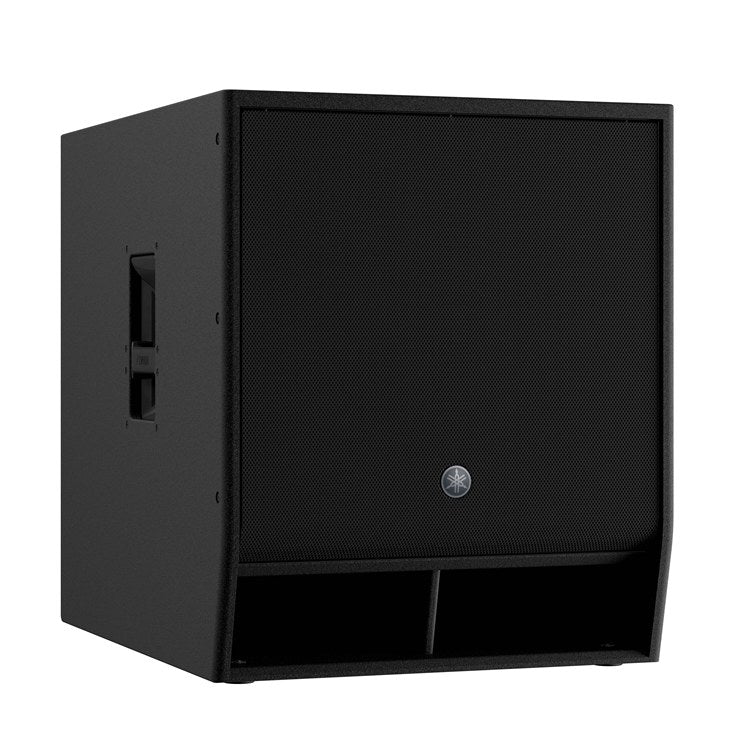

CXS18XLF

The Yamaha CXS18XLF subwoofer works perfectly with the CZR range of loudspeakers to delivers impressive low frequency sound and clarity for your live performances, outdoor festivals, or club DJ environments.

From the Manufacturer

Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system’s low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.

The fact that speakers must sound good goes without saying, but in permanent installations they have to look good and match the interior of the venue, too. Yamaha CZR Series Speakers and CXS XLF subwoofers are available in black or white.

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.

Features

• 18” subwoofer with 4” Voice Coil
• High power 1000W (PGM) input
• Cardioid mode capable with processors or DSP onboard power amps
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Dual-pole socket

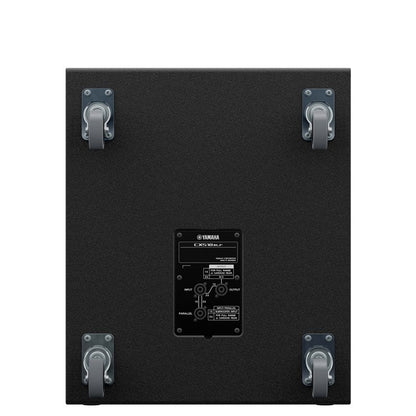

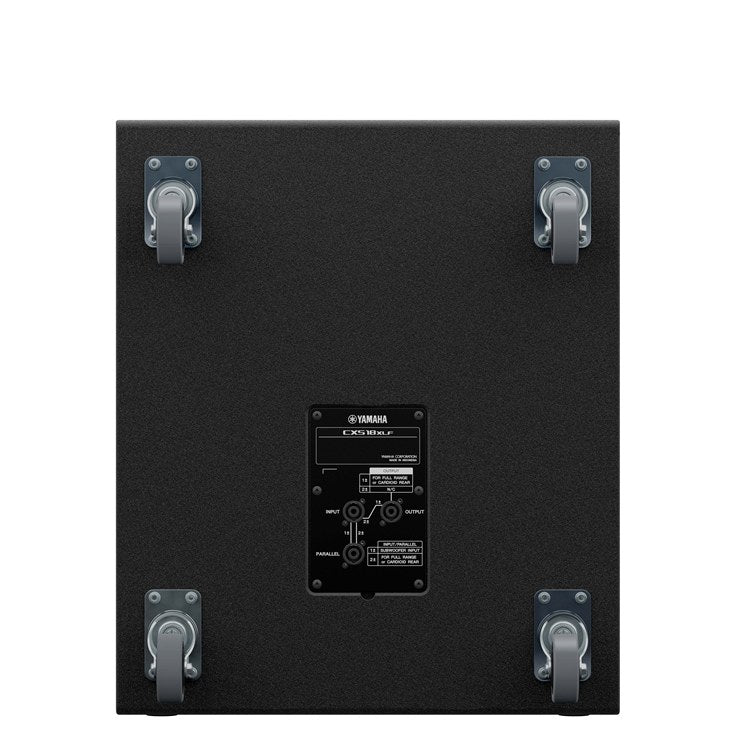

• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
• Durable Black or White finish

Specifications

• Speaker type: Subwoofer, Bass-reflex
• Frequency range (-10dB): Passive: 32 Hz - 3kHz, Normal (*1): 32 Hz - 150 Hz, Extend (*1): 29 Hz - 150 Hz
• Components

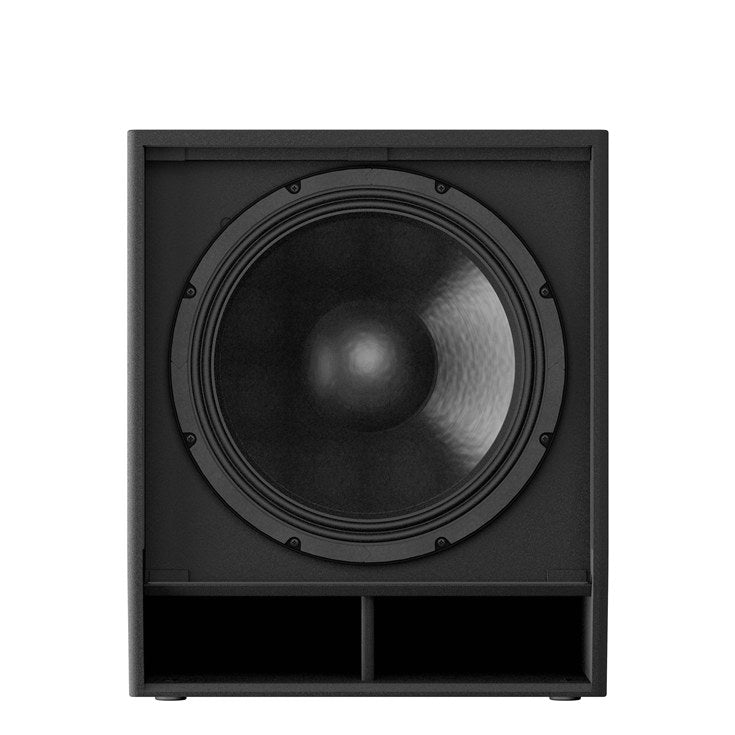

  • LF: 18" Cone, 4" Voice Coil, Ferrite magnet
• Power rating
  • NOISE: 500 W (EIA 426-A)
  • PGM: 1000 W (EIA 426-A)
  • PEAK: 2000 W (EIA 426-A)
• Nominal impedance: 8Ω
• SPL
  • Sensitivity (1W; 1m on axis): 100dB *2
  • Peak (Calculated): 133 dB *2

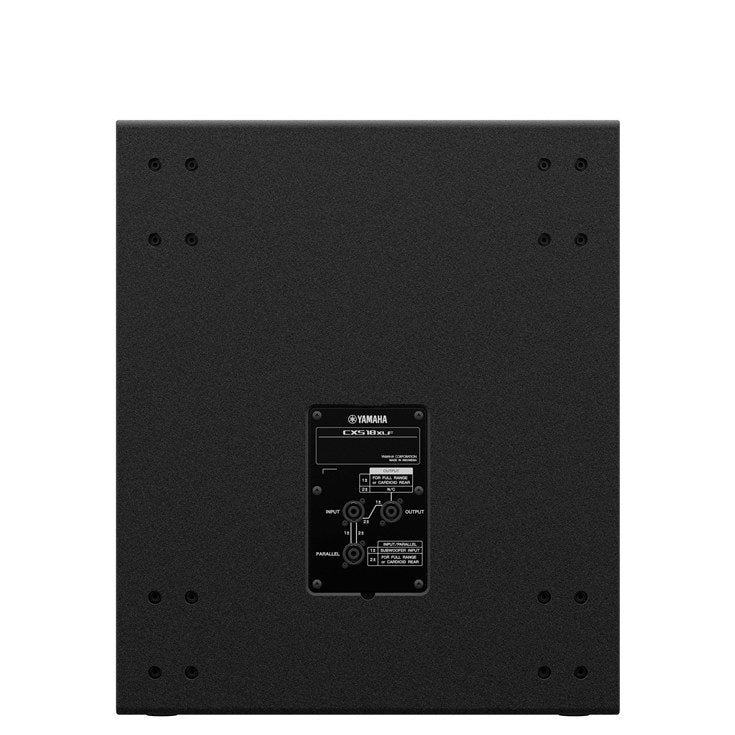

• I/O connectors: SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Handle: Aluminum die-cast, Side x2
• Pole socket: Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
• Dimensions
  • W: 550 mm (21.6")
  • H: 657 mm (25.9") (with rubber feet)
  • D: 720 mm (28.4")
• Net weight: 43.6kg (96.1 lbs)
• Options: Cover: SPCVR-DXS18X, Caster: SPW-1
