CZR15

The Yamaha CZR15 loudspeaker delivers impressive sound and versatility for your live performances, outdoor festivals, or club DJ environments.

From the Manufacturer

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system’s low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.

The CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

The fact that speakers must sound good goes without saying, but in permanent installations they have to look good and match the interior of the venue, too. Yamaha CZR Series Speakers and CXS XLF subwoofers are available in black or white.

CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts*. Specialized U brackets are also available for convenient flying/hanging installation. *Eyebolts not included.

The CZR Series features 15˝, 12˝ and 10˝ models with transducers with die-cast aluminum frames with a 3˝ voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2˝ voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally. When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings.

Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).

Features

• 2-way loudspeaker with a 2” HF and a 15" LF
• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 800W(PGM) power handling and Bi-amp capable

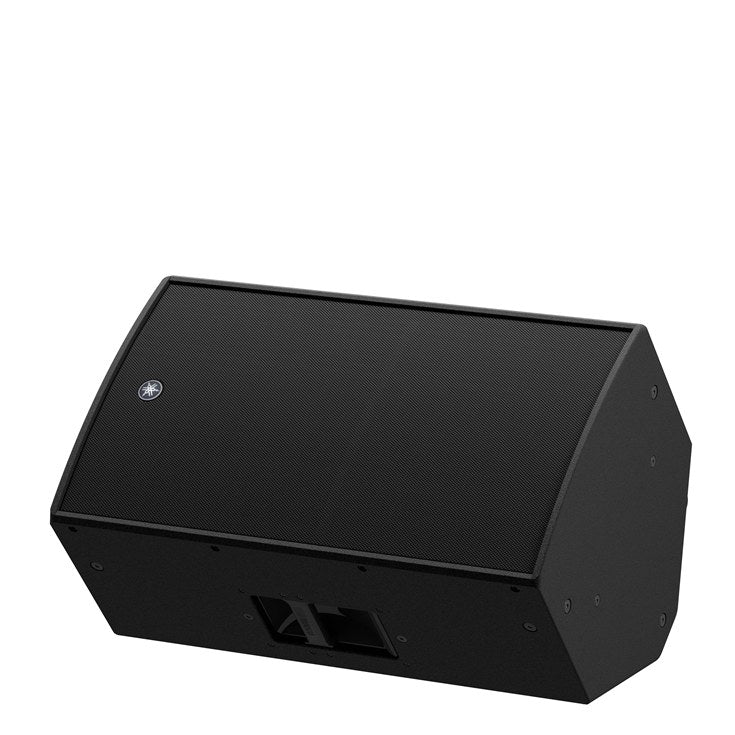

• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR15)
• Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
• Durable Black or White finish

Specifications

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB): Passive: 43 Hz - 20 kHz, Normal (*1): 34 Hz - 20 kHz, FOH (*1): 33 Hz - 20 kHz
• Coverage area: H90ﾟ x V50ﾟ Rotatable Constant Directivity Horn
• Floor Monitor Angle: 50°
• Components
  • LF: 15" Cone, 3" Voice Coil, Neodymium magnet
  • HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 2.0 kHz
• Power rating
  • NOISE: Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
  • PGM: Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
  • PEAK: Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
• Nominal impedance: Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W
• SPL
  • Sensitivity (1W; 1m on axis): Passive: 97dB SPL, Bi-amp: LF: 99dB SPL, HF: 108dB SPL
  • Peak (Calculated): Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL

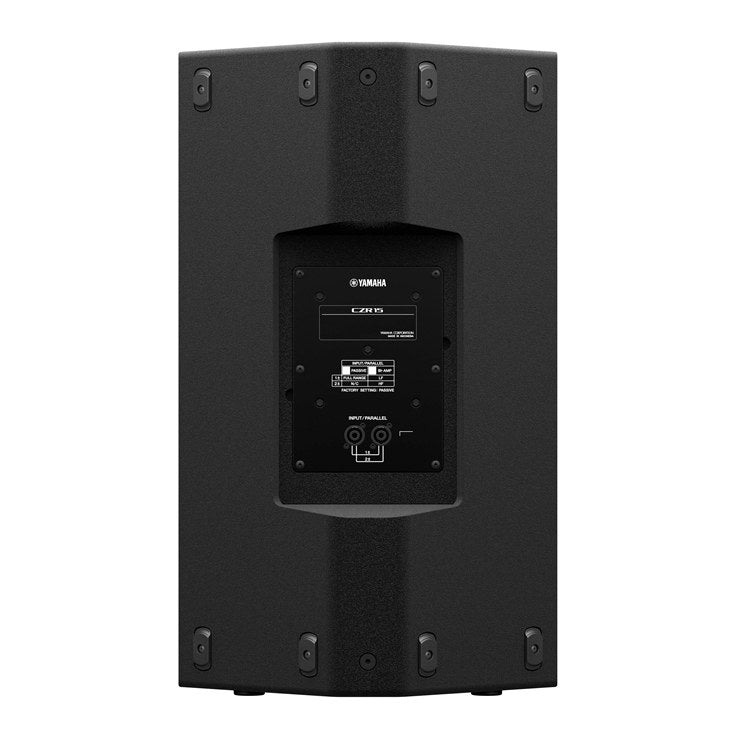

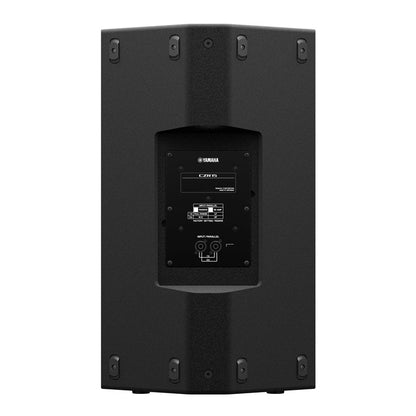

• I/O connectors: SpeakON NL4MP x 2 (Parallel)
• Handle: Aluminum die-cast, Side x2Pole socket: Φ35 mm x2 (0° or -7°)
• Rigging: M10 x 12
• Dimensions
  • W: 450 mm (17.7")
  • H: 761 mm (30.0") (with rubber feet)
  • D: 460 mm (18.1")
• Net weight: 21.3 kg (47.0 lbs)
• Options: Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
