D4 Branch RM DMX Splitter
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
A simple, inexpensive DMX splitter that gets the job done! The D4 Branch RM offers basic DMX splitting without RDM at a really great price.
From the Manufacturer:
From the GEAR Pro's:

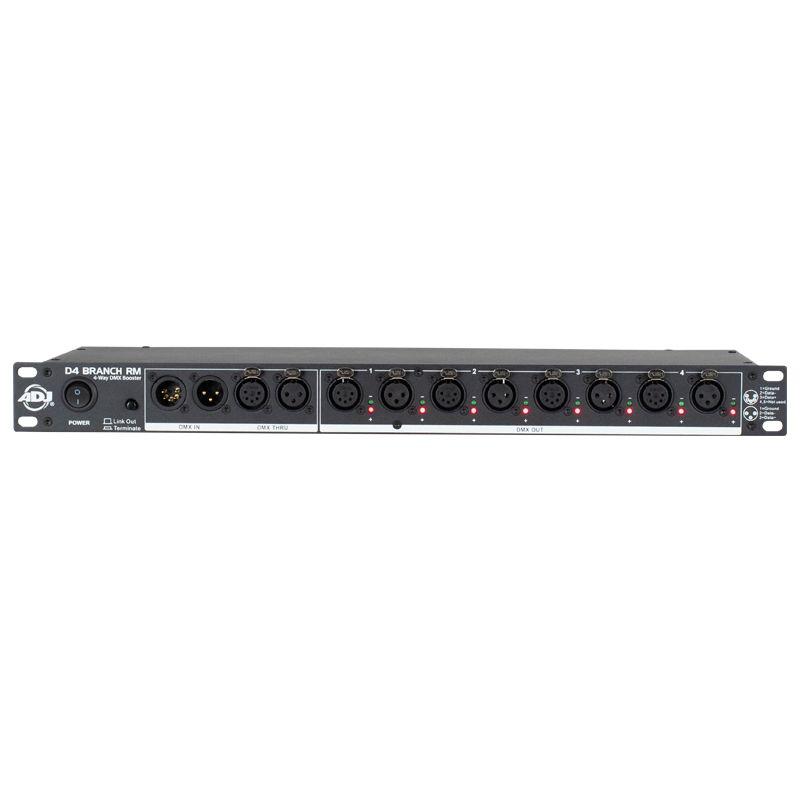

Here's what we like - this is a value-priced splitter that rack mounts and offers (1) DMX thru and (4) amplified splitter outputs.

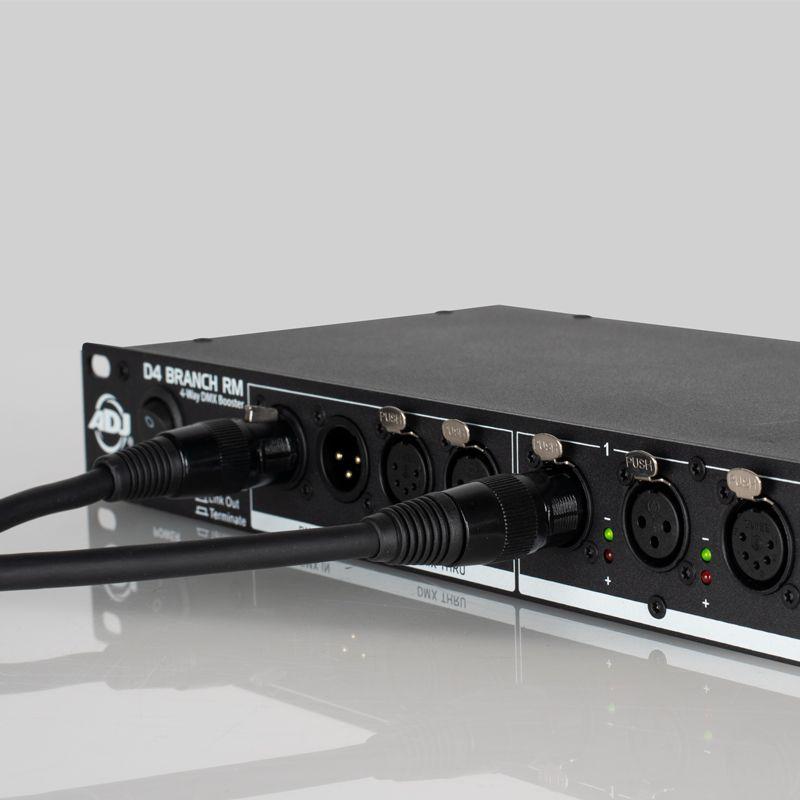

Each set of jacks (input and output) offers both 3 and 5 pin options. For each output, you get to choose whether you use the 3-pin or 5-pin output - using both is a y-split, which is real bad for your DMX signal.
This is great to have so that you can use 3-pin on one show, 5 pin on the next, or any combination of the two for your outputs, depending on what gear and cabling options you have.
We also like the fixed power cord - no IEC cable to wiggle out between shows!
In the Box:
- (1) D4 Branch RM
- (2) Rack Mount Brackets & (4) Screws
- (4) Rubber Pads
Features:
-
4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
-
Built-in signal amplifier boosts the DMX signal for each port
-
Link / Terminate Button for Easy Troubleshooting
-
DMX Status LED Indicator
-
(1) 3-pin + (1) 5-pin XLR Isolated Inputs
-
(1) 3-pin + (1) 5-pin XLR Passive Loop Output
-
(4) 3-pin + (4) 5-pin XLR Isolated Outputs
Tech Specs
Control
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: Yes
Physical:
Length: 19 in
Width: 5.5 in
Height: 1.7 in
Weight: 5.3 lb
Electrical
Voltage Range: 120 VAC
Maximum Wattage: 60w
Main Power Connector on Included Cable: Edison
