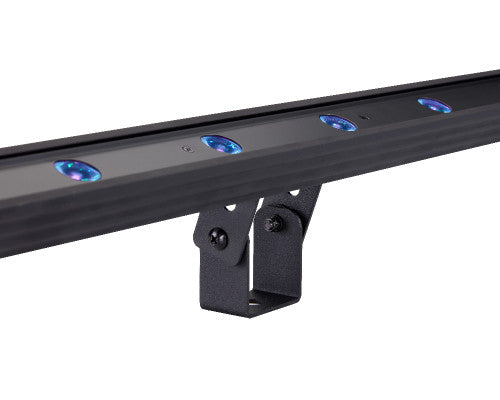

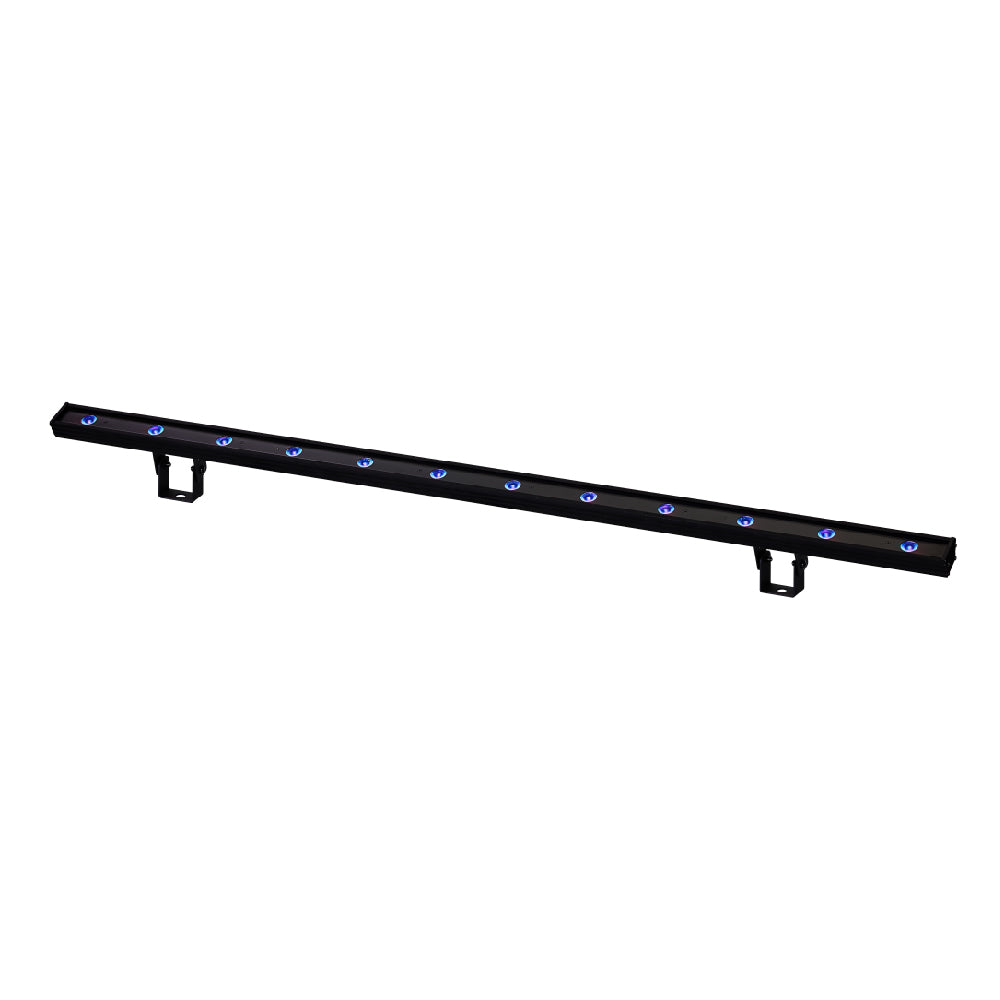

Antari DarkFX Strip 1020

The Antari DarkFX Strip 1020 is a compact professional UV LED strip fixture designed for high-output ultraviolet illumination with minimal visible light. Featuring 12 high-power 1.9 W UV LEDs with a 365 nm peak wavelength and a wide 40° beam angle, it is ideal for UV-reactive displays, attractions, signage, stage productions and entertainment installations. The fixture requires a compatible DarkFX Drive 4 / PD4 MkII power and control unit for operation.

From The Manufacturer:

The Antari DarkFX Strip 1020 is an efficient high output low power consumption UV LED strip that delivers a peak wavelength of 365nm and radiant flux output of 7,750mW at full intensity with minimum visible light.

This ensures all UV reactive materials, art, amusement park displays, and signage reflects perfectly with stunning bright and vivid colors.

It features (12) 1.9W high power UV LEDs, a 40-degree beam angle, special optics to prevent wear degradation from high UV exposure, flicker free operation for TV and FILM, and a durable aluminum extruded housing.

Key Features:

• Professional UV LED strip fixture

• 12 × 1.9 W high-power UV LEDs

• 365 nm peak UV wavelength

• 7,750 mW radiant flux at full intensity

• Minimal visible light emission

• Wide 40° beam angle

• Special UV-resistant optics

• Flicker-free operation for film and television

• Durable aluminium housing

• Low-profile linear fixture design

• Requires external DarkFX power/control unit

• Designed for professional indoor UV applications

Specifications:

• Product Type: UV LED Strip Fixture

• Manufacturer: Antari

• Series: DarkFX

• Model: Strip 1020 / DFX-S1020

• Elation SKU: AUV190

• Light Source: 12 × 1.9 W High-Power UV LEDs

• Peak Wavelength: 365 nm

• Radiant Flux: 7,750 mW

• Beam Angle: 40°

• Average LED Life: 20,000 Hours

• Power Consumption: 25 W

• Required Driver: DarkFX Drive 4 / PD4 MkII

• Housing: Aluminium

• Protection Rating: IP20

• Installation Environment: Indoor

• Product Status: Discontinued

Applications:

• UV-reactive displays

• Theme parks

• Haunted attractions

• Art installations

• Signage

• Stage productions

• Theatre

• Film and television

• Clubs and entertainment venues

• Architectural installations

• Professional event production

Included Accessories:

• Integrated connection cable

Accessories (Not Included):

• DarkFX Drive 4 / PD4 MkII power and control unit

• DMX cables

• Mounting hardware as required

• Additional DarkFX Strip fixtures

Size:

• 1,000 × 40 × 77 mm

• 39.4 × 1.6 × 3.0 in

Weight:

• 1.5 kg

• 3.3 lb

Electrical / Thermal:

• Power Consumption: 25 W

• External Power/Control Unit Required

• Required Driver: DarkFX Drive 4 / PD4 MkII

• LED Life: Approximately 20,000 Hours

• Protection Rating: IP20

• Indoor Use Only
