Sku: DATASTREAM8

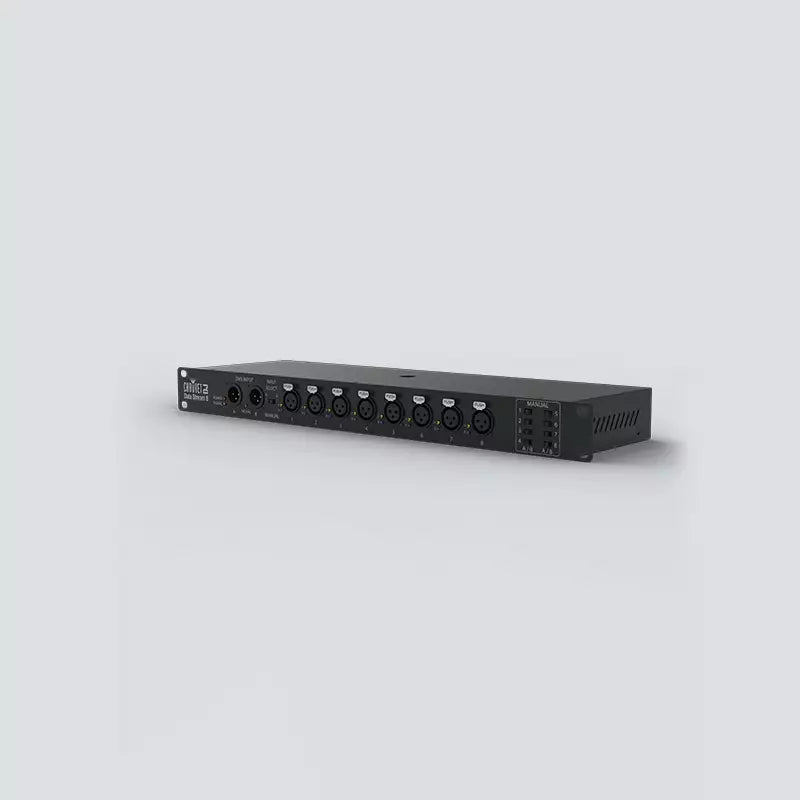

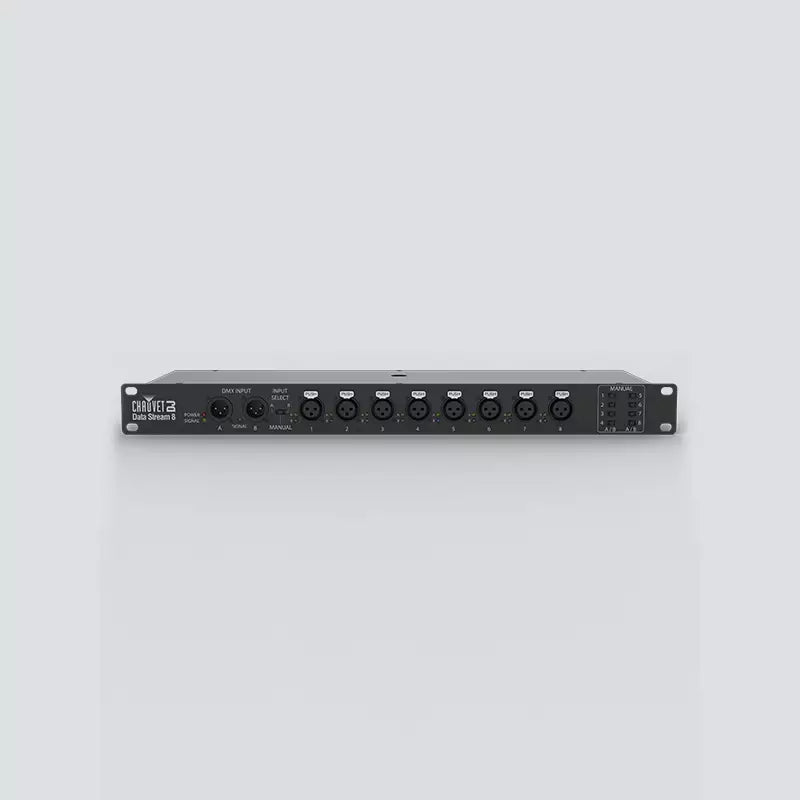

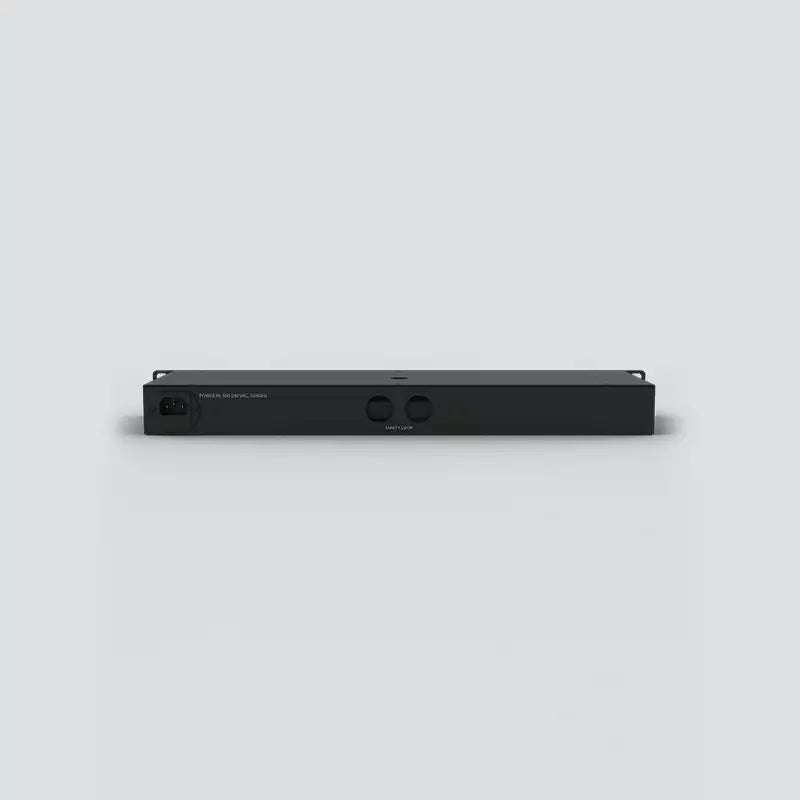

Data Stream 8 DMX Splitter

Regular price $479.99
Regular price Sale price $479.99
Sold out
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

Looking for a flexible, dual universe DMX splitter with simple controls?  The Data Stream 8 offers that, in a rack-mount and hangable design!

From the Manufacturer:

Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.

In the Box:

  • (1) Data Stream 8
  • (1) IEC Power Cable

Features:

  • Flexible DMX splitter provides up to 8 outputs from dual inputs
  • Each input can be used simultaneously and sent to any output
  • Master 3-position switch quickly sends A or B input to all 8 outputs
  • Individual 2-position switches send data from either the A or B input
  • Optically isolated outputs provide protection in the event of a short
  • Threaded insert safely secures to overhead truss

    Tech Specs

    Control

    DMX 3-Pin Connectors?: Yes

    DMX 5-Pin Connectors?: No

    Physical:

    Length: 19 in

    Width: 5.2 in

    Height: 1.7 in

    Weight: 4.6 lb

    Electrical

    Voltage Range: 100 - 240 VAC 50/60Hz

    Maximum Wattage: 2w

    Power Cable Connector - Fixture Side: IEC

    Main Power Connector on Included Cable: Edison
