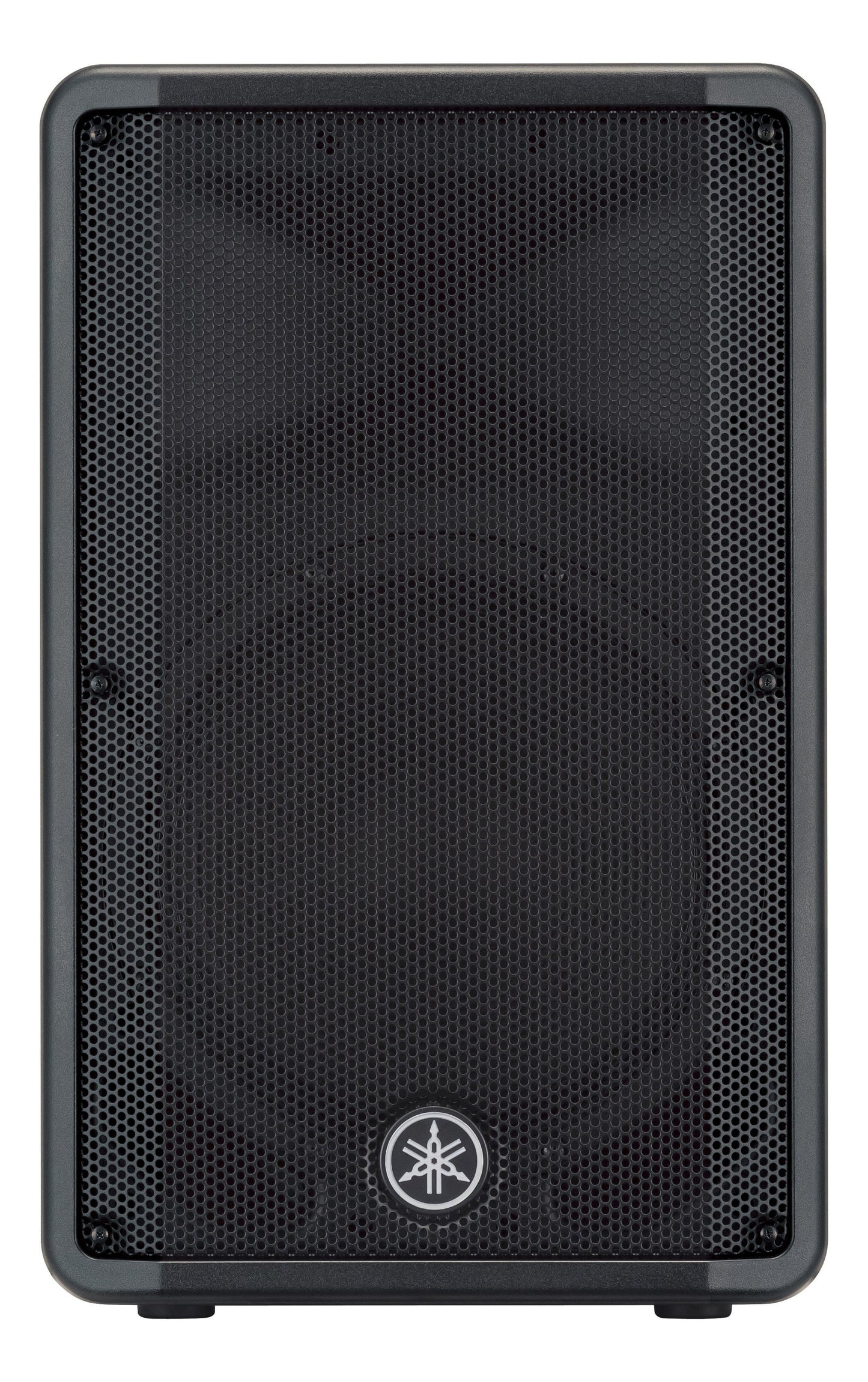

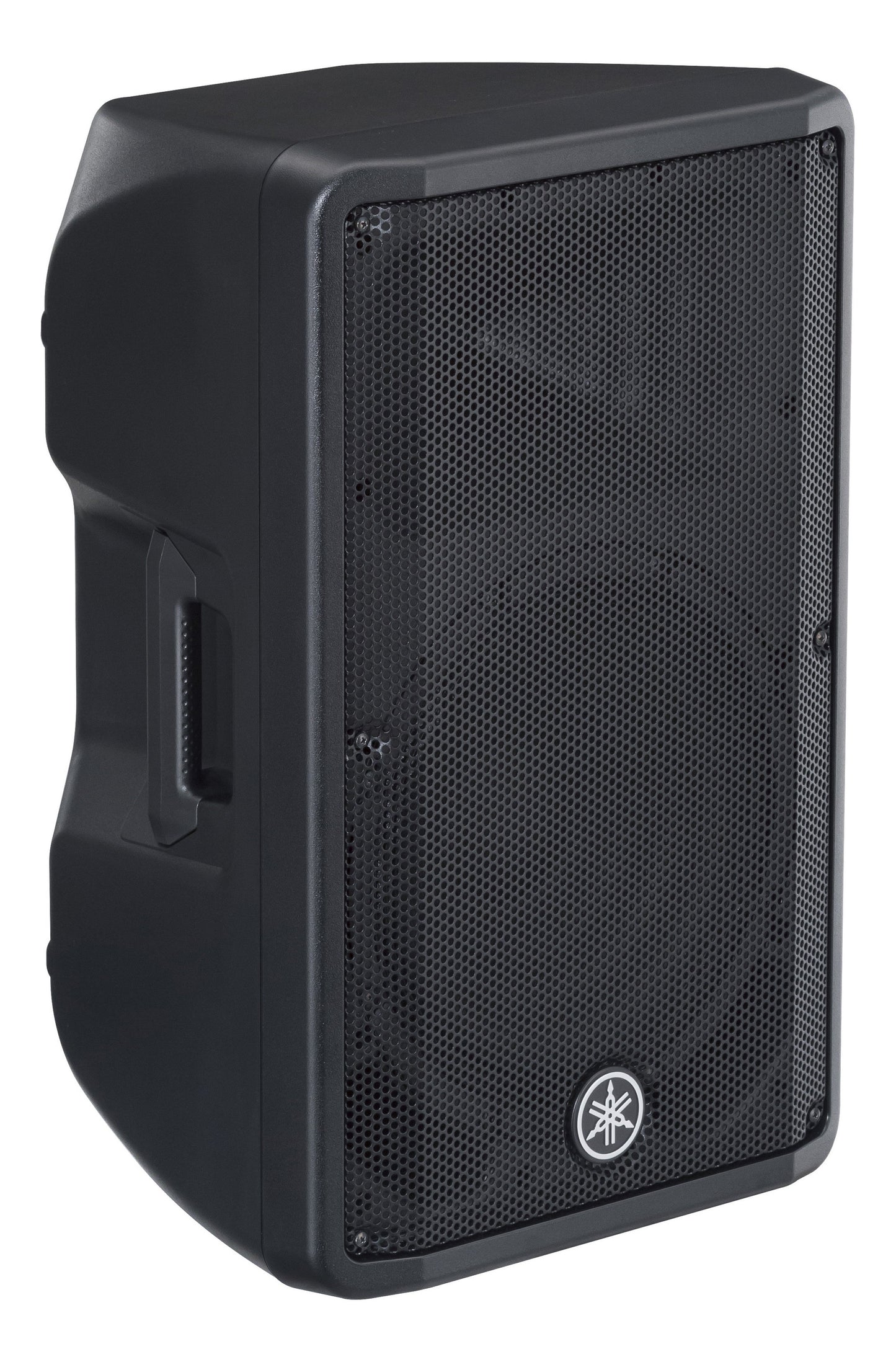

DBR12

The Yamaha DBR12 balances size and performance for outstanding resolution at any output, ideal for front of house or floor monitoring.

From the Manufacturer:

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier, and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

Features:

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

Specifications:

• Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 52Hz – 20kHz
• Nominal coverage:
  • H: 90°
  • V: 60°
• Components:
  • LF: Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
  • HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
• Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
• Output power: Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
• Maximum output level (1m; on axis): 131dB SPL
• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Heat dissipation: Fan cooling, 4 speeds
• Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
• Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
• Cabinet material: Plastic
• Finish: Black
• Handle: Side x 2
• Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
• Pole socket: 35mm (Bottom x 1)
• Dimensions:
  • W: 376mm (14.8")
  • H: 601mm (23.7")
  • D: 348mm (13.7")
• Net weight: 15.8 kg (34.8 lbs)
