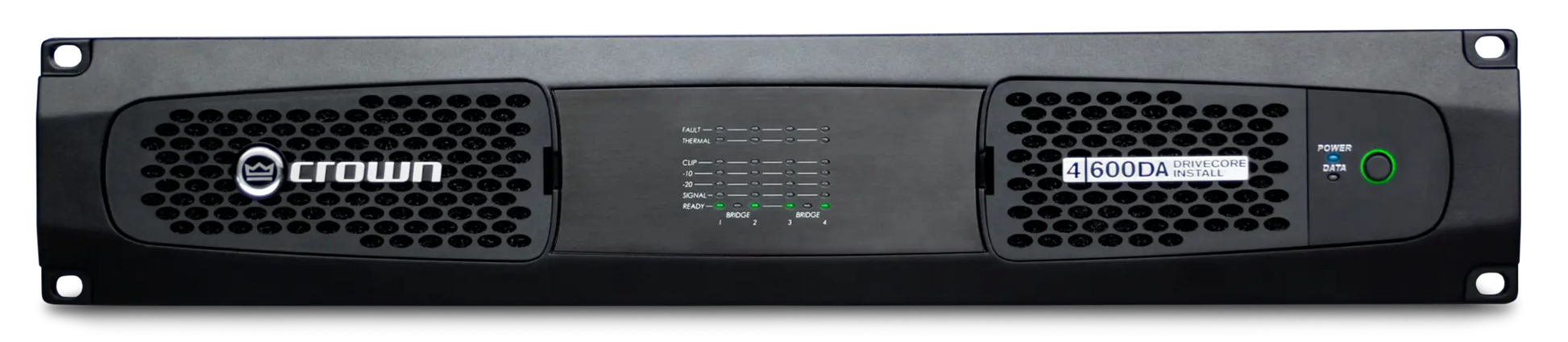

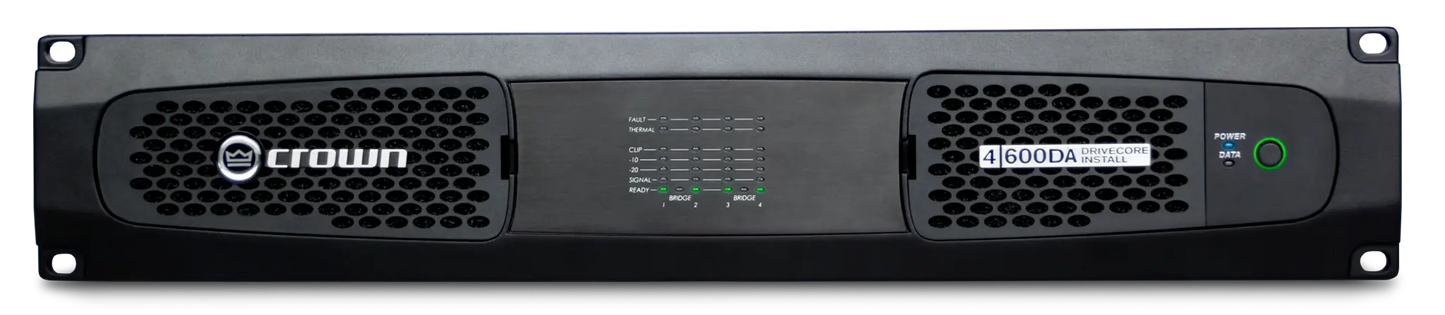

DCI4X600DA

The DCI4X600DA is a 4 channel, professional speaker amplifier. It is a great option for medium sized installs.

From the Manufacturer:

For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp’s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport.

Details:

• Redundant, independent Dante / AES67 ports

• Primary & Secondary

• Will accept 48khz or 96khz

• Capable of sending out Dante / AES67 audio from analog inputs pre/post processing (@ 48kHz)

• Audio Architect Control and Monitoring

• DriveCore Amplifier Technology

• Universal PFC Power Supply

• DSP

• 48kHz processing

• 20 Presets

• Input router

• High, medium, and low priority inputs

• Input delay up to 2s

• Input EQ

• Crossover

• Output EQ

• Output Delay up to 100ms

• LevelMAX limiter

• Load Monitoring

• Pilot tone

• Normal

• Burst

• Continuous Load Monitoring

• Sweep Load Monitoring

• Channel Auto-Standby

• Speaker Tunings

• Aux-Port

• Sleep contact closure

• Amp Status output

• Removable air filters

• Front panel LED indicators

• AES67 Compatible

Features:

• Integrated Dante™ / AES67 Networked Audio

•  Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.

• Network Configuration, Monitoring & Control

• Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP networks. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.

• Programmable General Purpose Input/Output Port

• GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control systems.

• Digital Signal Processing – DSP capabilities include the following:

• LevelMAX Limiters

• Input/Output EQ

• Crossover

• Delay

• Matrix Router

• Speaker Line Monitoring

Specifications:

• Output Channels

• 4

• Frequency Response (8Ω, 20Hz - 20kHz)

• ±0.25dB

• Total Harmonic Distortion (at full rated power, 20Hz - 20kHz)

• 0.35%

• Damping Factor (20Hz to 100Hz)

• >1000

• Load Impedance (Stereo/Dual Mode)

• 2Ω - 16Ω; 70Vrms and 100Vrms

• Load Impedance Bridge Mono

• 4Ω - 16Ω; 140Vrms and 200Vrms

• Cooling

• Continuously variable speed forced air, front to back airflow

• Maximum Fan Noise (re dBA SPL @ 1M)

• 45

• Required AC Mains (±10%)

• 100V-240V ~ 50/60Hz

• Power Connector

• 15A IEC

• Dimensions (W x H x D)

• 483 mm x 89 mm x 362 mm

• 19 in x 3.5 in x 14.25 in

• Weight

• 9.12 kg (20.1 lbs)
