Sku:
5061
Deco Drive CV1
Regular price
$294.00
Regular price
Sale price
$294.00
Unit price
per
Shipping calculated at checkout.
Vendor: Mega Lite
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
Mega Lite's Deco system is a great houselight system for lower ceilings that you can install without an electrician in many municipalities. This is a single-output driver that can control/power (5) of the pendant, sconce, or recessed lights.
From the Manufacturer:
Using our innovative approach to simplify the need for multiple drivers, the DECO Drive CV1 was designed to control our popular DECO Series. This all in one solution features 1 output that gives users the ability to power up and control some DECO products at once.
Each output can be individually configured and addressed in any preferred channel. This powerful driver has a max power of 96W. Designed to fit in compact spaces, it features a tear drop wall mount design that allows it to be installed in small areas and take up minimal space. Simplify your next project with the DECO Drive CV1!
From the GEAR Pro's:
We really like the Mega Lite Deco series for a few reasons. They're an affordable, high-quality LED houselight that runs on Cat6a cable (23awg). They offer a variety of different fixtures including recessed cans, pendants, sconces and more, and in most places you can install them yourself.
Mega Lite Deco systems consist of the DMX driver and the lights themselves. Each driver can control a different amount of lights, this one can control 5 of the pendant, sconce, or recessed lights on (1) run of cable. All (5) lights will have the same DMX address and be controlled together. The Deco system also offers some other form factors of lights, which vary in wattage.
If you're looking to put a system together, let us know by filling out a quote request! We can help you determine how many drive boxes you need (and which ones), based on the amount of lights and layout you are doing.
Video Review:
In the Box:
- (1) Deco Drive CV1
- (1) 5 Pin Screw Terminal Block
- (1) 2 Pin Screw Terminal Block
Features:
- Outputs: 1 x 96W
- Output Voltage: 24 VDC

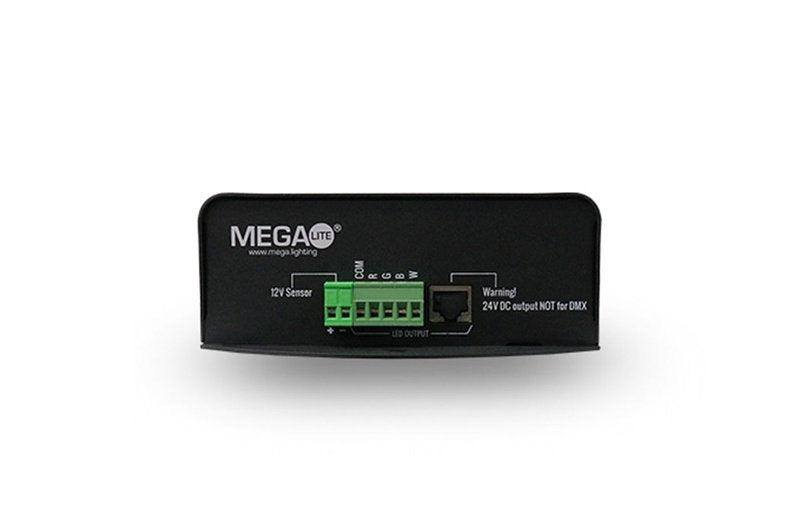

- Output Connection: Screw Terminal or RJ45
- Cooling: Convection
- Display: Digital
- Control Protocol: DMX
- Operating Modes: DMX, Standalone
Tech Specs
Control
DMX Channel Modes: 1 / 2 / 3 / 4 / 7
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 11.94 in
Width: 5.88 in
Height: 2.13 in
Weight: 3.75 lb
Electrical
Voltage Range: 110 - 240 VAC 50/60Hz
Maximum Wattage: 96w
Main Power Connector on Included Cable: Edison
