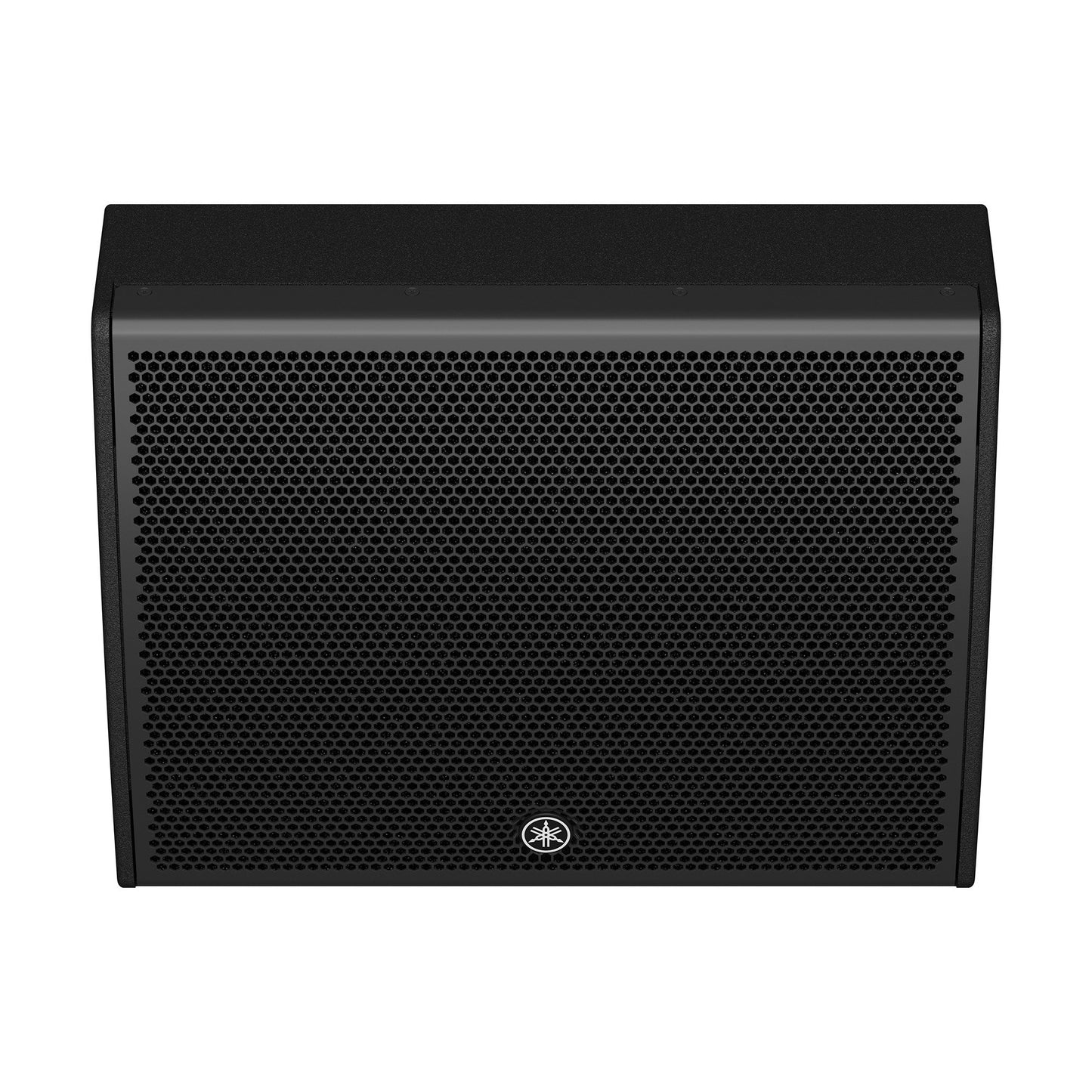

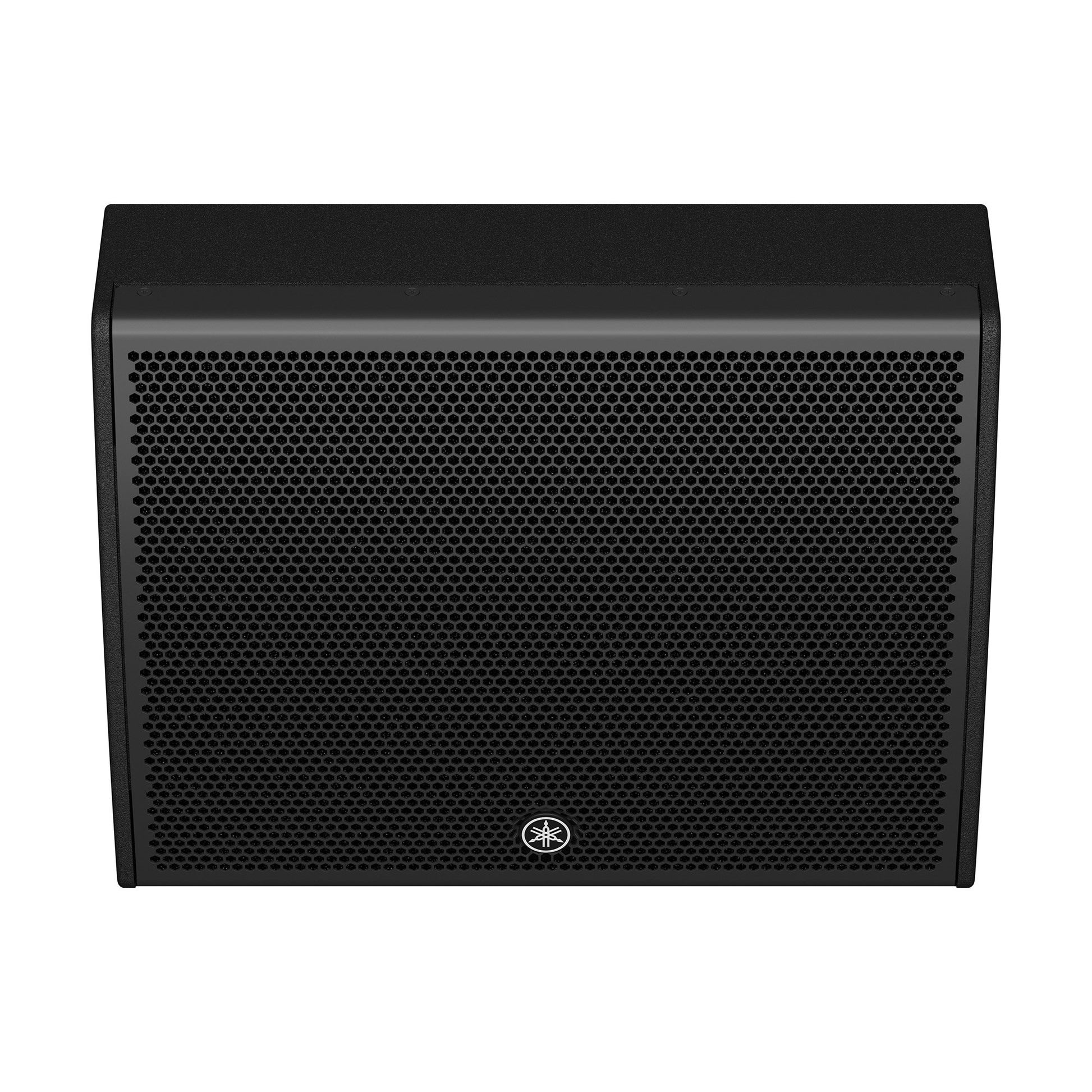

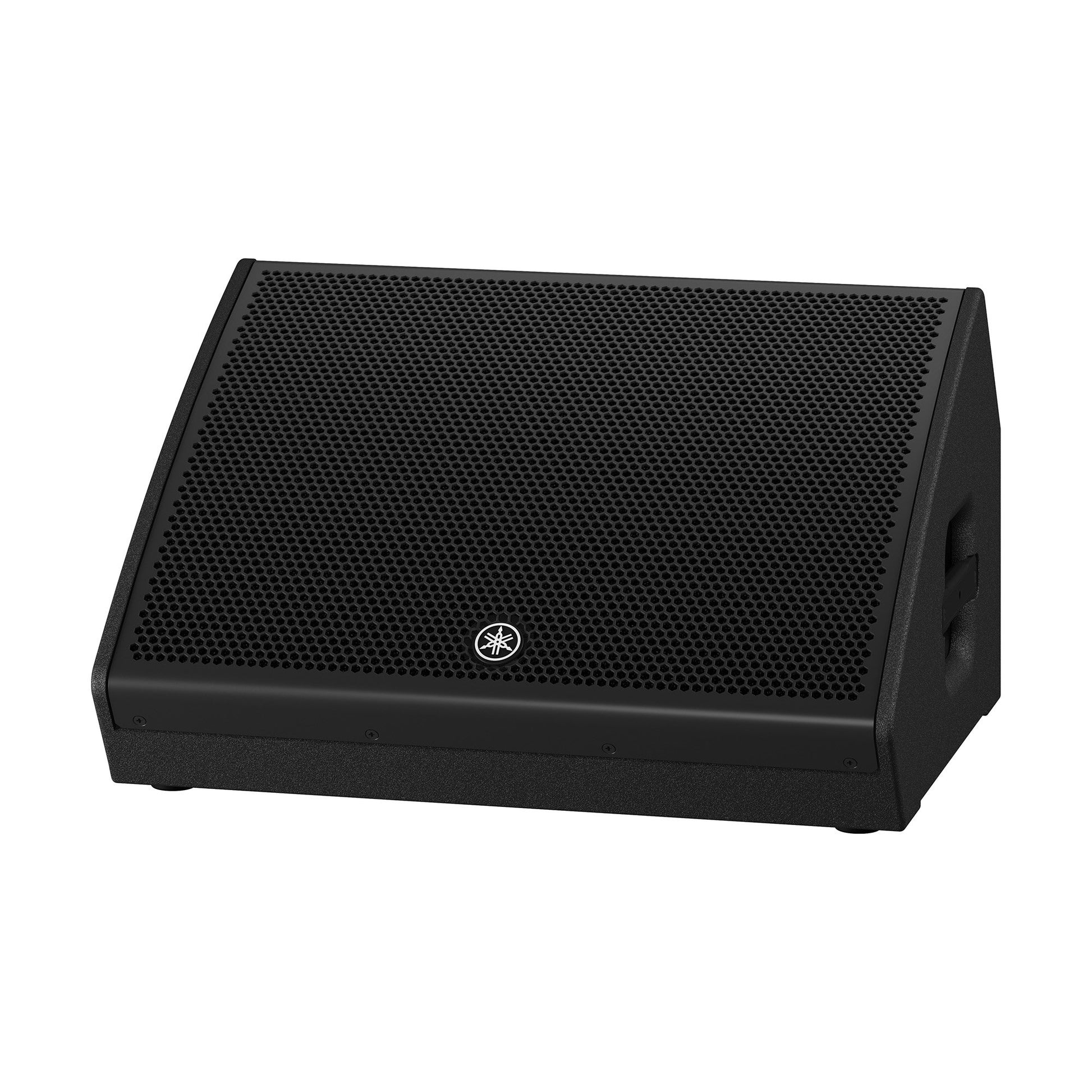

DHR15M

The Yamaha DHR15M 2-way bi-amp powered loudspeaker with 15" woofer is perfect to use as a floor monitor.

From the Manufacturer:

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with DHR10 and DHR12 for fixed installation and utilities, DHR12M and DHR15M designed for use as floor monitors, and DHR15 for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, this series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?

Features:

The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on our high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Specifications:

• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 50 Hz - 20 kHz
• Coverage area: H65ﾟ x V75ﾟ
• Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL
• Components:
  • LF: Diameter: 15" cone, Voice Coil: 3", Magnet: Ferrite
  • HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
• Amplifier class: Class-D
• Power rating: Dynamic: 1,000 W (LF: 800 W, HF: 200 W)
• Continuous: 465 W (LF: 400 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power consumption: 74 W (1/8power), 18 W (Idle)
• Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz:
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

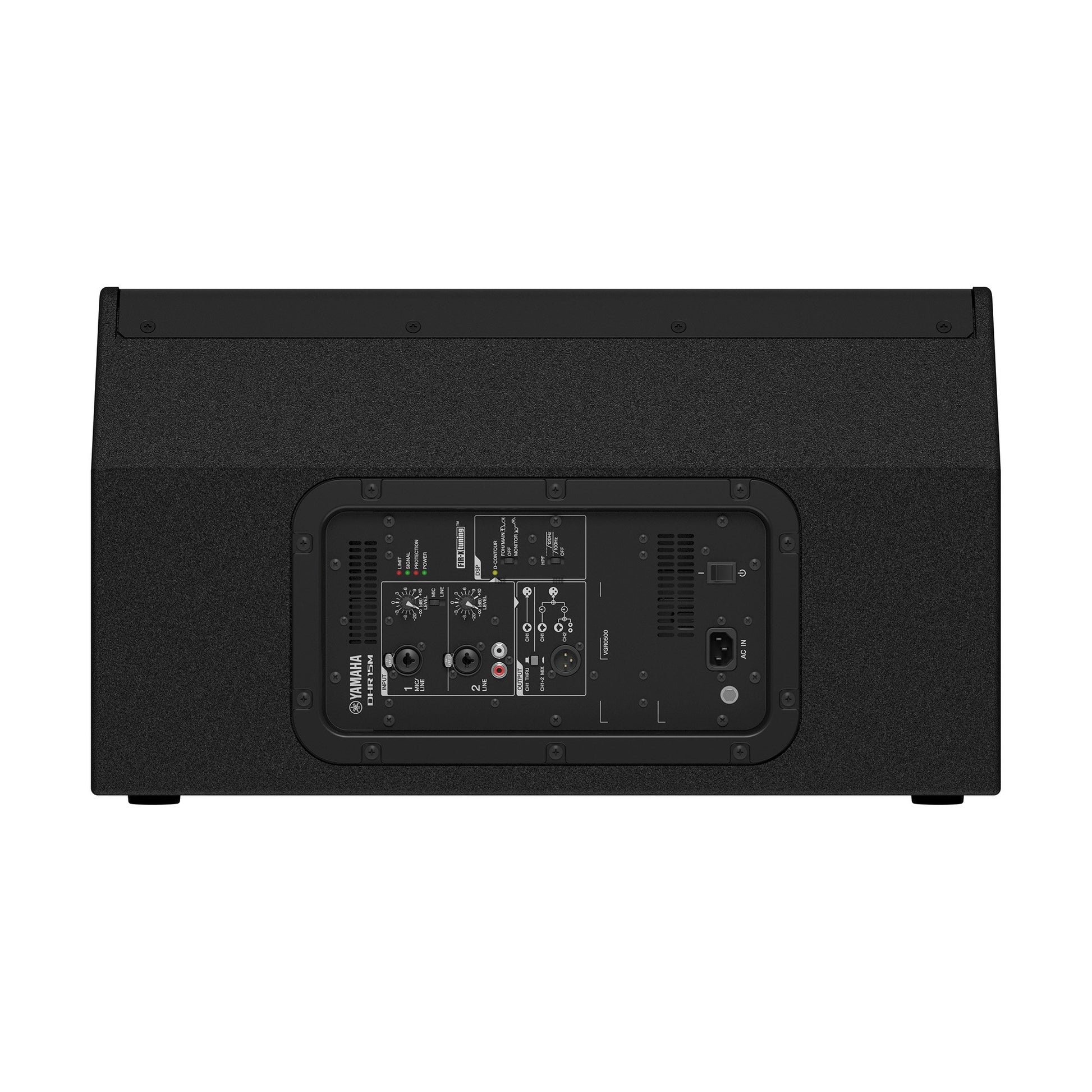

• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material: Plywood:
• Finish: Durable Polyurea Painting, Black

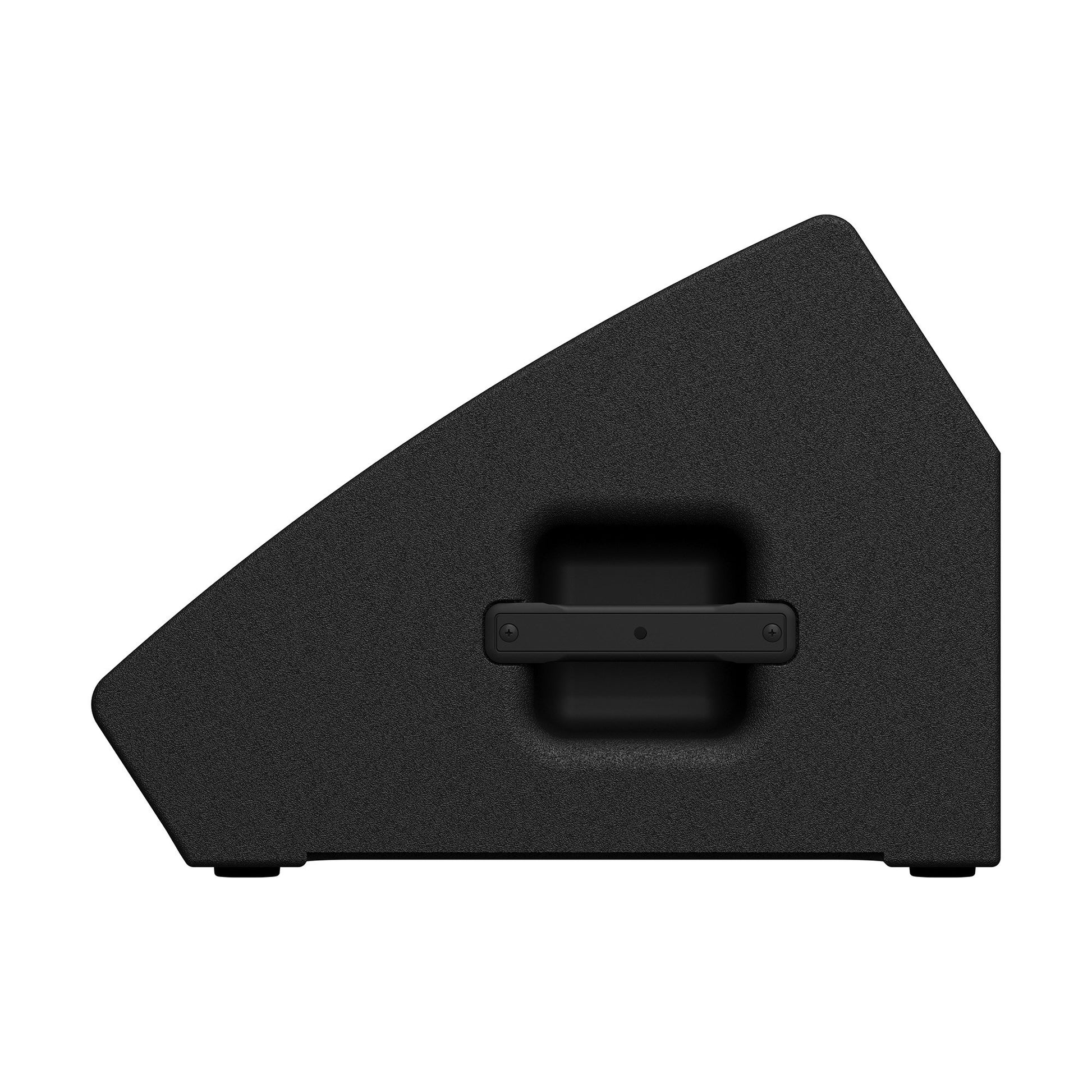

• Handle: Side x1
• Pole socket: Φ35 mm x1 (Side)
• Floor Monitor Angle: 57°
• Dimensions:
  • W: 642 mm (25.3")
  • H: 369 mm (14.5") (with rubber feet)
  • D: 505 mm (19.9")
• Net weight: 23.0 kg (50.7 lbs)
