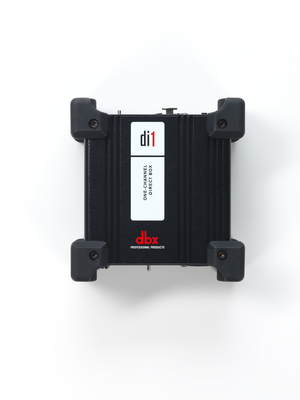

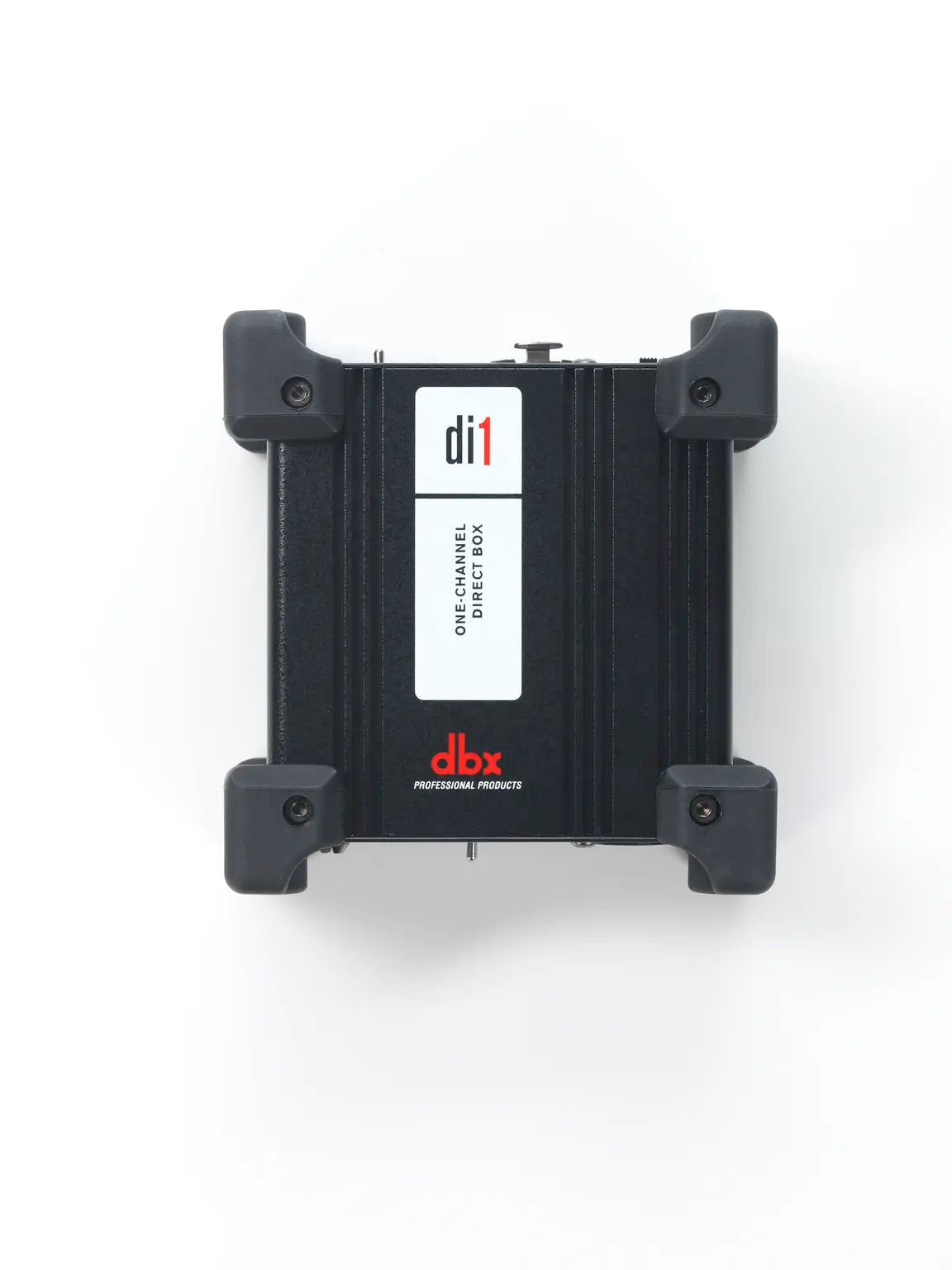

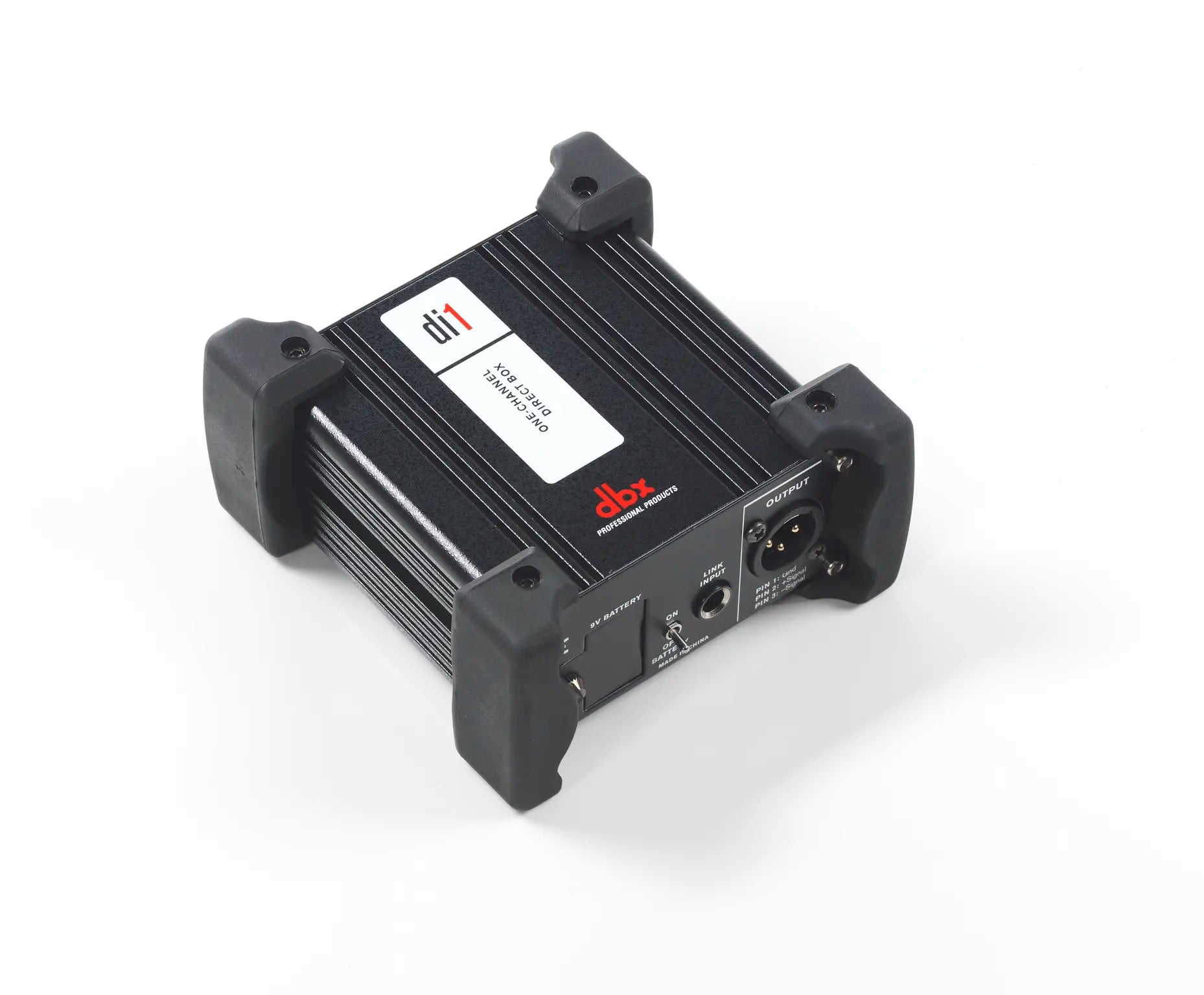

DI1

The dbx DI1 is a compact, high-quality active direct box for studio or live use. It lets instruments like guitars, basses, and keyboards connect directly to a mixer in a balanced, noise-free signal and is built tough for reliable gig-ready performance.

From The Manufacturer:

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.

Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.

Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.

Features:

• Level and impedance matching function

• Output impedance: > 600 Ohms

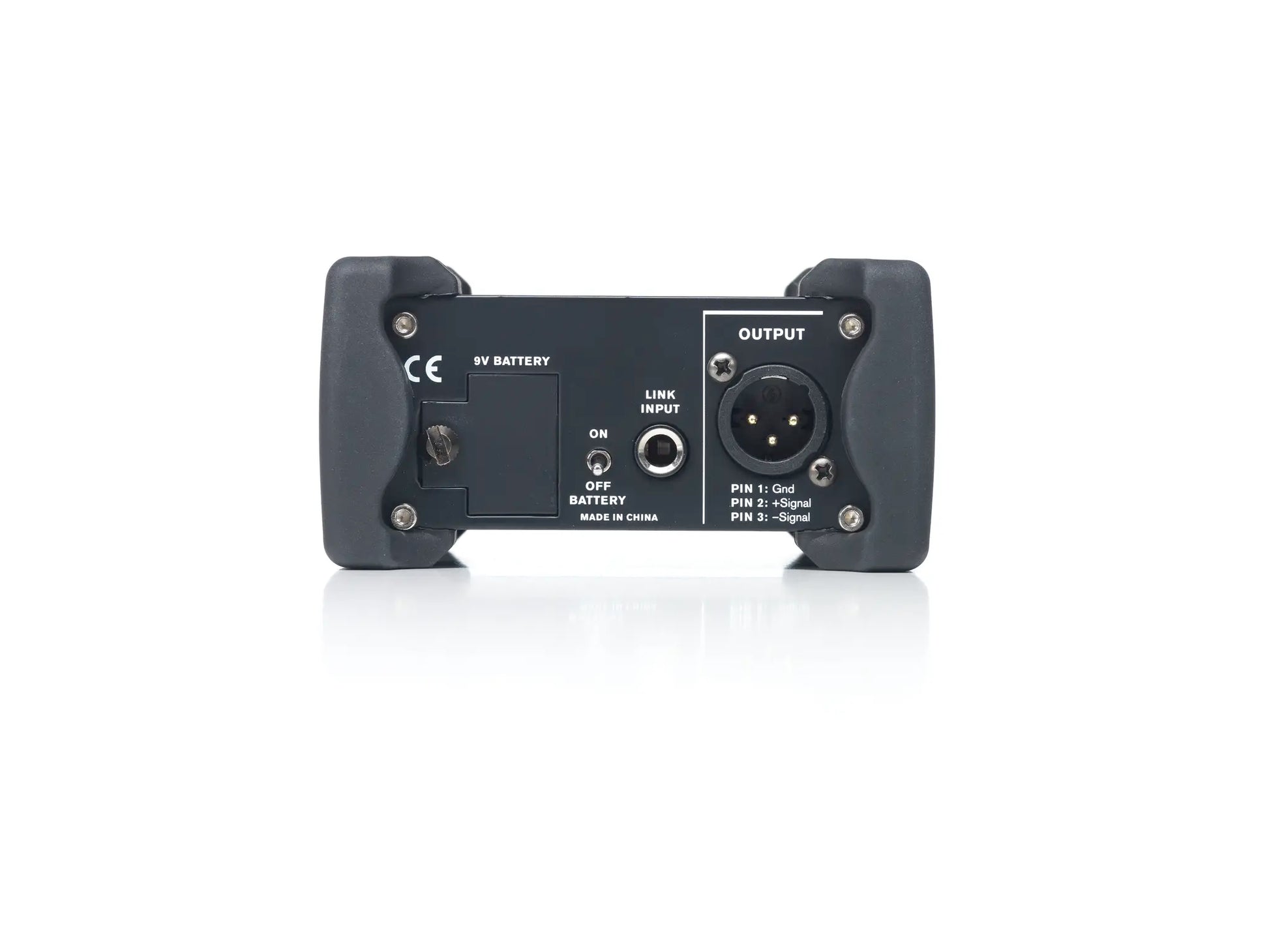

• Signal pass through connector

• Output connector: XLR balanced

• Battery LED indicator

• Distortion: (THD) < 0.005% at 1kHz, 0dBu

• Phantom power LED indicator

• Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)

• Output Noise: <-100dB unweighted

• TS and XLR inputs and outputs

• Frequency response: 10Hz to 70kHz, +0dB/-3dB

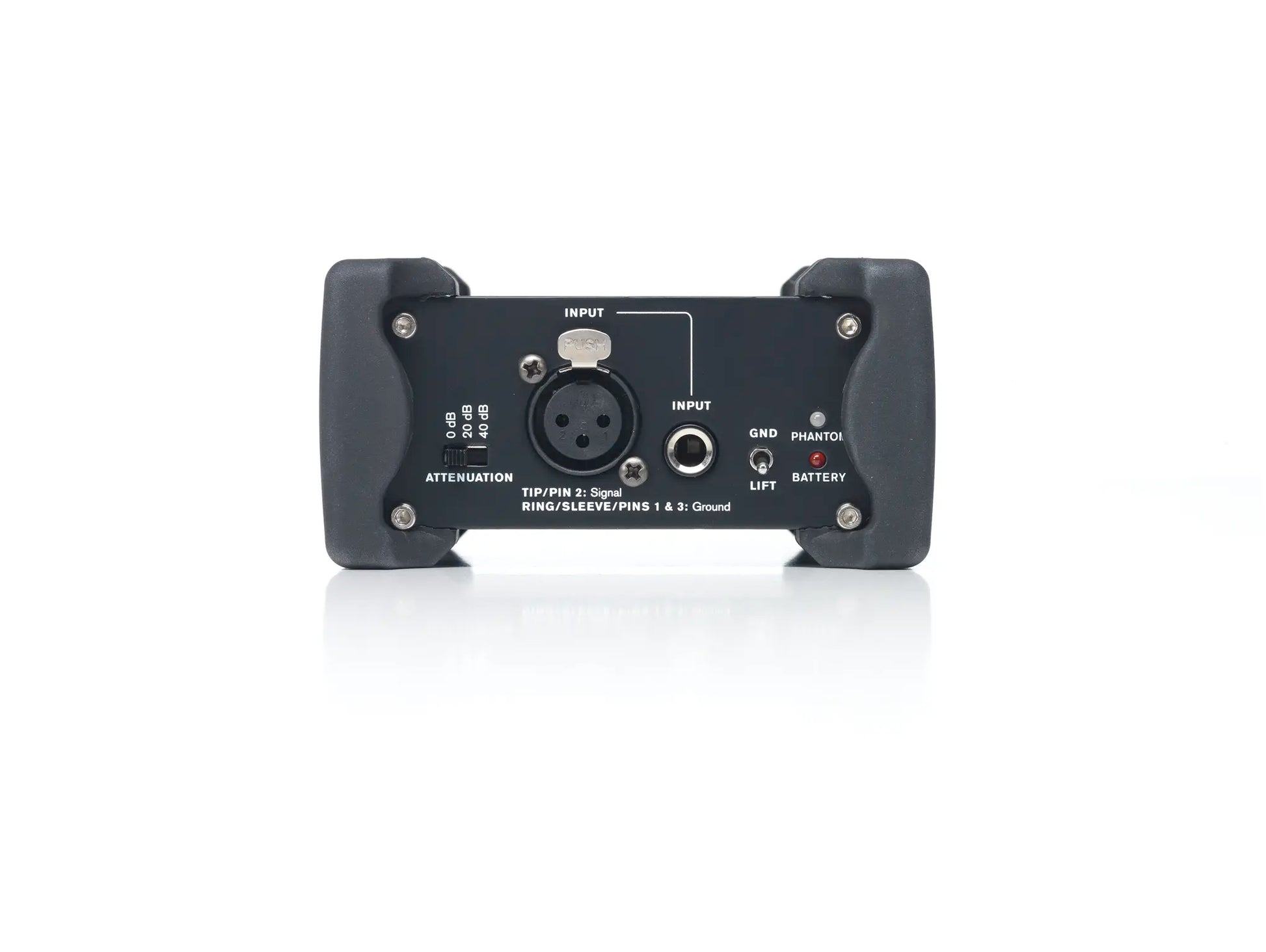

• Attenuation control

• Phantom Power: +18 volts DC to +48 volts DC

• Ground lift switch

• Main/Standby: 9V battery

• Input Impedance: >250k Ohm

• Metal Chassis

Specification:

• Input Impedance

• > 250k Ohm

• Max Input

• +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)

• Connectors

• Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 & 3 Ground

• Output Impedance

• > 600 Ohms

• Output Connectors

• XLR balanced

• Distortion

• (THD) < 0.005% at 1kHz, 0dBu

• Output Noise

• <-100dB unweighted

• Frequency Response

• 10Hz to 70kHz, +0dB/-3dB

• Main/Standby

• 9 Volt battery

• Phantom Power

• +18 Volts DC to +48 Volts DC
