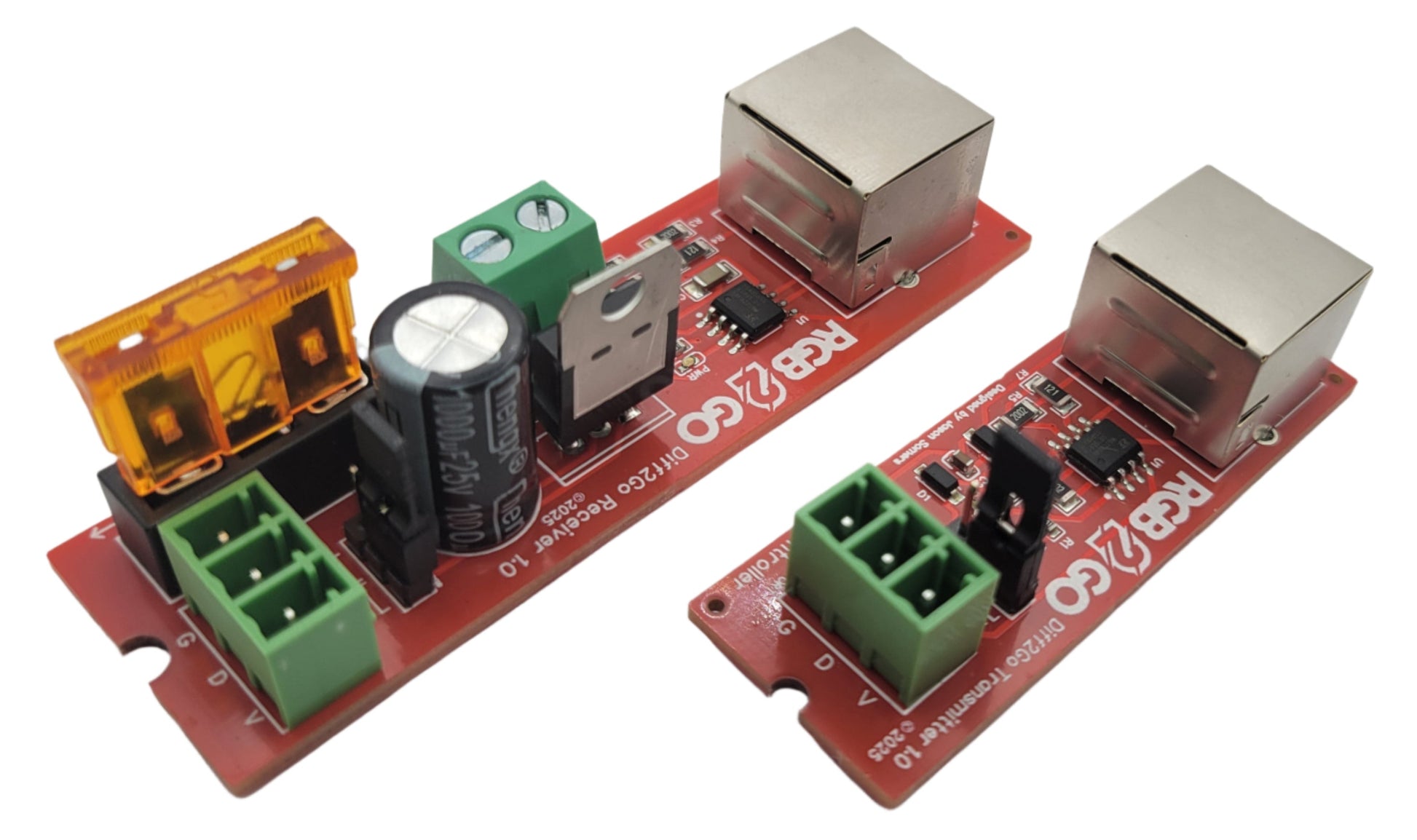

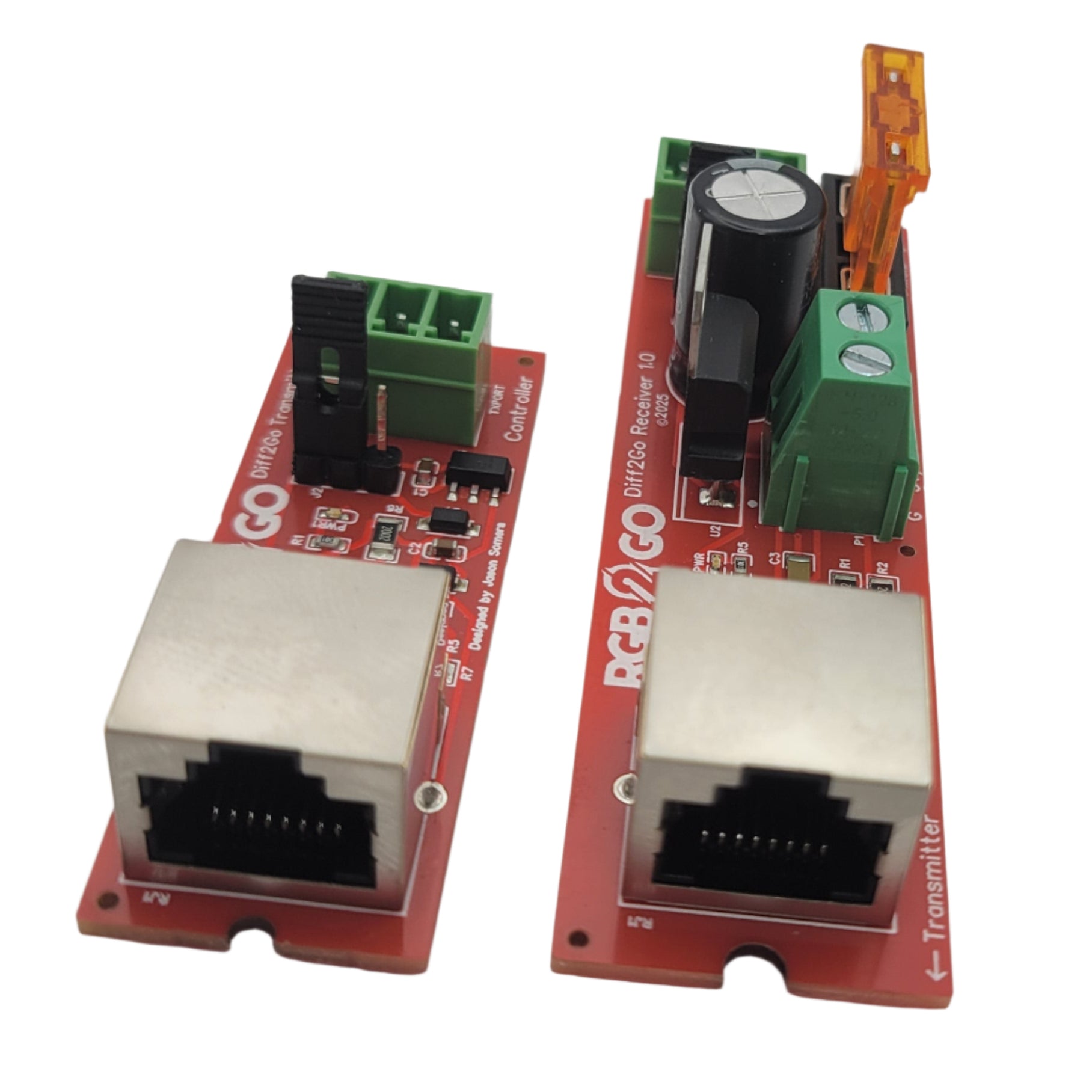

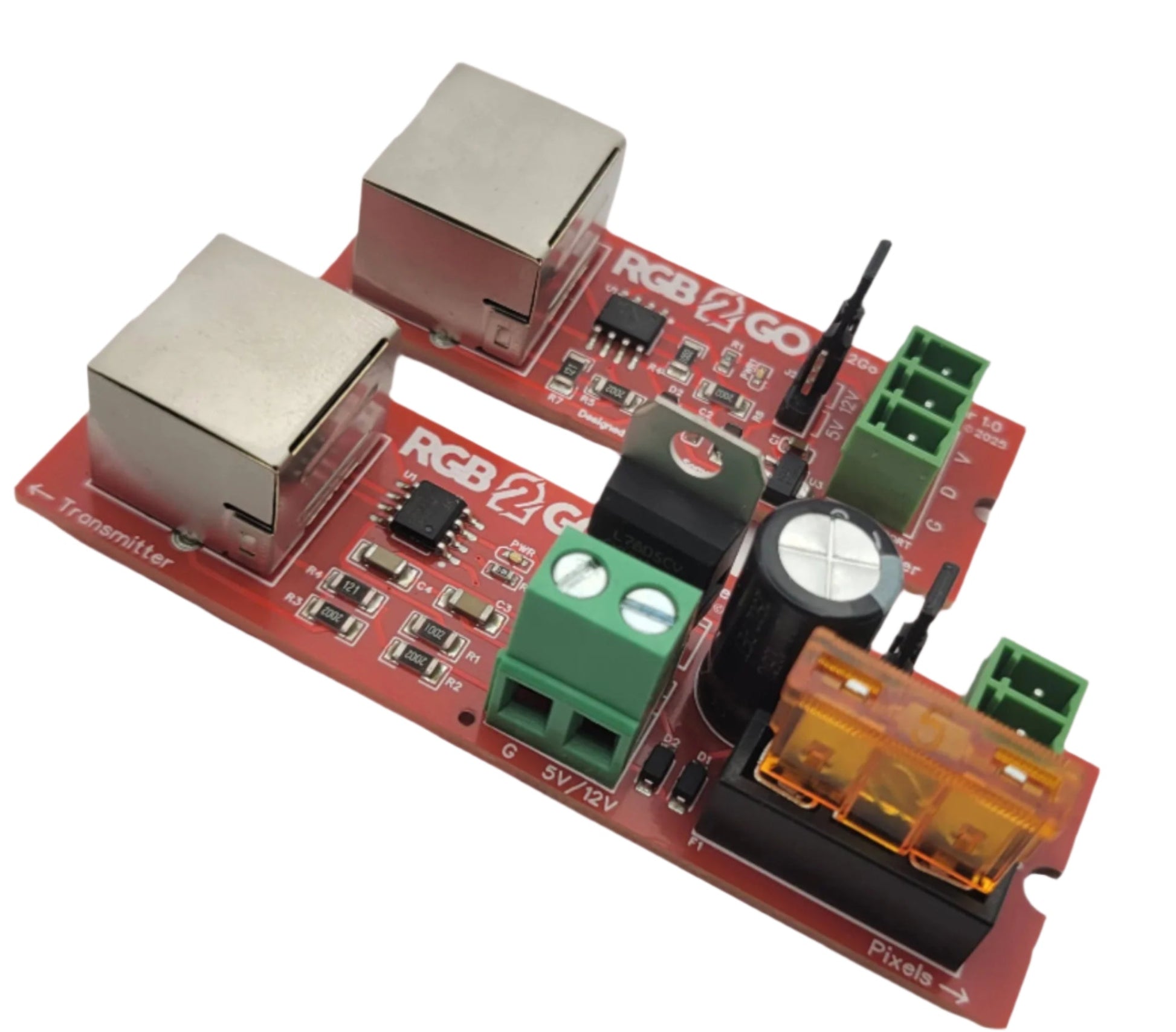

Diff2Go Differential Transmitter & Receiver Pair

Take ANY pixel port on ANY controller and turn it into a single differential port!

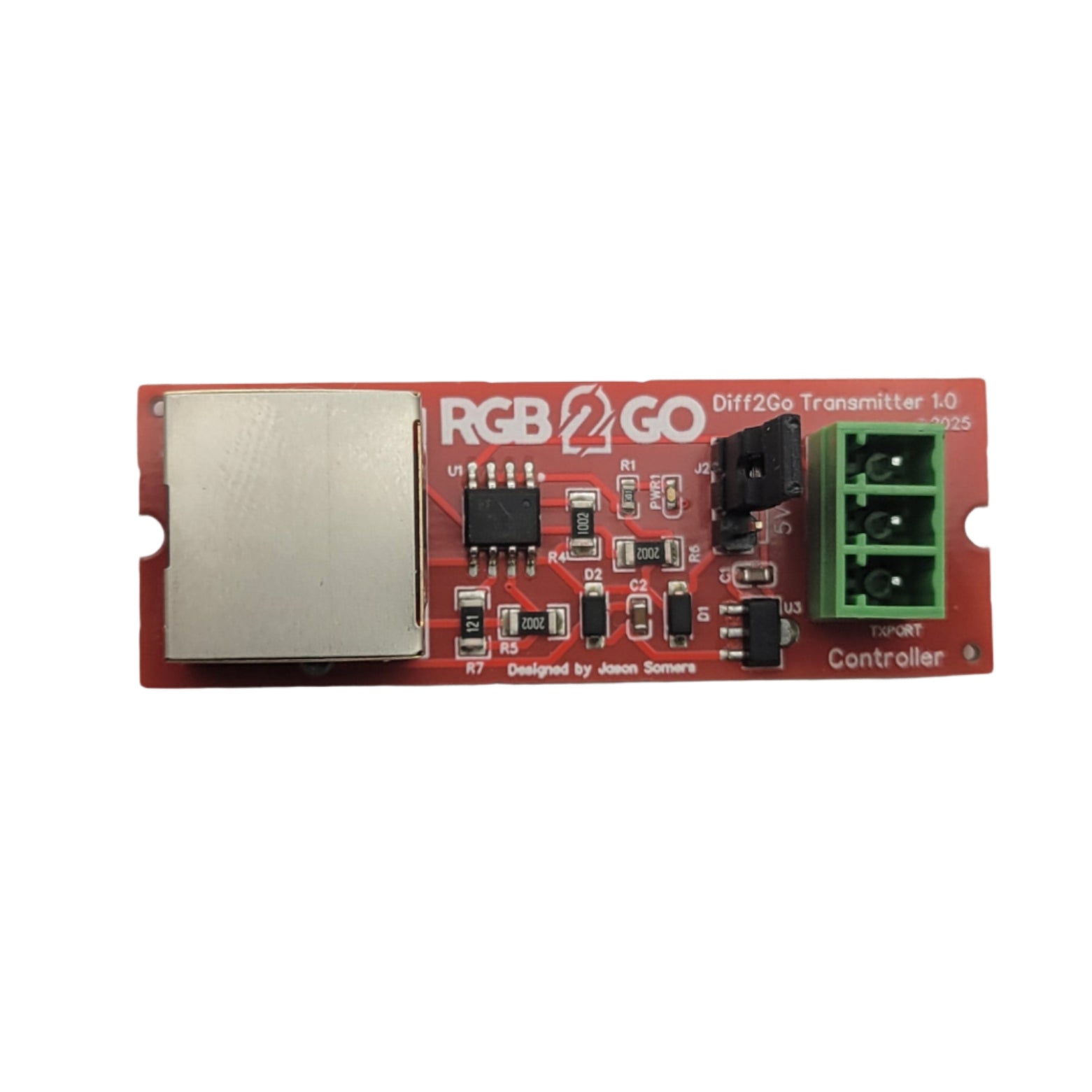

Transmitter converts pixel data to a differential signal via it's MAX485 chip.

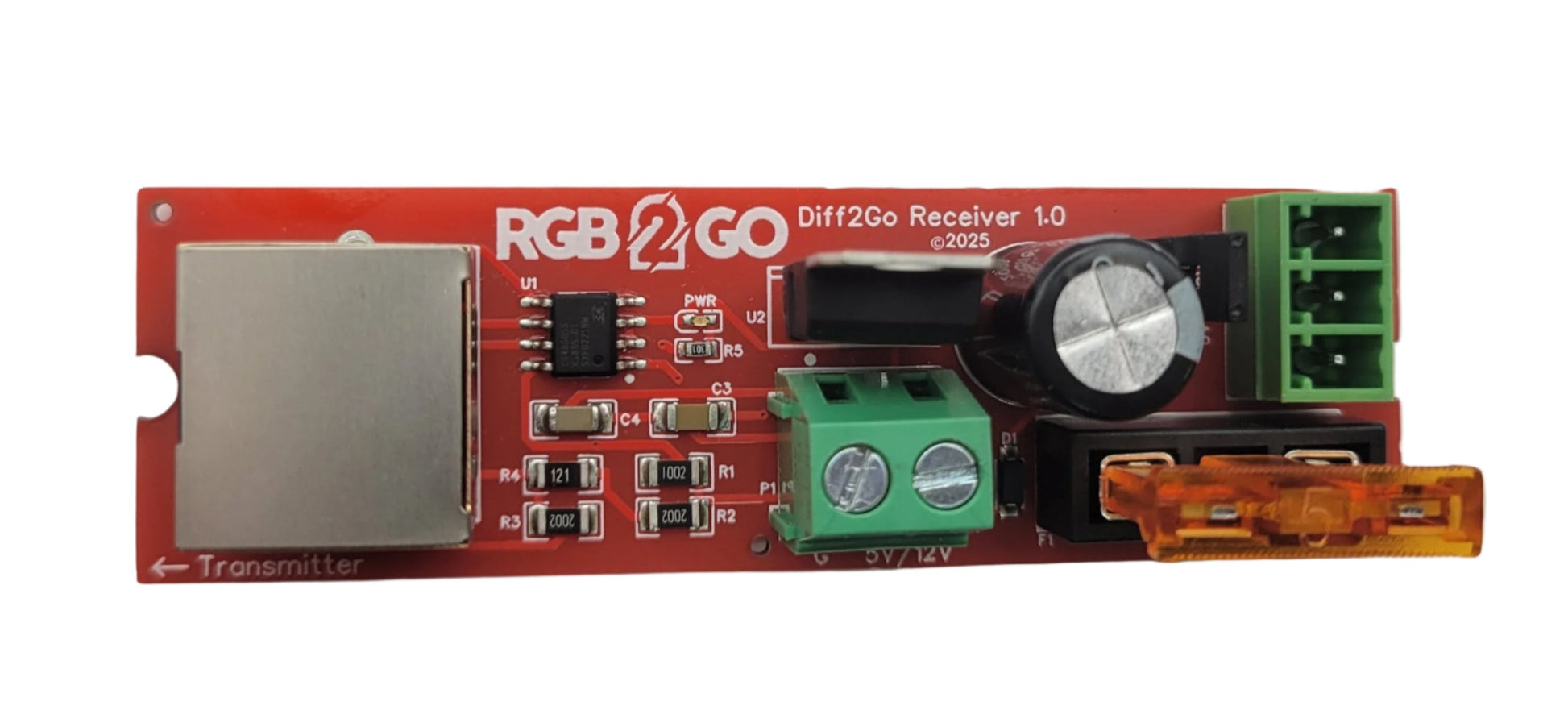

Receiver converts the differential signal back to pixel data.

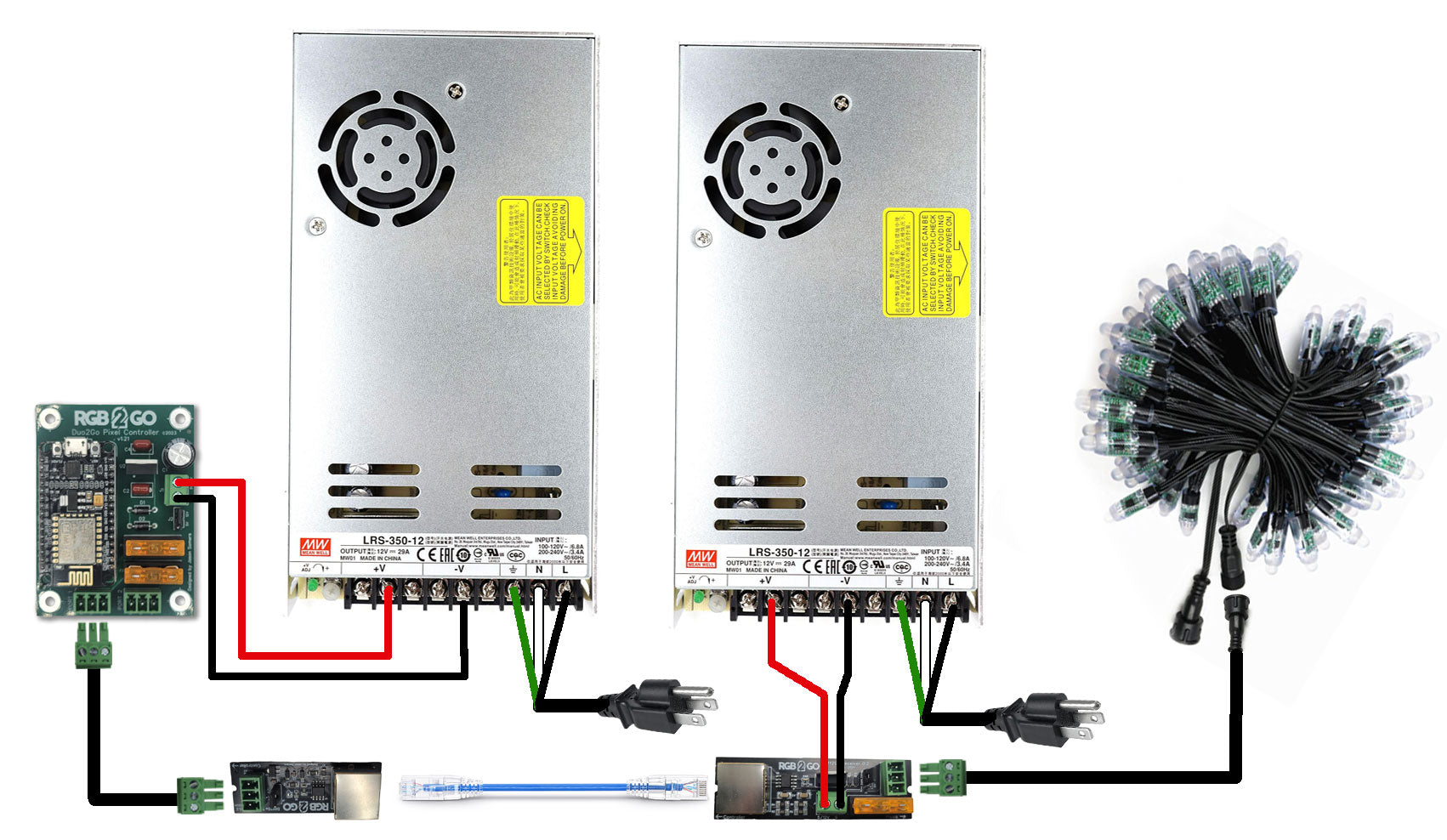

Transmitter and Receiver are connected via a user-supplied Ethernet cable (RJ45) that can be up to a maximum length of approximately 300ft.

NO POWER is carried along the Ethernet cable - only data. The receiver will require it's own connection to a DC power supply.
Both Transmitter and Receiver support 5V and 12V. (Selectable by a jumper)

Comes with:
1 x Single port Differential Transmitter
1 x Single port Differential Receiver
