Differential Module for Tetra2Go

Regular price: $14.99
Regular price
Sale price: $14.99
Unit price: per

Shipping calculated at checkout.

Vendor: RGB 2 Go

This item is in stock and ready to ship. Typical processing time is one business day.

Product variants

Description

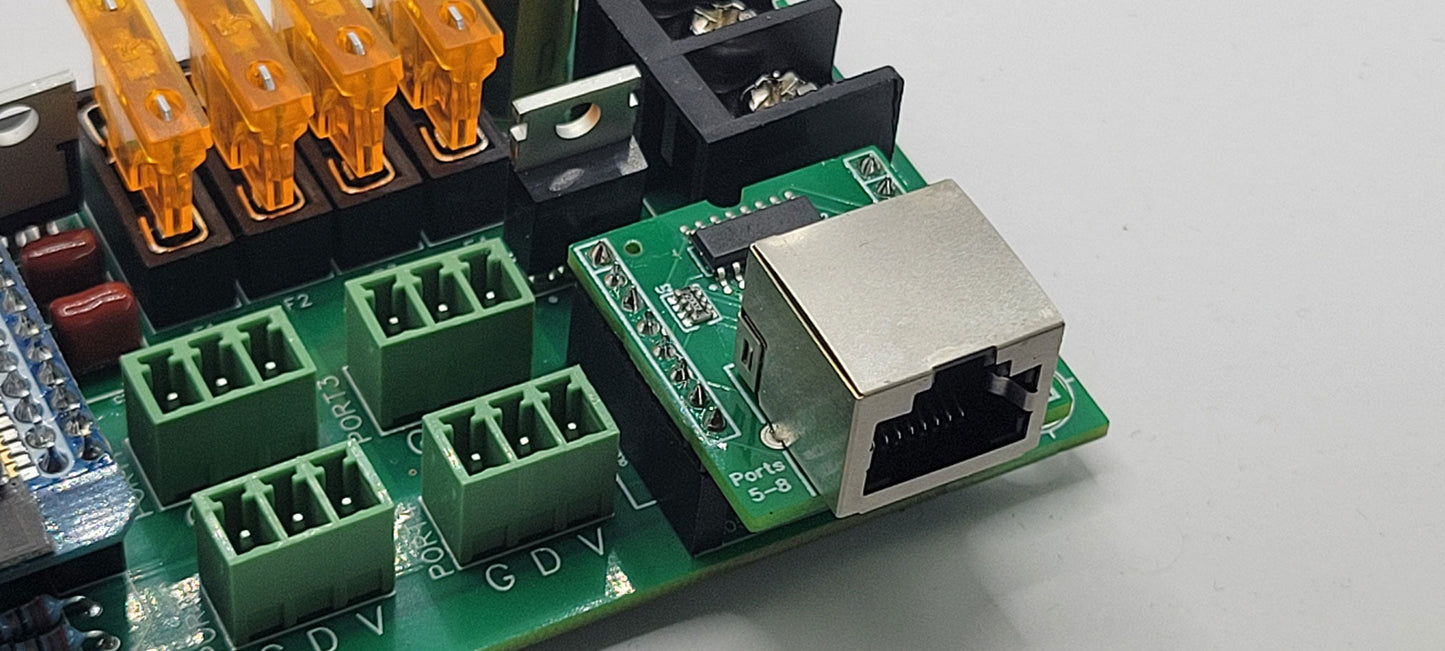

REQUIRES a Tetra2Go and a Differential Receiver - Sold Separately
(NOT compatible with the Duo2Go controller)

(Not "Smart" mode compatible! Can not be daisy chained.)
Currently tested with Falcon v1.01 Receivers - will be testing more soon)

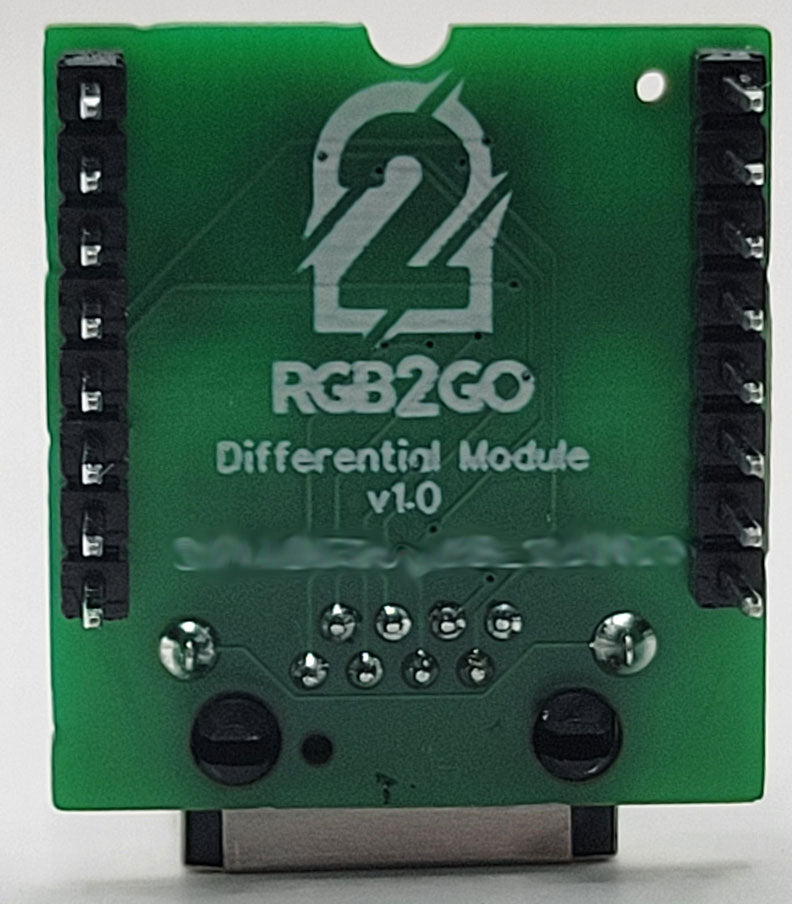

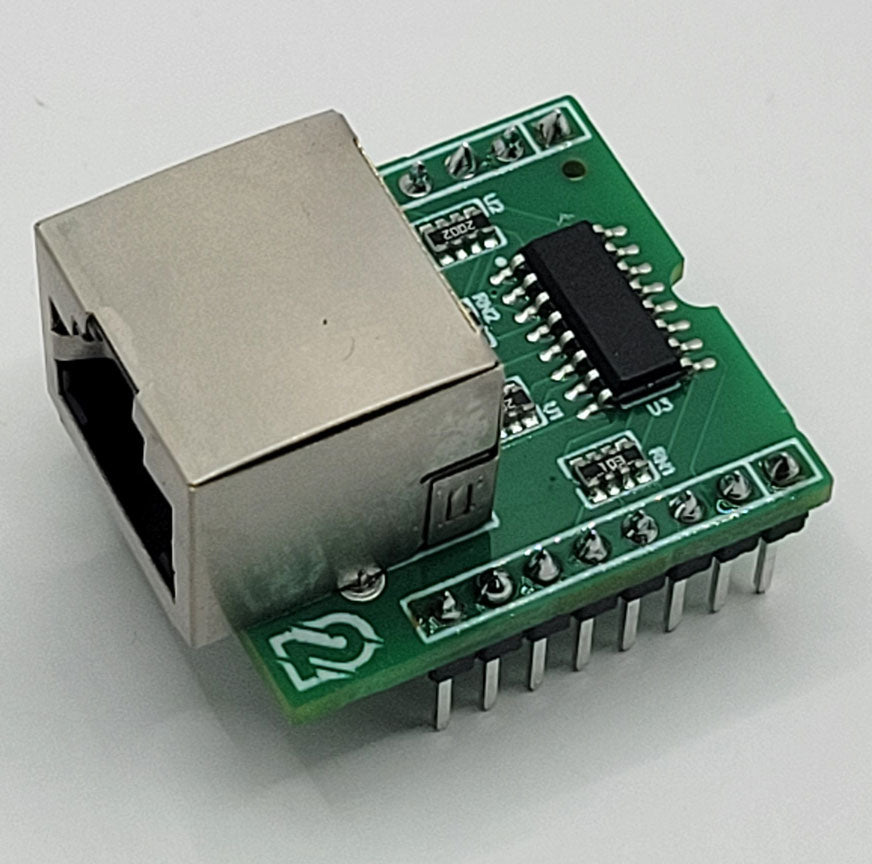

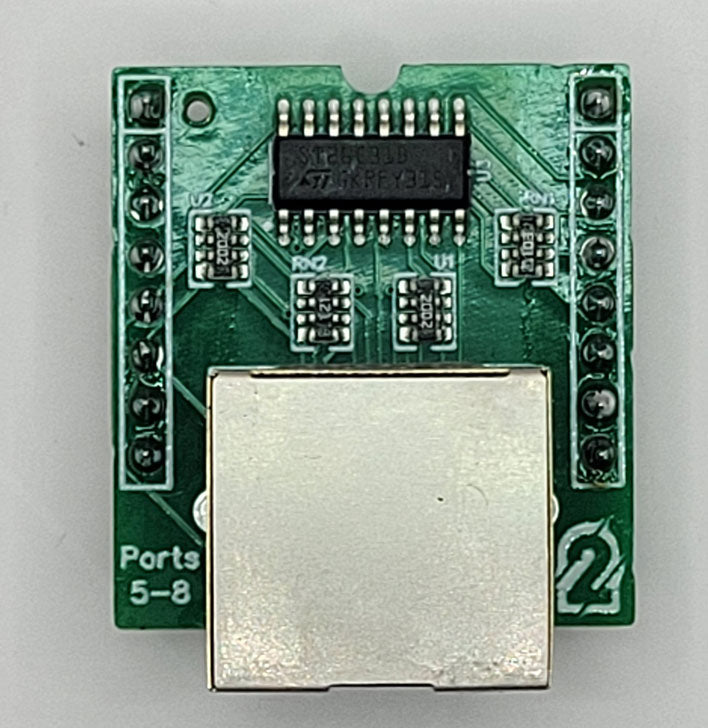

4-Port Differential Transmitter Module for Tetra2Go (For a total of 8 ports!)
MAX485 chipset-based Transceiver

Can function with vanilla WLED, but the GPIOs for the additional ports will need to be set.

Differential Outputs:
Port5: GPIO27
Port6: GPIO26
Port7: GPIO25
Port8: GPIO33

(These settings are set by default when using the provided WLED Differential image - included when purchased with Tetra2Go)

Pre-configured WLED image available here:
WLED_0.14.0_Tetra_Diff4.bin
