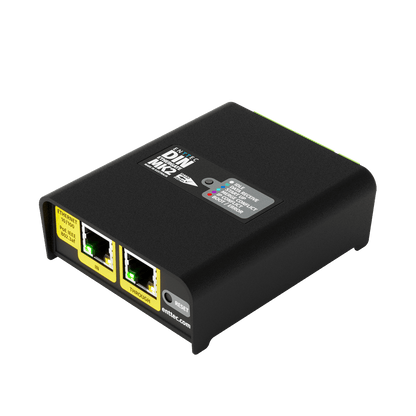

DIN ETHERGATE Mk2

The ENTTEC DIN Ethergate Mk2 is a 2-universe bi-directional Ethernet to DMX/RDM converter in a compact 4-module DIN-rail form factor, supporting Art-Net, sACN, KiNet, and ESP with PoE or 12–24V DC power input.

From the Manufacturer

The DIN Ethergate Mk2 is a reliable DMX node designed for architectural, commercial, and entertainment installations. It supports 2 universes of bi-directional DMX512-A conversion with Art-RDM, and Overdrive Mode enables control of up to 4,096 channels per port at higher transmission speeds of 500K, 750K, or 1000K for compatible fixtures. Dual Ethernet ports — one with PoE — allow easy daisy-chaining across an installation, while configuration and firmware updates are managed entirely through a localhost web interface accessible from any computer on the network. Its slim 4 DIN-module electrically-insulated housing supports both TS35 DIN-rail and surface mounting, and pluggable terminal blocks and built-in DMX termination simplify wiring on site.

All ENTTEC Ethernet hardware accepts sACN Sync and ArtSync to fully synchronize Art-Net data across all output ports and across the installation when receiving Art-Net from the same source. A 'Current Port Buffer' in the web interface allows live DMX values to be viewed for easy troubleshooting. Upon receiving power, the device is ready to operate within seconds. Note: Overdrive Mode (DMX500K/750K/1000K) is incompatible with standard DMX512-A fixtures and does not conform to ANSI E1.11 – 2024; use only with Overdrive-compatible fixtures.

Features

• 2-universe bi-directional Ethernet to DMX512-A/RDM conversion
• Overdrive Mode: up to 8 universes per port (4,096 channels) at 500K, 750K, or 1000K for compatible fixtures
• Accepts Art-Net (with RDM), sACN, KiNet, and ESP input protocols
• Art-Net merging from up to 2 sources
• sACN Sync and ArtSync support for synchronized multi-port output
• Dual RJ45 Ethernet ports for daisy-chaining; port 1 supports IEEE 802.3af PoE
• Flexible power: PoE (IEEE 802.3af) or 12–24V DC input
• Localhost web interface for configuration, live DMX monitoring, and firmware updates
• Pluggable terminal block connectors and built-in DMX termination for installer-friendly wiring
• DHCP or static IP configuration (default: 192.168.0.10)
• IGMPv2 support
• 4-module DIN-rail electrically-insulated ABS housing

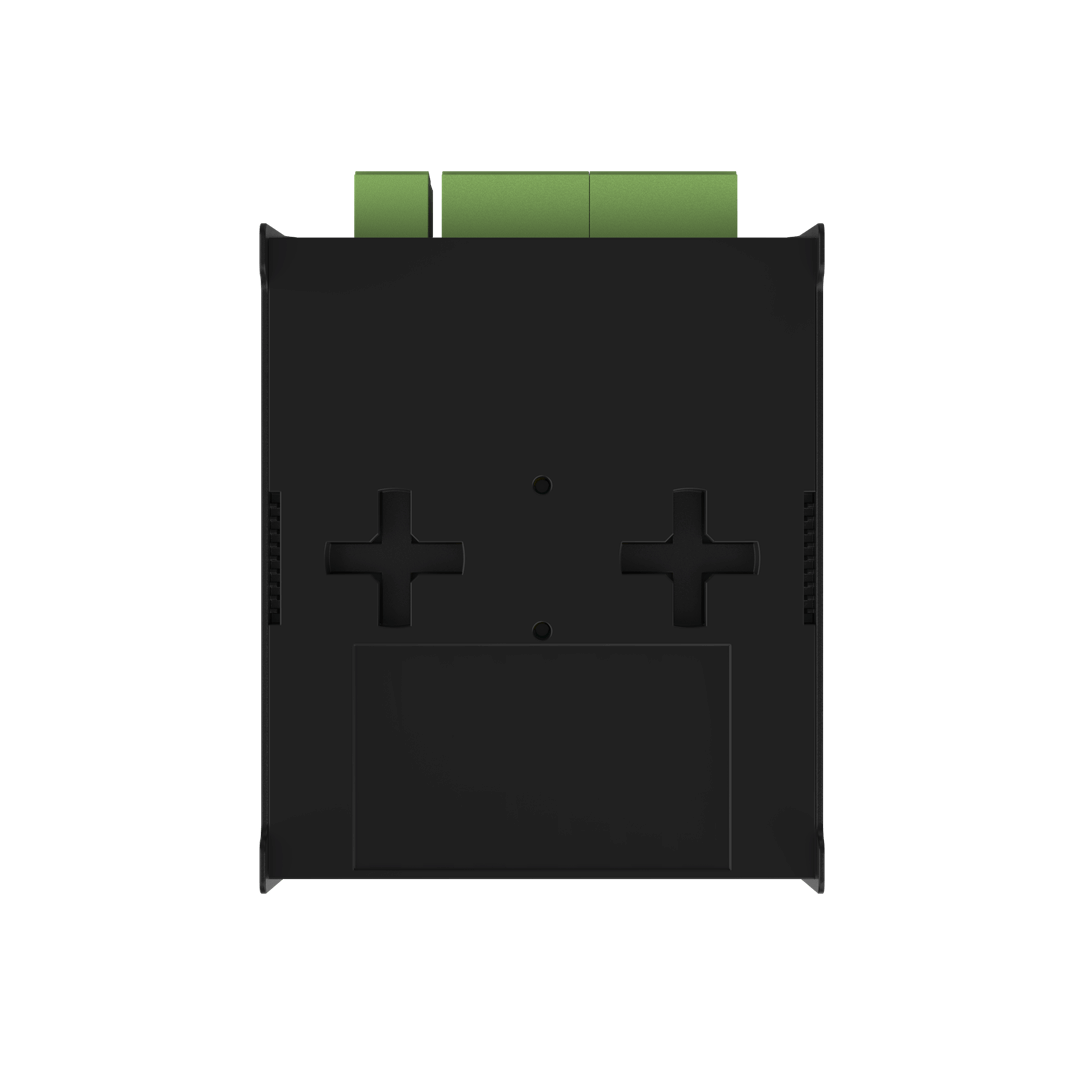

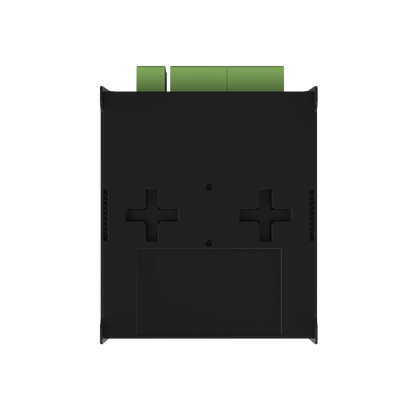

• TS35 DIN-rail mount or surface mount in any orientation

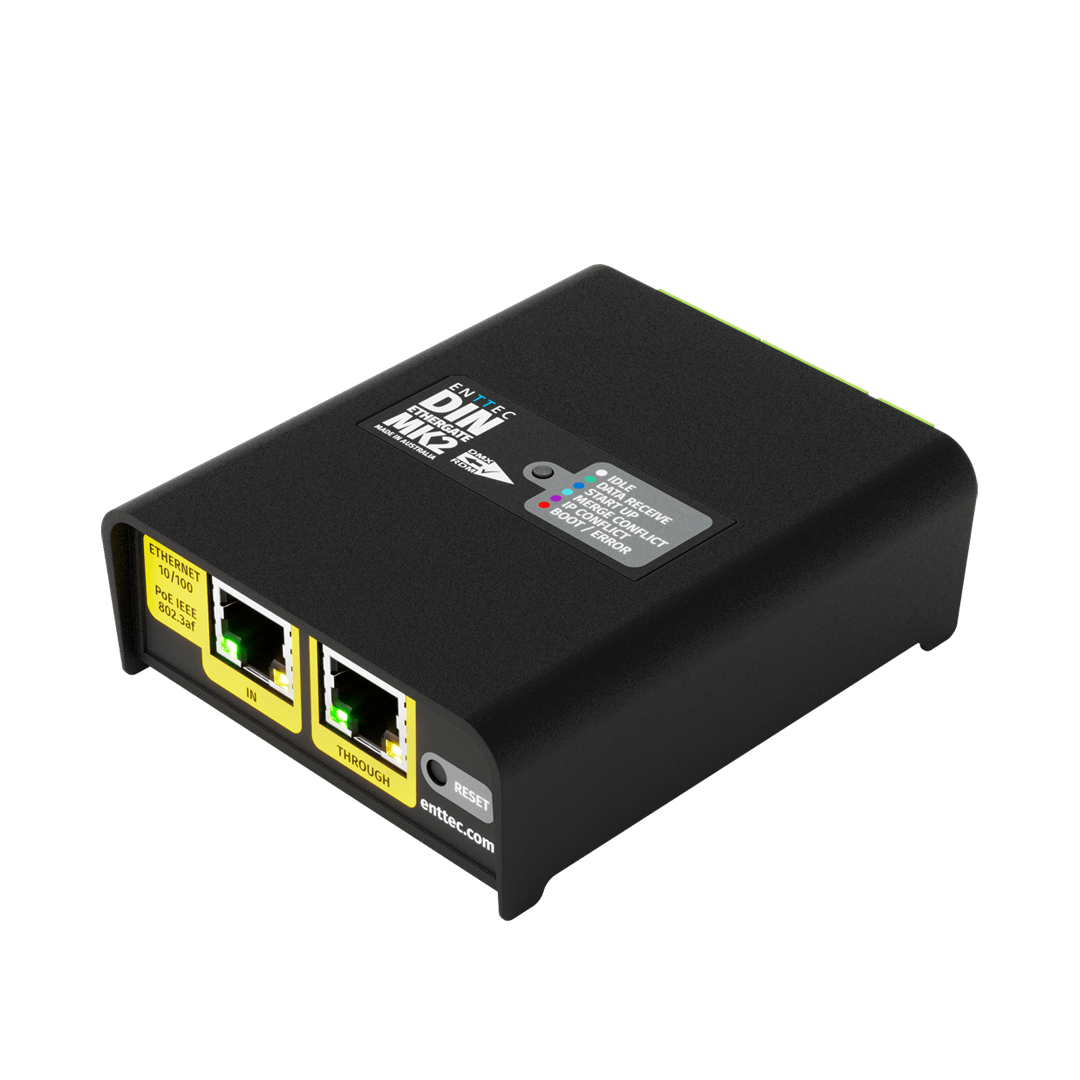

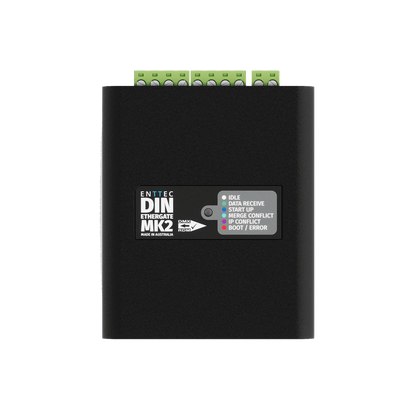

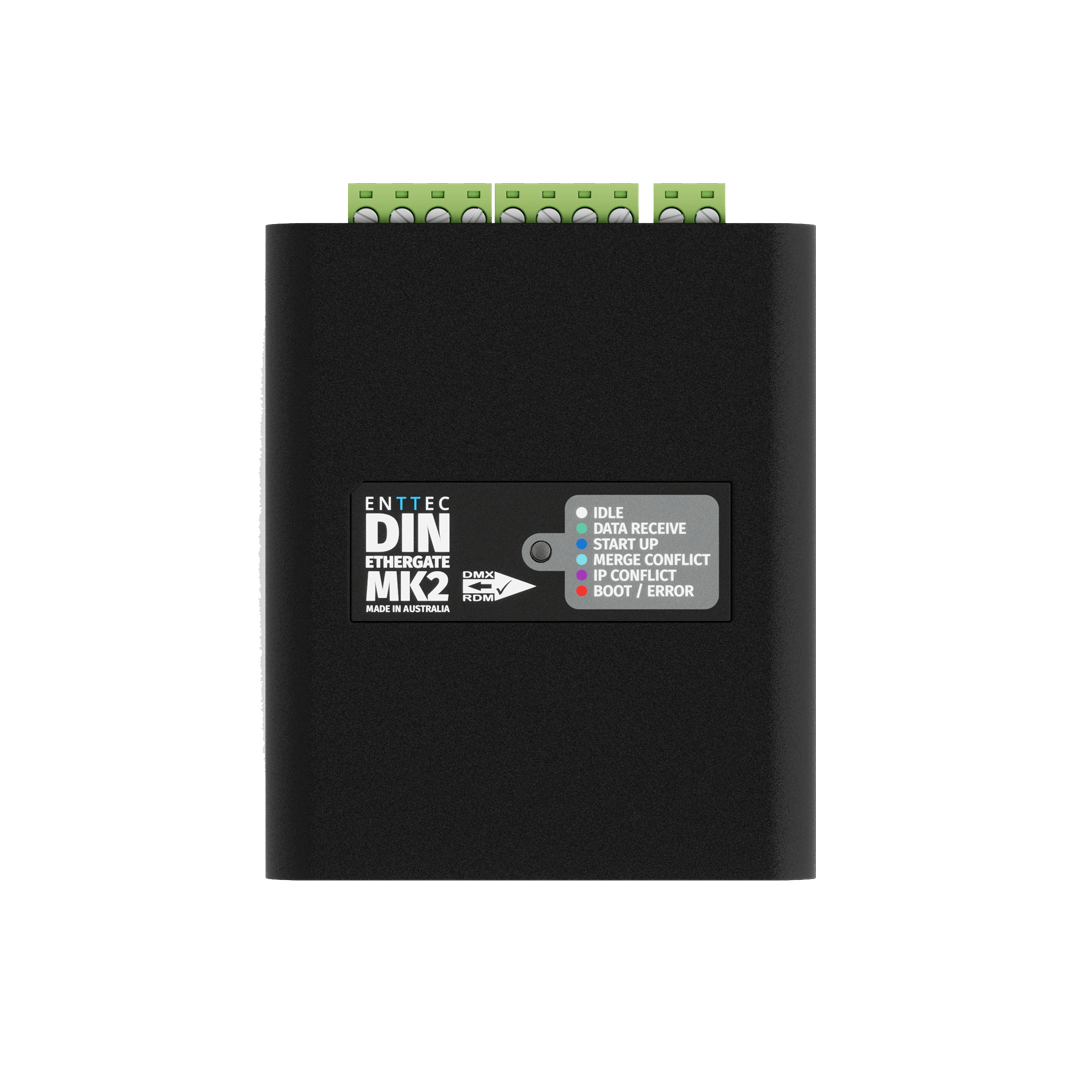

• Forward-facing status LED indicator; network link/activity indicators on RJ45 ports
• Ready to operate within seconds of receiving power
• 3-year manufacturer warranty
• Recommended use: Architectural and commercial lighting installations, entertainment DMX networks, permanent installs requiring Ethernet-to-DMX conversion

Specifications

Control

• Input Protocols: Art-Net (RDM), KiNet, sACN, ESP
• Output Protocols: DMX512-A/RDM (250 Kbps), DMX500K (500 Kbps), DMX750K (750 Kbps), DMX1000K (1000 Kbps)
• Max. Channels (Standard): 1,024 ch (2 universes)
• Max. Channels (Overdrive): 4,096 ch per port (8 universes) at 500K/750K/1000K
• Max. Refresh Rate: 44 FPS (1, 2, 4 universes) / 22 FPS (8 universes)
• Art-Net Merging: 2 sources
• DMX & RDM Timings: Break time 300ms, MAB 15ms
• Network Configuration: DHCP / Static (default 192.168.0.10)
• IGMP Version: IGMPv2
• Firmware Updates: Via web interface

Connections

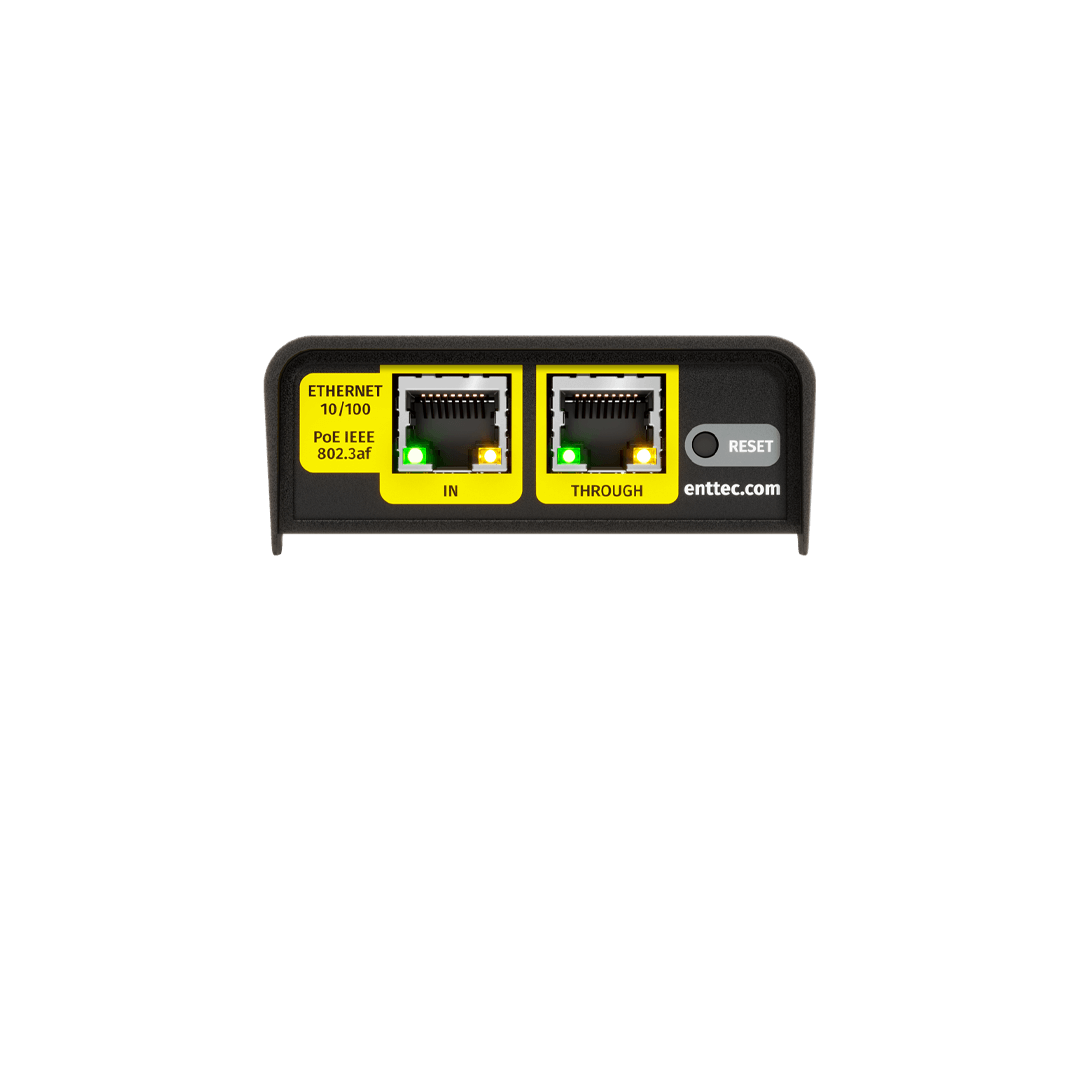

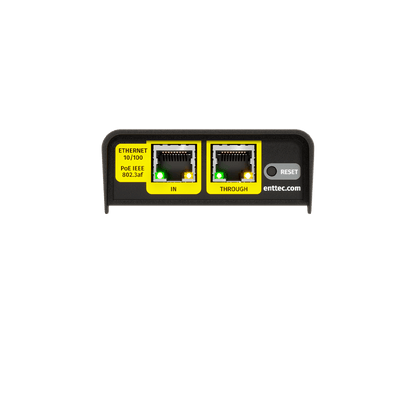

• Ethernet: 2 x RJ45 (10/100Base-T); port 1 supports PoE

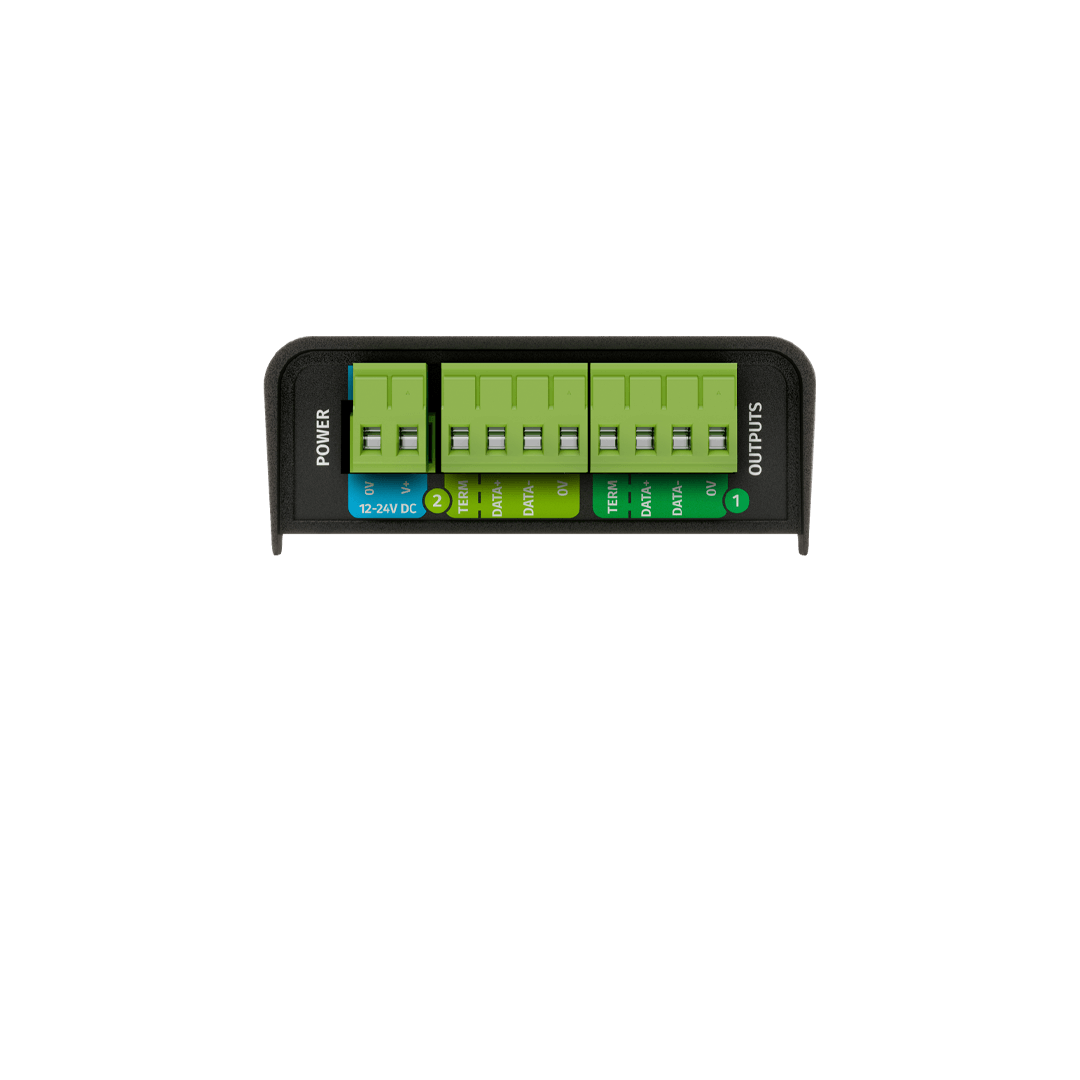

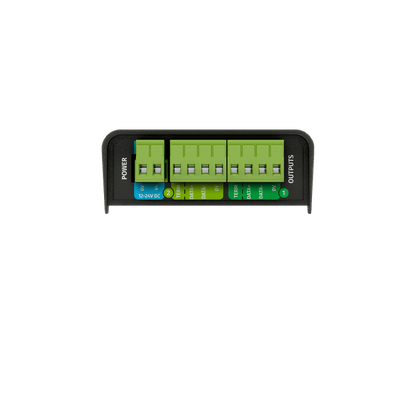

• DMX: 2 x bi-directional, 4-pin Phoenix pluggable terminal
• Power Input: 2-pin Phoenix pluggable terminal

Electrical

• Power over Ethernet: IEEE 802.3af
• DC Input Voltage: 12–24V DC
• Max. Power Draw: 7W
• Max. Heat Dissipation: 7W

Construction / Physical

• Body Material: ABS plastic
• IP Rating: IP20
• Mounting Options: Surface mount, TS35 DIN-rail mount

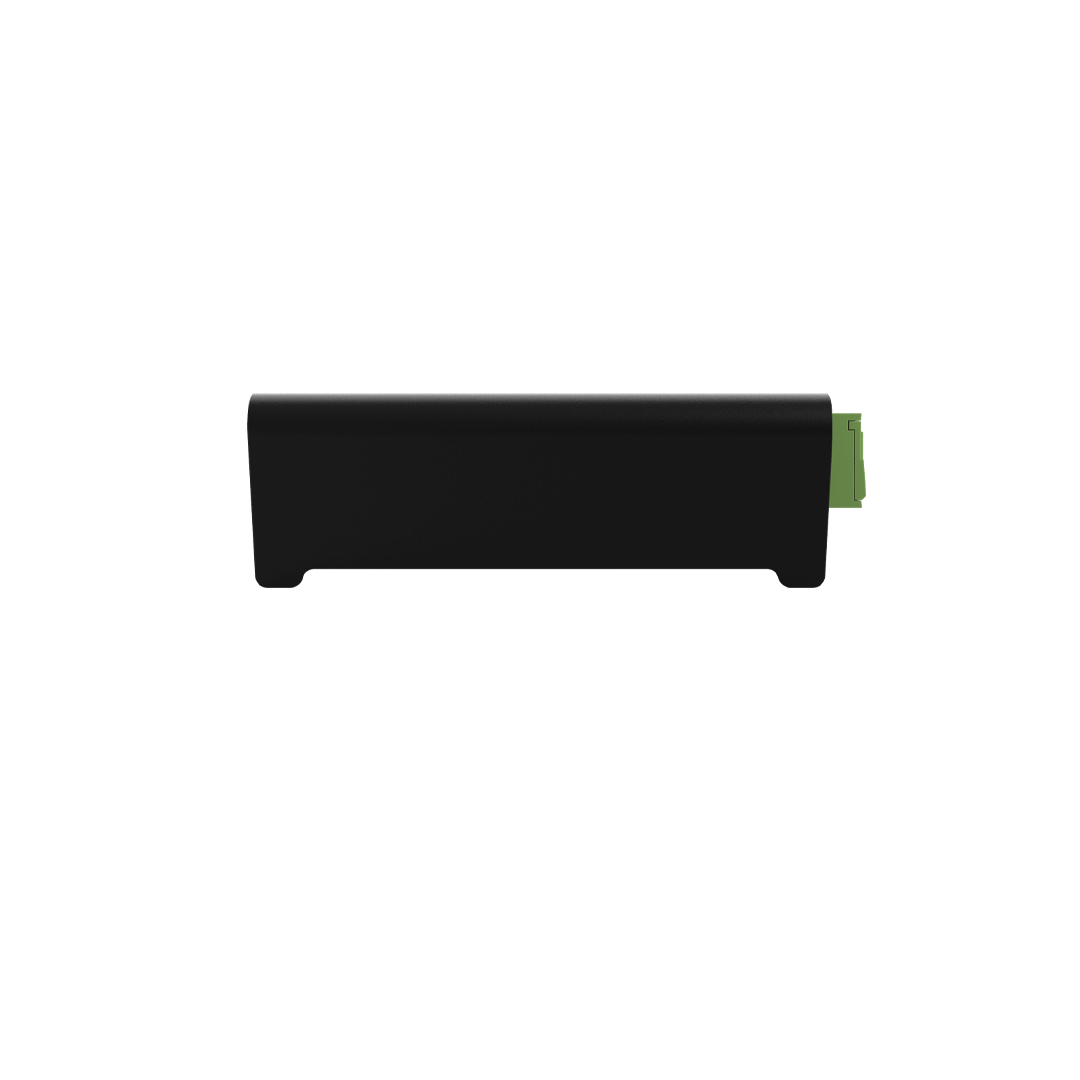

• Unit Dimensions: 100.5 x 72.25 x 34 mm
• Unit Weight: 0.11 kg / 0.24 lbs
• Shipping Dimensions: 140 x 140 x 40 mm
• Shipping Weight: 0.16 kg / 0.35 lbs

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 5–95% (non-condensing)

Certifications

• Warranty: 3-year return to base manufacturer warranty
