Sku: DP667967

DioPlex-6

Regular price $1,799.00
Regular price Sale price $1,799.00
Sold out
Shipping calculated at checkout.
Vendor: DVS LED
Please email us at gear@aboveavl.com or fill out our LED wall calculator for a quote- LED wall panels have minimum purchase quantities, we can quote out any size wall that you need!

LED wall packages are often in stock and can ship fairly quickly, but may not. If you have a specific need-by date, contact us first to ensure we can guarantee that date! We LOVE to help!

Description

Caret Down

This is a permanent install, outdoor LED panel that has a 6.6mm pixel pitch. It is a high output and high contrast and will deliver a high quality image even in the worst weather conditions. It features the advanced common cathode technology that wil provide industry leading efficiency in any weather 24/7. This is your opportunity to get your LED screen now!

From The Manufacturer:

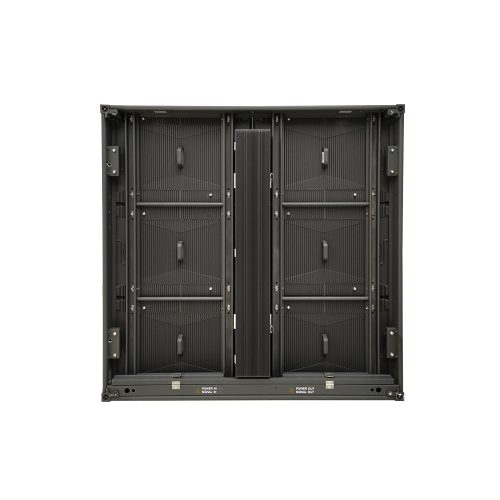

DioPlex-6 is a 6.6mm pixel pitch outdoor-rated LED video cabinet designed for permanent install applications. It features high-output, high-contrast SMD LEDs from 6,000 – 10,000 NITS that deliver stunningly vivid images optimized for visibility in even the most extreme daylight conditions while preserving color quality and maintaining efficiency. DioPlex series features a fan-less, open-frame cabinet design with aluminum heat-sink modules with common-cathode technology that provides industry-leading efficiency even in extreme climate conditions. DioPlex is a robust IP67-rated design that can effortlessly resist adverse weather conditions 24/7. DioPlex offers full front- and rear-serviceability with multiple cabinet sizes and customization options for dynamic scalability.

If you do not have experience with LED walls, professional installation is strongly recommended.

LED Panel Key Features:

  • Efficient Design
  • Front & Rear Serviceability
  • Ultra High Brightness
  • IP67 Rated + Tapered Water Drainage Soffits

In the Box:

  • DioPlex-6
Specifications:
  • Pixel Pitch: 6.67mm
  • LED Type: SMD2727
  • Brightness: 4,500≥NITS
  • Viewing Angle: 140° H | 120° V
  • Refresh Rate: 3,840≥ Hz
  • Grayscale: 14 Bit +/-
Optical:
  • Pixel Density: 144 x 144
  • Brightness: 6,500~ NITS
  • Viewing Angle: 140° H | 120° V
  • Grayscale: 14 bit +/-

Power:

  • Voltage: 120-240v
  • Max Power: 560w / panel
  • Average Power: 200w / panel

Control:

  • Control System: NovaStar
  • Receiving Card: NovaStar A5S Plus
  • Supported Inputs: HDMI, DVI, VGA, SDI, WiFi
  • Frame Rate: 60hz

Tech Specs

Physical:

Length: 960 mm

Width: 960 mm

Height: 101 mm

Weight: 46 lb

Electrical

Voltage Range: 120-240v

Maximum Wattage: 450w / panelw

Power Cable Connector - Fixture Side: Power Connection: PowerCON TRUE1 IN/THRU (Enclosed)

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 5 Years
