Sku: DP800967

DioPlex-8

Regular price
$1,399.00
Regular price
Sale price
$1,399.00
Shipping calculated at checkout.
Vendor: DVS LED

LED wall packages are often in stock and can ship fairly quickly, but may not. If you have a specific need-by date, contact us first to ensure we can guarantee that date! We LOVE to help!

Description

Caret Down

This is a permanent install, outdoor LED panel that has a 8.0mm pixel pitch. It is a high output and high contrast and will deliver a high quality image even in the worst weather conditions. It features the advanced common cathode technology that wil provide industry leading efficiency in any weather 24/7. This is your opportunity to get your LED screen now!

From The Manufacturer:

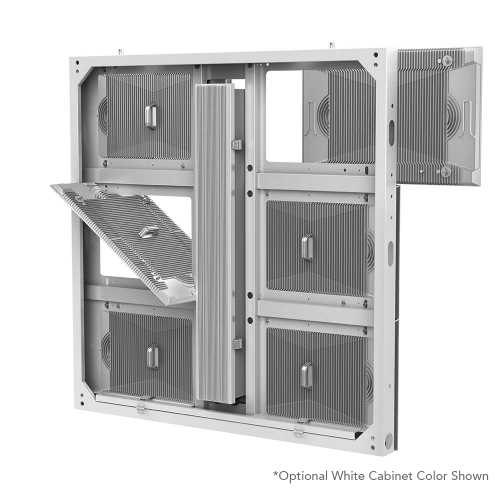

DioPlex-8 is a 8mm pixel pitch outdoor-rated LED video cabinet designed for permanent install applications. It features high-output, high-contrast SMD LEDs from 6,000 – 10,000 NITS that deliver stunningly vivid images optimized for visibility in even the most extreme daylight conditions while preserving color quality and maintaining efficiency. DioPlex series features a fan-less, open-frame cabinet design with aluminum heat-sink modules with common-cathode technology that provides industry-leading efficiency even in extreme climate conditions. DioPlex is a robust IP67-rated design that can effortlessly resist adverse weather conditions 24/7. DioPlex offers full front- and rear-serviceability with multiple cabinet sizes and customization options for dynamic scalability.

If you do not have experience with LED walls, professional installation is strongly recommended.

LED Panel Key Features:

  • Efficient Design
  • Front & Rear Serviceability
  • Ultra High Brightness
  • IP67 Rated + Tapered Water Drainage Soffits

In the Box:

  • DioPlex-8
Specifications:
  • Pixel Pitch: 8.0mm
  • LED Type: SMD3535
  • Brightness: 6,500~ NITS
  • Viewing Angle: 140° H | 120° V
  • Refresh Rate: 3,840≥ Hz
  • Grayscale: 14 Bit +/-
Optical:
  • Pixel Density: 120 x 120
  • Brightness: 6,500~ NITS
  • Viewing Angle: 140° H | 120° V
  • Grayscale: 14 bit +/-

Power:

  • Voltage: 120-240v
  • Max Power: 560w / panel
  • Average Power: 200w / panel

Control:

  • Control System: NovaStar
  • Receiving Card: NovaStar A5S Plus
  • Supported Inputs: HDMI, DVI, VGA, SDI, WiFi
  • Frame Rate: 60hz

Tech Specs

Physical:

Length: 960 mm

Width: 960 mm

Height: 101 mm

Weight: 46 lb

Electrical

Voltage Range: 120-240v

Maximum Wattage: 450w / panelw

Power Cable Connector - Fixture Side: Power Connection: PowerCON TRUE1 IN/THRU (Enclosed)

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 5 Years
