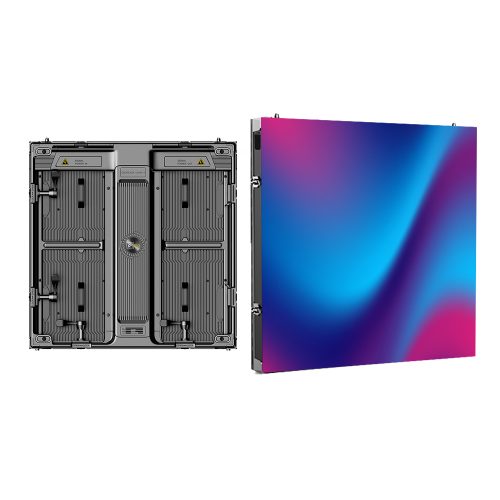

DioPlex UHD-1

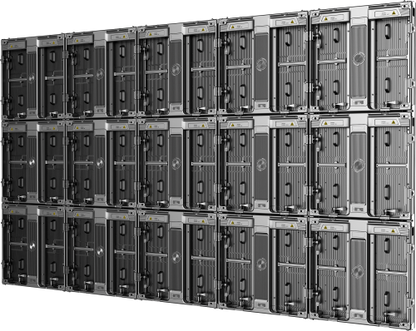

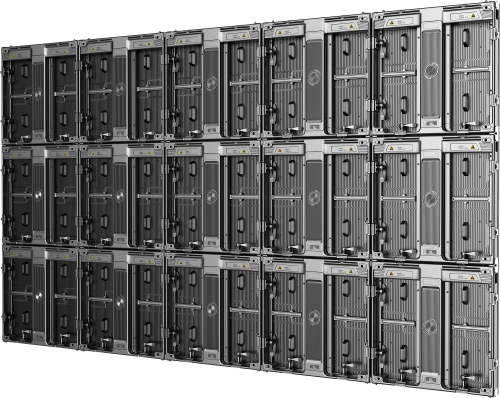

The DioPlex UHD-1 is a high resolution permanent install  outdoor LED video wall panel. The high pixel density is a great option for close viewing distances.

From The Manufacturer:

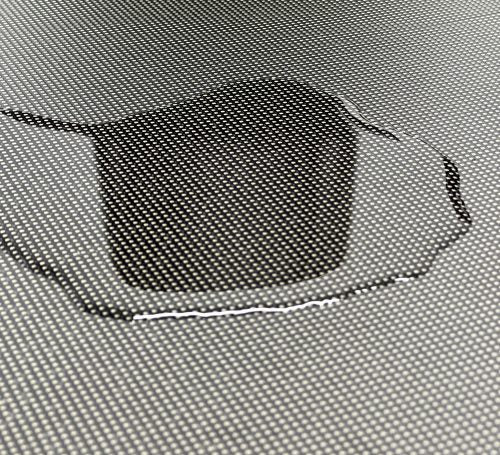

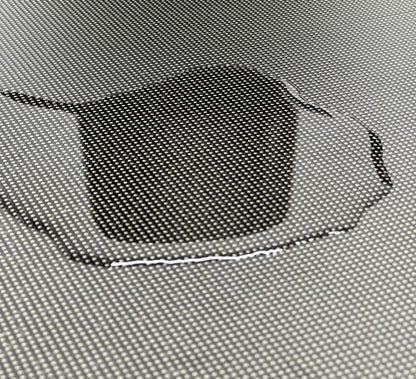

DioPlex UHD-1 is a high-resolution, 1.9mm pixel pitch outdoor LED video wall panel designed to provide exceptional clarity permanent install applications with uncompromised durability. Its ultra-high pixel density provides a fully scalable solution for close viewing distances and increased image detail in a robust IP66 rated enclosure that ensures long-lasting operation in a variety of weather conditions.

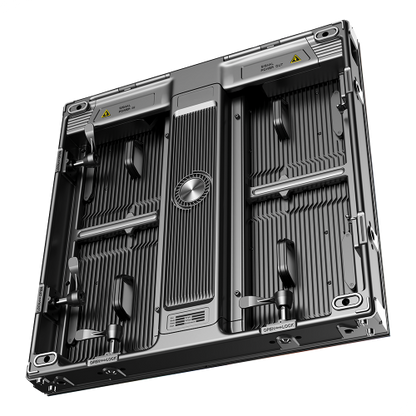

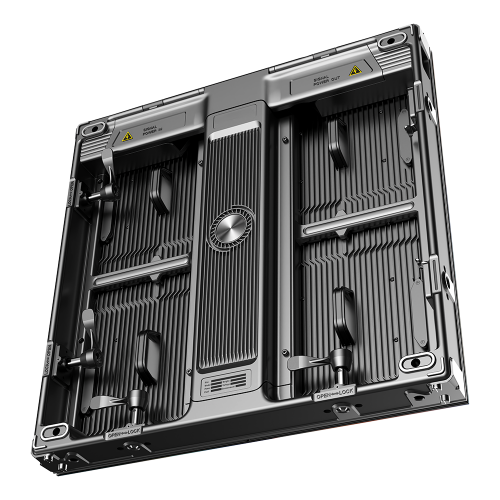

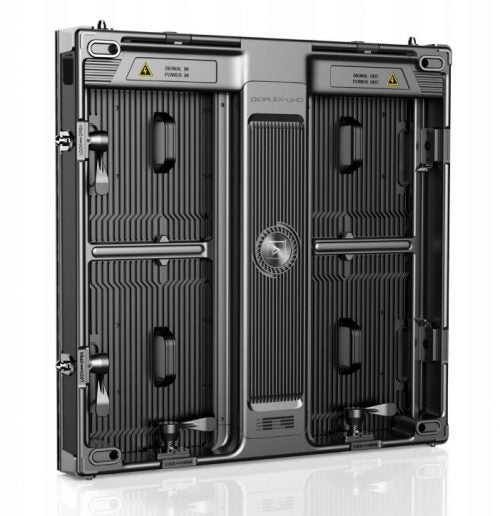

DioPlex UHD-1 features impact resistant GOB coating technology over its high-output, high-contrast SMD LEDs resulting in stunningly vivid images optimized for daylight visibility that deliver a low-maintenance long-term solution. DioPlex UHD series is front- and rear-serviceable with a lightweight design featuring patented aluminum convective heat-sink modules for efficient, fanless operation.

Features:

• Impact Resistant High-Output GOB LED Technology

• Convective Heat-Sink Aluminum LED Modules

• Front & Rear Serviceability

• IP67 Rated + 5VB Rating

• Enclosed IP-Rated Power/Data Connections

• Detachable PSU Housing w/ Direct Module Connections

Specifications:

• Application Type

• Permanent Install

• Mounting/Rigging

• Wall Mount | Other

• Pixel Pitch

• 1.9mm

• Dimensions

• 19.6 x 19.6 x 2.6"

• Weight

• 19 lbs

• LED Type

• SMD1212 GOB

• Refresh Rate

• 3,840≥ Hz

• Brightness

• 3,500≥ NITS

• Environment

• Temporary Outdoor
