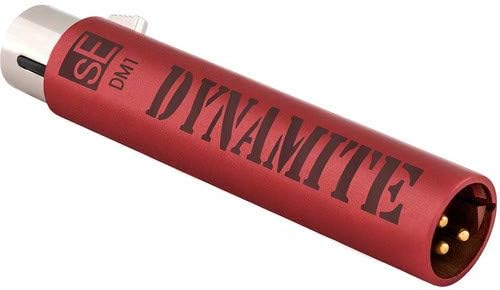

DM1 Dynamite

The SE Electronics DM1 Dynamite is an ultra-slim active inline preamp for providing clean, transparent gain to dynamic and passive ribbon microphones.

From the Manufacturer

An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones. The DM1 Dynamite features a sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration. With vastly lower output impedance and nearly half the noise of anything else on the market, the DM1 raises any mic level with clarity. It provides a consistent +28dB regardless of the connected load, enabling mics with a lower output to deliver improved level to a preamp—all without adding noise or coloration, bringing new life to your favorite passive microphones. Perfect for podcasting, recording, or live sound.

Features

• Now also available in a matte-black finish
• Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
• Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
• Always a consistent +28dB regardless of the connected load to enable mics with a lower output
• Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
• All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
• Gold plated XLR connector for loss-free reliable signal connection
• Perfect for podcasting, recording, or live sound

Specifications

Power

• Electrical Impedance: 135 Ohms
• Recommended Load Impedance: >1K Ohms
• Connectivity: 3-pin male/female XLR connector
• Powering: 48V Phantom Power (P48 according to IEC 61938)

Sound

• Frequency Range: 10 Hz - 120 kHz (-0.3 dB)
• Gain: 28 dB
• Current Consumption: 3.0 mA
• Max Output Level (0.5% THD): 8.3 dBV (2.6 V)
• Output Noise Level: 9 µV (a-weighted)
• Input Impedance: 10k Ohms

Dimensions

• Preamp Diameter: 19 mm (0.75 in.)
• Preamp Length: 96 mm (3.78 in.)
• Preamp Weight: 96 mm (3.78 in.)

What's in the Box

• DM1 Dynamite
• sE Logo Sticker
• User manual with warranty card
