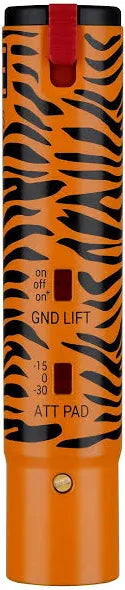

DM3

The SE Electronics DM3 is an active inline DI box with ultra-high impedance input for capturing pristine signal from guitars, basses, and other high-impedance instruments.

From the Manufacturer

The DM3 is an active, inline DI with Ultra-HiZ input and an impressively compact design - in many ways, the DM3 will prove to be your key to great sound! Featuring a stunningly high 10 megaohms of input impedance, the DM3's ultra-HiZ input gets the best out of your instrument with massive headroom for even the hottest instruments. The slim, all-metal discrete housing with gold XLR connectors features a new standard ground lift switch, lockable ¼" input jack to prevent accidental disconnects, and a dedicated Class-A output buffer amplifier.

Features

• Now also available in a matte-black finish
• Stunningly high 10 megaohms of input impedance
• Ultra-HiZ input for getting the best out of your instrument
• Massive headroom for even the hottest instruments
• A new standard to the ground lift switch
• Lockable ¼" input jack to prevent accidental disconnects
• Dedicated Class-A output buffer amplifier and premium finish
• Slim, all-metal discrete housing and gold XLR connectors
• Recommended use: Electric guitar, bass guitar, piezo pickups, keyboard, synthesizers, drum machines, laptops

Specifications

Power

• Electrical Impedance: 86 Ohms
• Recommended Load Impedance: >1K Ohms
• Connectivity: Input: 6.3 mm (1/4 in.) TRS jack | Output: 3-pin male XLR connector
• Powering: 48V Phantom Power (P48 according to IEC 61938)

Sound

• Frequency Range: 10 Hz - 120 kHz (-0.3 dB)
• Current Consumption: 3.8 mA
• Max Input Level (0.5% THD): 19 / 34 / 49 dBV (9.0 / 51 / 285 V)
• Output Noise Level: 1 μV

Dimensions

• Diameter: 20 mm (0.79 in.)
• Length: 95.5 mm (3.76 in.)
• Weight: 70 g (2.47 oz.)

What's in the Box

• DM3
• Screwdriver
• sE 1/4" plug keychain
• sE Logo Sticker
• User manual with warranty card
