DM3-D

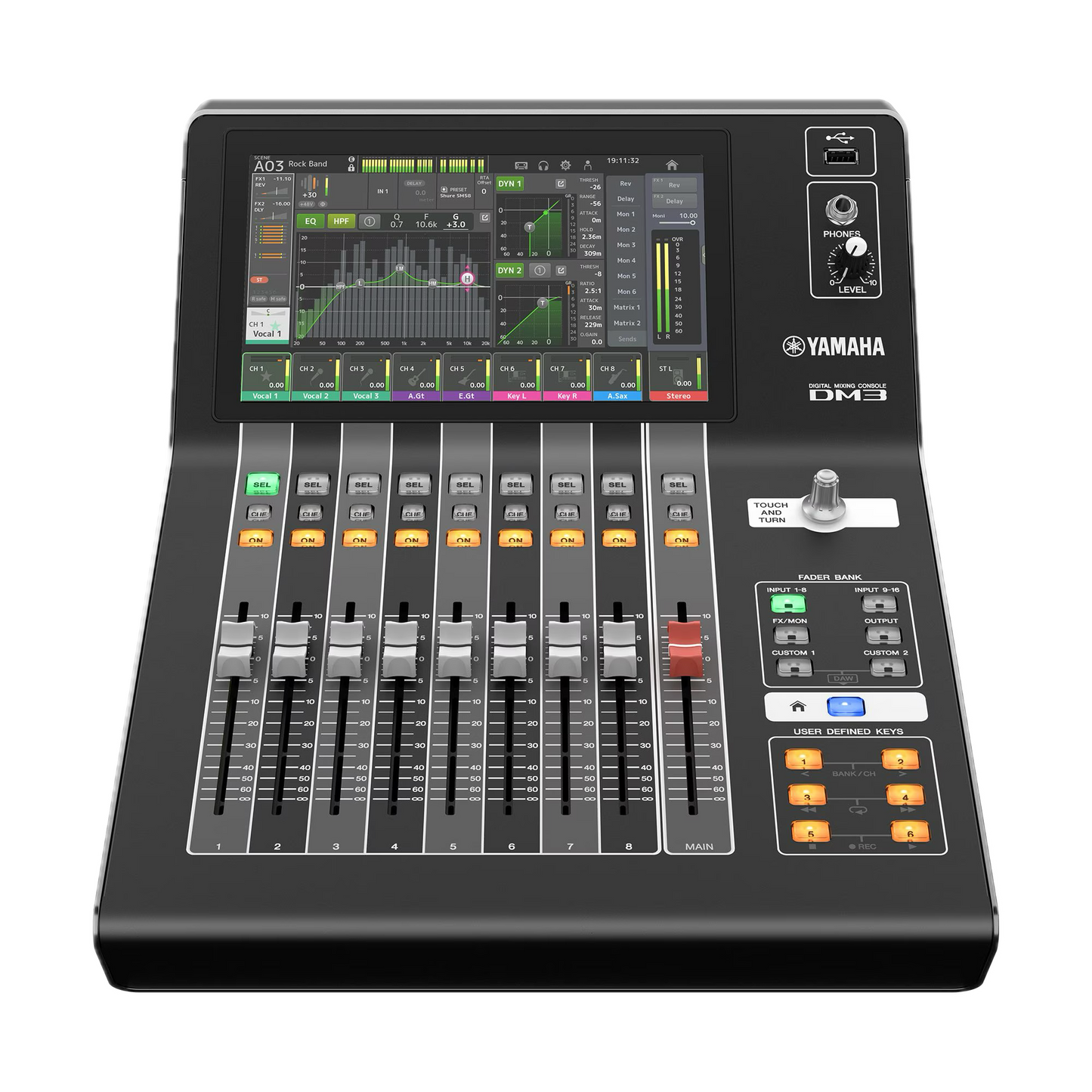

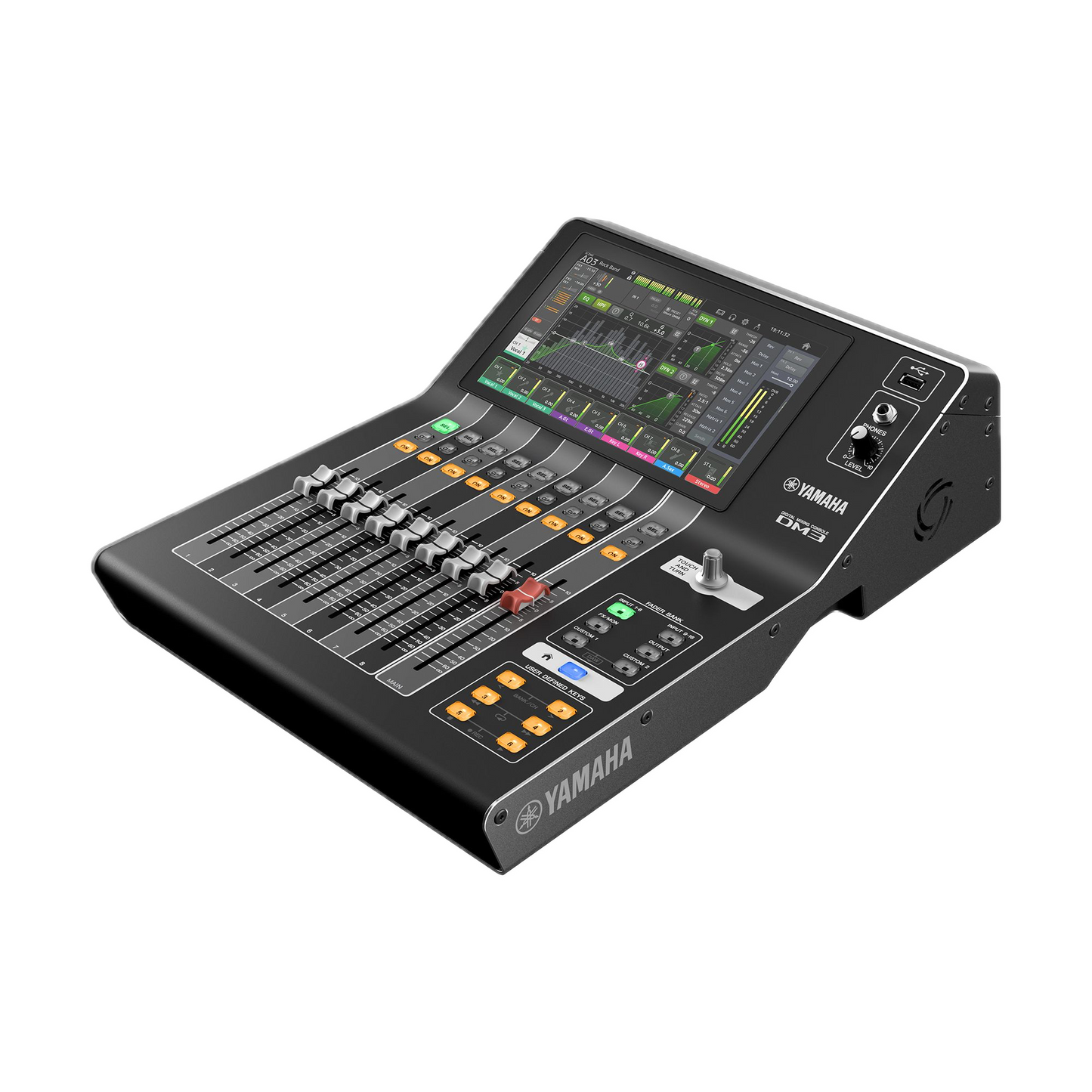

The DM-D is a compact  Audio mixing console that has Dante compatibility. It is a great choice for those looking for a small mixer with all the features of larger digital consoles.

From the Manufacturer

In 1987 Yamaha released the first ever digital mixer, the DMP7, ushering in a new era of consoles that boasted greater functionality in a more compact design than their analog counterparts. Decades later the DM3 Series is setting a new standard for compact console performance, featuring versatile capabilities and extreme portability that make it an invaluable tool for a wide range of applications and environments.

The DM3 Series comprises two models, the DM3 Standard and the DM3—the first compact console to be fully compatible with Dante technology, allowing for faster and easier setup with multiple devices. Both consoles feature a multi-language user interface that can be configured to make operation simple and trouble-free for users with different backgrounds and varying skill levels.

Equally at home in a live performance venue or your home studio, it’s easy to imagine taking a DM3 Series console to a gig, recording and streaming the audio, and then taking it home for editing as part of your DAW setup. Alternatively, you could use it as a main mixer for a small performance one day, and as a sub-mixer for live streaming the next—the possibilities are endless.

Features

• 8 + 1 fader configuration

• 9-inch multi-touch screen

• Input mixing channels: 16 mono + 1 stereo + 2 FX return

• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)

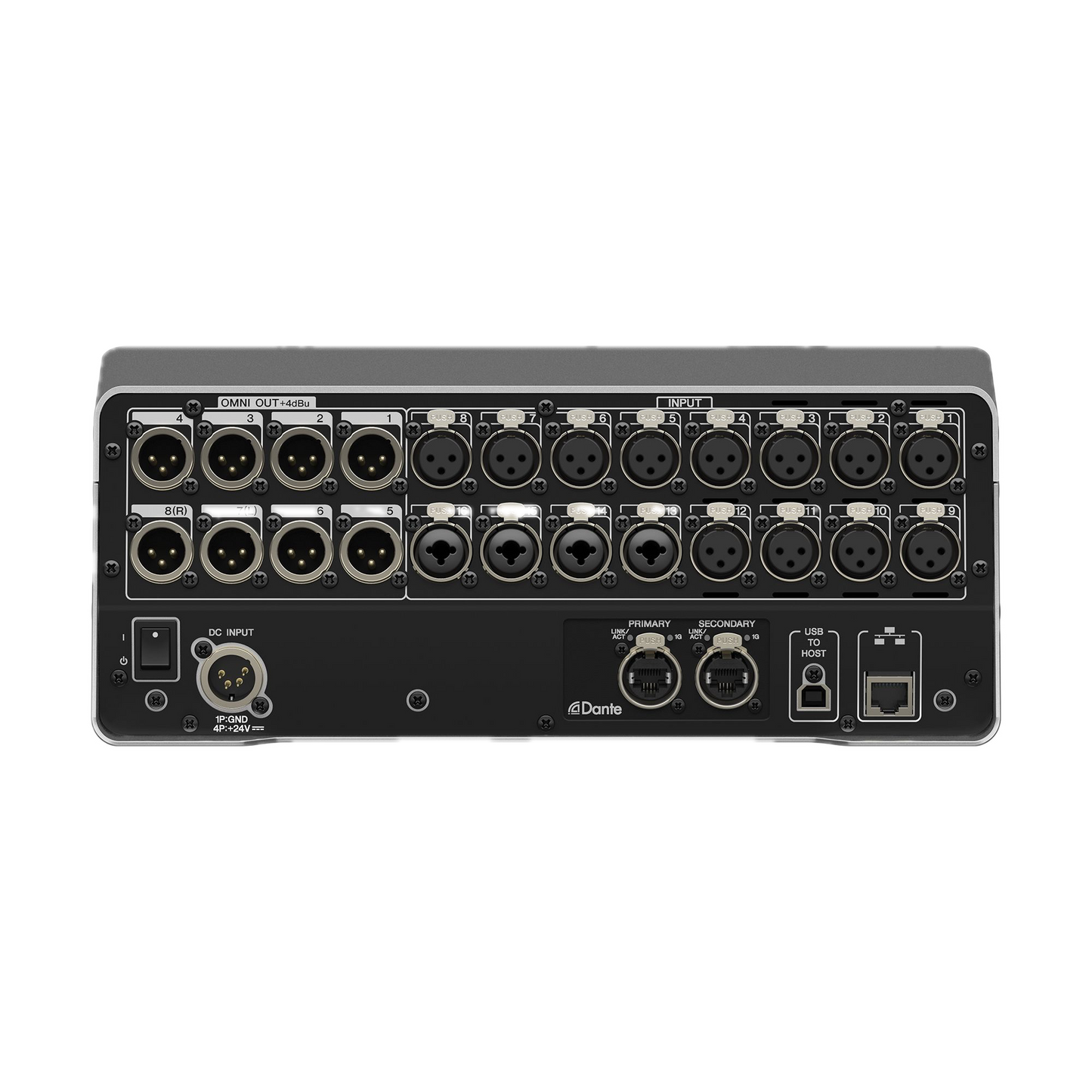

• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs

• Dante: 16 inputs, and 16 outputs

• USB: 18 inputs, and 18 outputs

• 18 Effects, and GEQ on Mix 1-6 and Stereo channels

• Sampling rate: 48kHz/96kHz

• Dimensions (W x H x D): 320 mm × 140 mm × 455 mm

• Net weight: 14.3lbs
