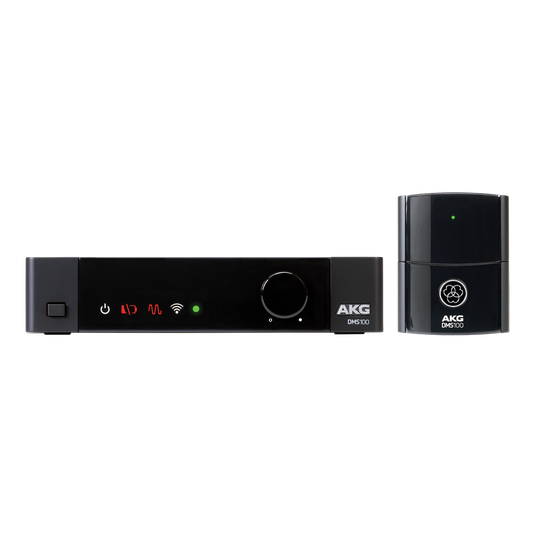

DMS100 Instrument Set

The AKG DMS100 digital wireless instrument system is perfect for live sound instrumental performance, public speaking or business presentations.

From the Manufacturer:

AKG DMS100 professional digital wireless systems for performers and presenters combine signature AKG sound quality and four channels of rock-solid, license-free 2.4GHz operation with advanced security features, extended battery life and the ultimate ease-of-use. The DMS100 is available in two options: with a high-quality, AKG handheld microphone or with a bodypack. The bodypack is instrument ready and can also be combined with a wide range of AKG headsets or clip-on mics (available separately) for singers or presenters. Leveraging more than 70 years of AKG microphone engineering and offering 24-bit/48 kHz uncompressed audio coding, the DMS100 provides crisp, studio-quality sound with none of the interference found in analog wireless systems. Combined with ultra-low latency, these features make the DMS100 a joy for singers and instrumentalists. And with the signal security provided by AES 256-bit encryption, presenters can feel at ease in confidential settings. Unrivaled fidelity, security and performance make the AKG DMS100 the ideal digital wireless solution for performing musicians, corporate and government presenters, houses of worship, fitness instructors, educators and anyone who seeks both studio-quality sound and freedom of movement onstage.

Features:

Rock-Solid 2.4GHz Operation

The wireless universe is constantly posing challenges for operating analog wireless microphone systems within increasingly narrow frequency allocations. AKG DMS100 digital wireless systems operate in the 2.4GHz band, a global, license-free space.

Plug and Play

DMS100 systems were designed from the ground up for intuitive operation. Channel pairing is push-button painless, with color-coding to make for easy identification. Adaptive channel selection takes the guesswork out of locating available wireless channels. And up to four DMS100 systems can be synced and used simultaneously together.

A Focus on Fidelity

Enjoy pristine, studio-quality sound: the bodypack offers 24-bit, 48kHz resolution and a linear frequency response. The bodypack is instrument ready or can be used with optional AKG headsets or clip-on mics. Plus, digital transmission means you’ll encounter none of the interference found in traditional analog wireless systems.

Secure Communications

Sharing sensitive information? Trust the DMS100 built-in advanced AES 256-bit encryption to protect your signal and keep your wireless audio communications private. Perfect for small-to-medium corporate and small business users in need of private, secure wireless communications.

Specifications:

• Carrier frequency: Digital 2.4 GHz
• Encryption: 256-bit AES
• Simultaneous operation: Yes, up to 4 coexisting systems
• Working Range: 30m (100’)
• Latency: 1.7ms
• Frequency/Channel Selection: Adaptive Channel Selection
• Diversity Wireless: Antenna, Time, Frequency
• Frequency Response: 20 Hz–20 KHz ±1 dB
• Dynamic Range: 120 dB(A) @ 1 KHz
• Signal-to-noise: >120 dB(A)
• Rack Mountable: Yes, with optional rackmount kit
• Battery: 2xAA Alkaline
• Battery Life: Up to 12 Hours
• Dimensions
  • Receiver Dimensions: 7.9 x 6.5 x 1.7 in. (200 x 165 x 44 mm)
  • Receiver Weight: 0.78 lbs. (0.358 kg)
  • Transmitter Dimensions: 2.5 x 1.1 x 3.2 in. (64 x 29 x 82 mm)
  • Transmitter Weight (w/batteries): 0.24 lbs. (0.112 kg)

What’s in the box?

• 1 x PT100 Beltpack Transmitter
• 1 x SR100 Stationary Receiver
• 1 x Universal AC Power Adapter
• 1 x Instrument Cable
• 2 x AA Batteries
