DMS800 D7 Vocal Set BD1

The AKG DMS800 Vocal Set D7 is a reference digital wireless system available for Band1.

From the Manufacturer:

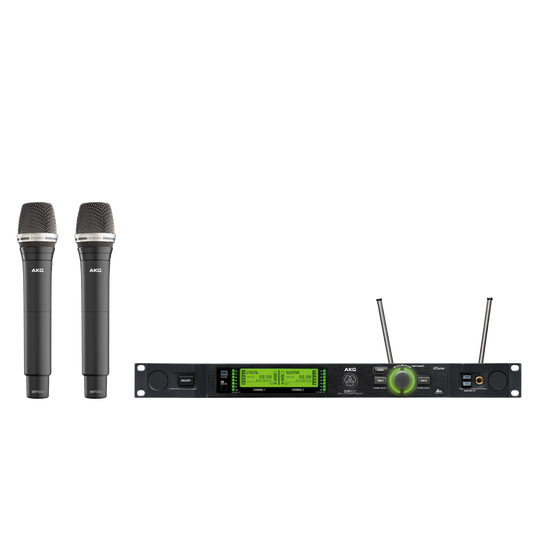

The set includes the DSR800 reference two-channel digital wireless receiver, a pair of DHT800 wireless handheld transmitters, and two D7 WL1 microphone heads. The DSR800 receiver provides an ultra-wide bandwidth of up to 112MHz for reliable and versatile operation, while the DHT800 transmitters deliver durability, easy handling and dependability. The set’s two D7 WL1 dynamic microphone heads are ideal for lead vocals because of their ability to create the subtle and open sound of a condenser capsule while also delivering the powerful resonance of a dynamic microphone. Rounding out the set is a pair of stand adapters for the DHT800 transmitters. The DMS800 Vocal Set D7 is only available in the US.

Features:

Now with digital audio outputs DANTE and AES EBU

Interchangeable microphone heads

HiQnet network remote control and monitoring

Digital wireless audio transmission

150 MHz ultrawide frequency range

512-bit encryption

Specifications:

• Frequency bands
  • 1: 548.1 - 605.9 & 614.1 - 697.9 MHz; 1 AU: 548.1 - 605.9 & 614.1 - 693.9 MHz; 1 NZ: 548.1 - 605.9 & 622.1 - 697.9 MHz; 1 UK: 548.1 - 697.9 MHz;
  • 2: 710.1 - 785.9 & 823.1 - 831.9 MHz; 2 DE: 710.1 - 789.9 & 823.1 - 831.9 MHz
• Switching bandwidth: max. 150 MHz (depending on frequency band)
• Diversity system: digital diversity
• Radio output power: 10 to 50 mW (depending on frequency band)
• Audio bandwidth: 25 – 20 000 Hz (+/- 3dB)
• Frequency selection: selectable frequency in 25 kHz steps
• Switchable RF power: yes
• Modulation: digital FSK
• Radio range (Line of sight): 100 m (depending on antenna system)
• Encryption: 512 bit
• DSR800
  • Rack size: full 19”
  • Dimensions: 480 x 45 x 230 mm / 18.9 x 1.77 x 9.06 in
• DHT800
  • Dimensions: 170 mm, 37 mm ø / 6.69 in, 1.46 in ø (w/o mic head); 240 mm, 55 mm ø / 9.45 in, 2.17 in ø (w. mic head)
• DPT800
  • Dimensions: 82 x 65 x 28 mm / 3.23 x 2.56 x 1.10 in (w/o antenna); 184 x 65 x 28 mm / 7.24 x 2.56 x 1.10 in (w. antenna)
• What’s in the box?
  • 1 x DSR800 Receiver
  • 2 x DHT800 Handheld Transmitters
  • 2 x D7 WL1 Microphone Heads
  • 4 x AA Size Batteries
  • 2 x SA63 Stand Adapters
