Description
Description
A simple, rugged, flexible, 5 and 3-Pin DMX splitter for non-RDM setups.
From the Manufacturer:

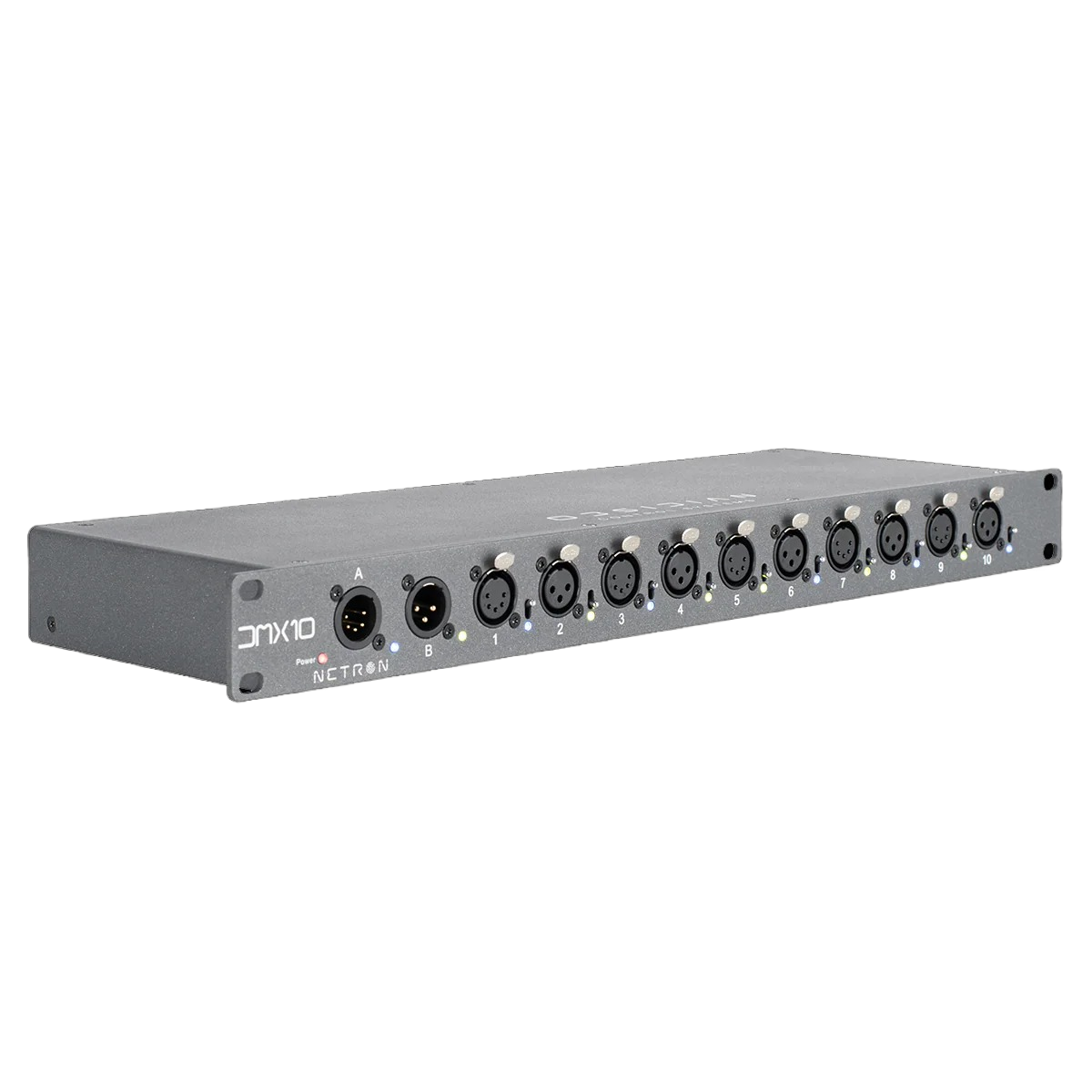

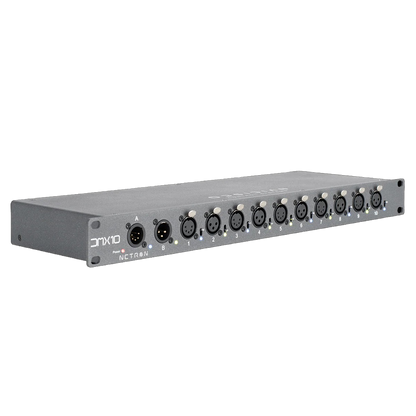

The DMX10-53 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5 and 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin, 5/3pin combo XLR configurations.
In the Box:
- (1) Netron DMX 10-53
- (1) 1.5m Locking power cable to Edison
Features:
- 5pin (A) and 3pin (B) XLR DMX Input
- 10 isolated 5 and 3pin XLR DMX Outputs
- A/B routing per output port
- LED feedback for In/Out/A/B/Power
- Industrial strength powder-coated finish
- Lightweight and rugged rackmount housing
Tech Specs
Control
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: Yes
Physical:
Length: 19 in
Width: 6.1 in
Height: 1.7 in
Weight: 3.31 lb
Electrical
Voltage Range: 100-240 V nominal, 50/60 Hz
Power Cable Connector - Fixture Side: True1
Main Power Connector on Included Cable: Edison
