Sku: DMX4

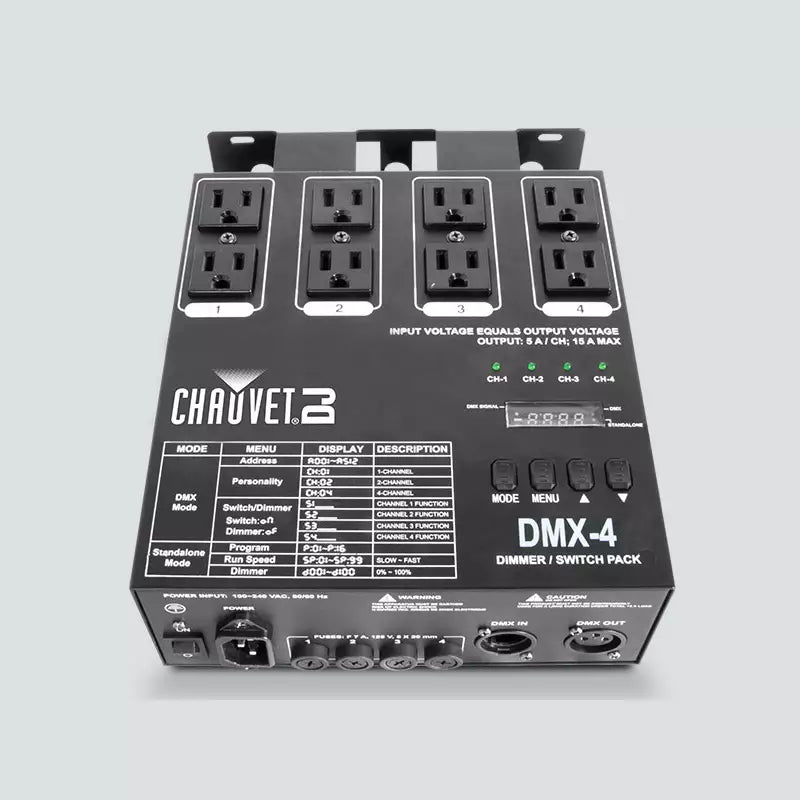

DMX-4 Dimmer Pack

Regular price
$169.99
Regular price
Sale price
$169.99
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

It’s a 4-channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering.

Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay. Sixteen user-selectable chase patterns make programming a breeze.


In the Box:

  • (1) DMX-4
  • (1) IEC Power Cable

 Features:

  • 4-channel dimmer/switch pack with up to 5 amps per channel (15A max)
  • Auto on/off when DMX is detected or removed
  • Provides DMX control for on/off or dimming to non-DMX fixtures
  • Built in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures
  • Custom looks at your fingertips with 16 built-in, configurable chases
  • Easy control using standalone mode or DMX control
  • Increase flexibility by setting each channel as a dimmer or switch
  • Control up to eight units simultaneously with four duplex outlets
  • Monitor the status of each channel with separate LED indicators
  • Generate a synchronized show using easily accessible automated programs, built-in automated programs
  • Great control without DMX using automated programs with adjustable speeds and dimmer levels

Tech Specs

Control

DMX Channel Modes: 1 / 2 / 4

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: No

Physical:

Length: 8.3 in

Width: 7.7 in

Height: 2.8 in

Weight: 5 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 1800w

Power Cable Connector - Fixture Side: IEC

Main Power Connector on Included Cable: Edison
