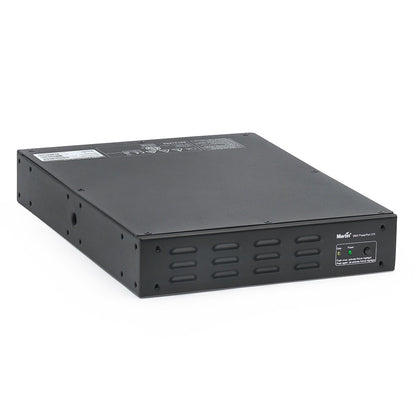

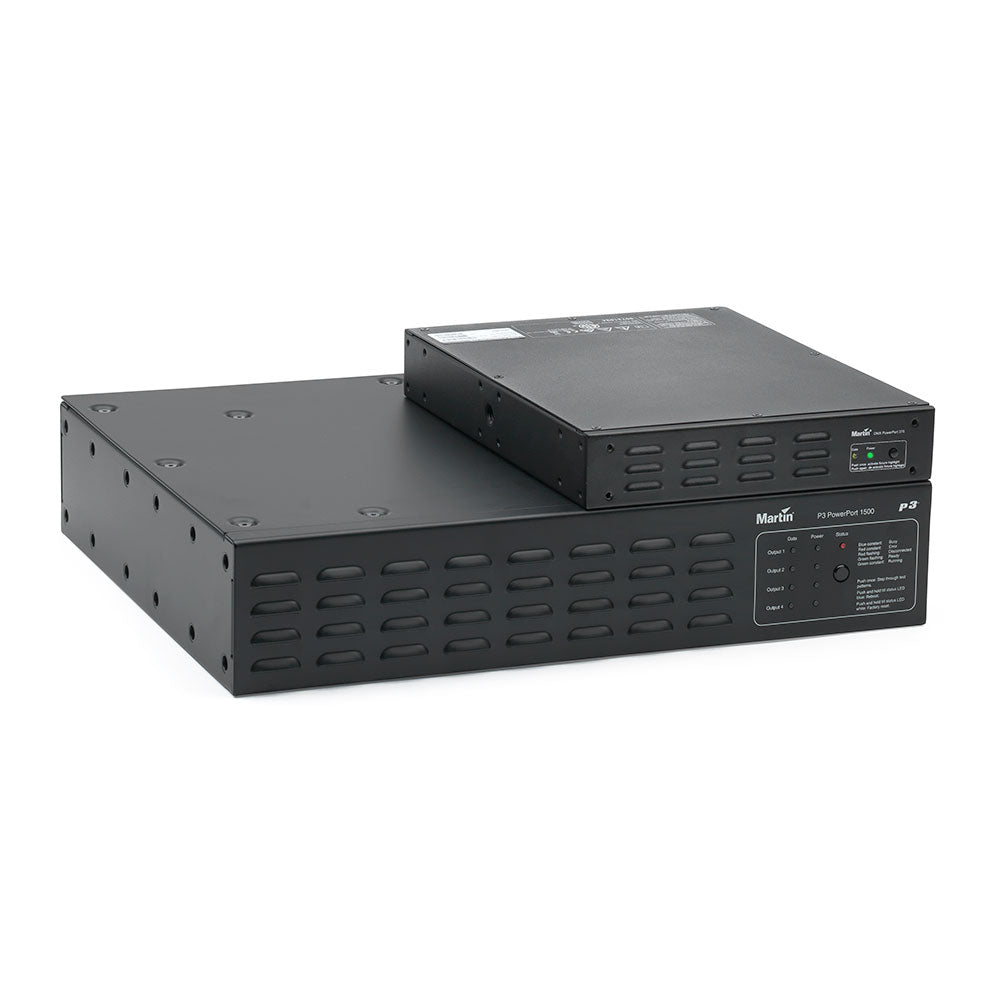

DMX PowerPort 375

A versatile indoor power & data unit for Martin Creative LED

From the Manufacturer:

The DMX PowerPort 375’s versatile housing supports single- and dual-unit mounting in 19” racks, wall-mounting and truss-mounted hanging configurations. The robust connectors and built-in DMX/RDM compatible splitter facilitate easy daisy-chaining between units, while the local test-button provides quick system-check without running back to the console.

Features:

• Rack-, truss- and wall-mountable

• Compact design

• DMX/RDM IN and THRU

• Built-in DMX/RDM splitter

• Hybrid power/data output port

• Local test button

Specifications:

• Physical

• Width: 220mm (single or double unit 19” rack-mountable with included rackmount ears)

• Height: 44mm (rack mount 1U)

• Depth: 289mm

• Weight: 2.33 kg

• Control and Programming

• Control Protocols: DMX and RDM

• DMX compliance: USITT DMX512-A

• RDM compliance: ANSI/ESTA E1.20

• DMX/RDM Transceiver IN/THRU: Opto-Isolated RS-485

• DMX/RDM Transceiver OUT: Opto-Isolated RS-485

• Setting and Addressing of connected fixtures: RDM

• Firmware update: over DMX link using Martin Companion

• Construction

• Housing: Steel

• Color: Matte Black

• Protection rating: IP 20

• Installation

• Orientation: Any

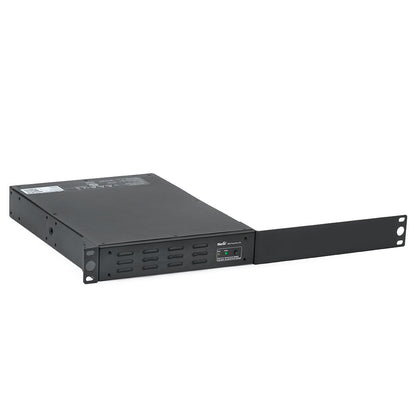

• Single Unit 19-inch Rackmount: Using supplied short and long rack mounting ears

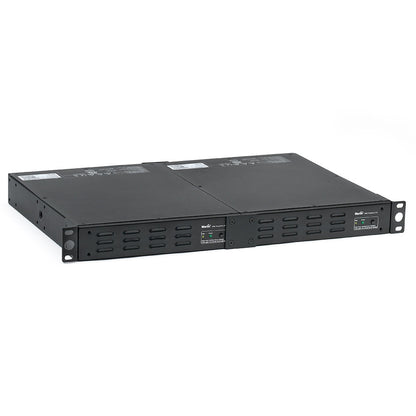

• Dual Unit 19-inch Rackmount: Using supplied coupling plates and short rack mounting ears

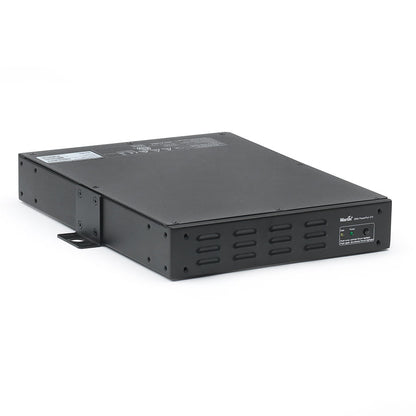

• Wallmount: Using supplied short rack mounting ears

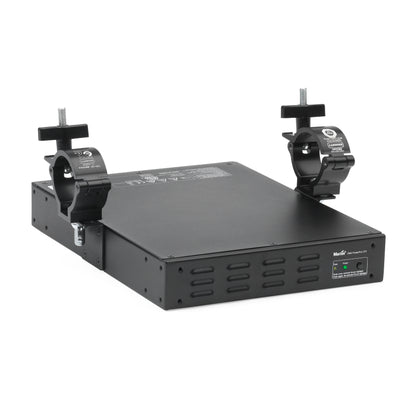

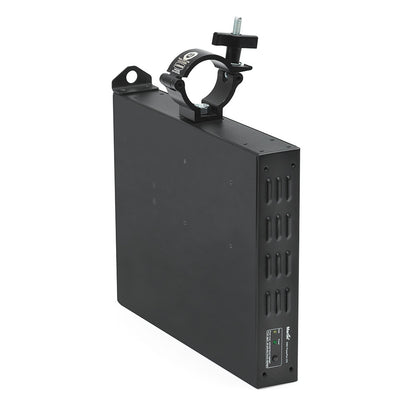

• Trussmount Vertical: Using half-coupler clamp in M10 threaded hole, max. bolt length 20 mm

• Trussmount Horizontal: Using halfcouplers in supplied short rack mounting ears

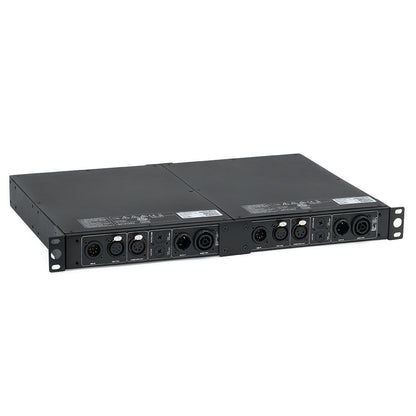

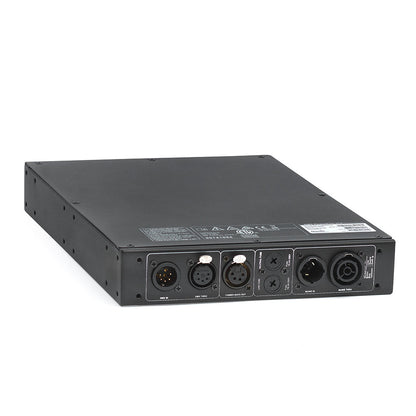

• Connections

• AC mains power IN: Neutrik powerCON TRUE1

• AC mains power THRU: Neutrik powerCON TRUE1

• DMX/RDM IN: Neutrik 5-pin male XLR socket

• DMX/RDM THRU: Neutrik 5-pin female XLR socket

• Combined power & data out:

• Neutrik 4-pin female XLR socket

(All connections hot-plugging compatible)

• Electrical

• AC mains power input: 100-240 V (nominal), 50/60Hz

• Power supply unit: Auto-ranging electronic switch mode

• Maximum permitted total current draw from 48Vdc OUT at 100-120 V mains power: 5.0 A

• Maximum permitted total current draw from 48Vdc OUT at 173-240 V mains power: 7.5 A

• Mains fuses: Double-pole/neutral fusing, 2x T6.3 A (slow-blow), 250 VAC

• Maximum total power consumption: 450 W (including full load of connected fixtures)

• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 9.6 A

• Typical earth-leakage current: 1.7 mA

• Thermal

• Cooling: Filtered forced air (temperature-regulated, low noise)

• Maximum ambient temperature (Ta max.): 45 °C

• Minimum ambient temperature (Ta min.): -20 °C

• Typical heat dissipation (calculated, +/- 10%): 300 BTU/hr. (not including connected fixtures, but with system at full load)

• Environmental

• RoHS: Compliant

• REACH: Compliant

• Approvals

• EU safety: IEC/EN60950, IEC/EN62368-1

• EU EMC: EN55032,EN55035, EN 61000-3-2, EN 61000-3-3

• Australia/NZ: AS/NZS 62368.1:2018

• Canadian / US Safety: CAN/CSA-C22.2 No. 62368-1/UL 62368-1

• Canadian / US EMC: ICES-003,Class B / FCC 47 CRF § 15 Class B

• India: BIS

What’s Included:

• 1 x Safety Cable Attachment Eyelet, incl. screws

• 2 x Short Rack Mounting Ears, incl. screws

• 1 x Long Rack Mounting Ear, incl. screws

• 1 x Coupling Plate, incl. screws

• User Manual

(Please note that a power input cable is not supplied with the product and must be ordered separately.)
