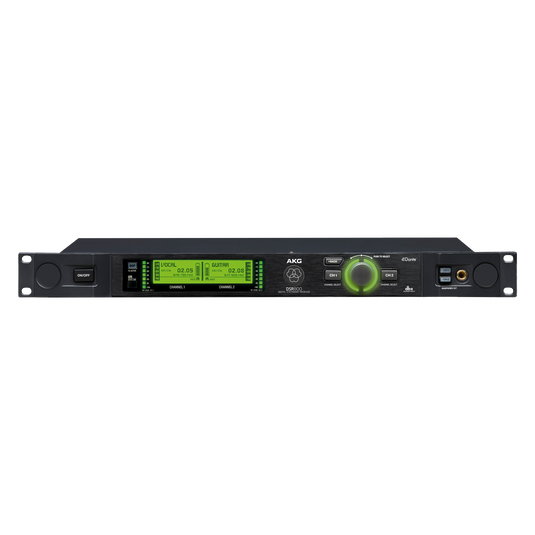

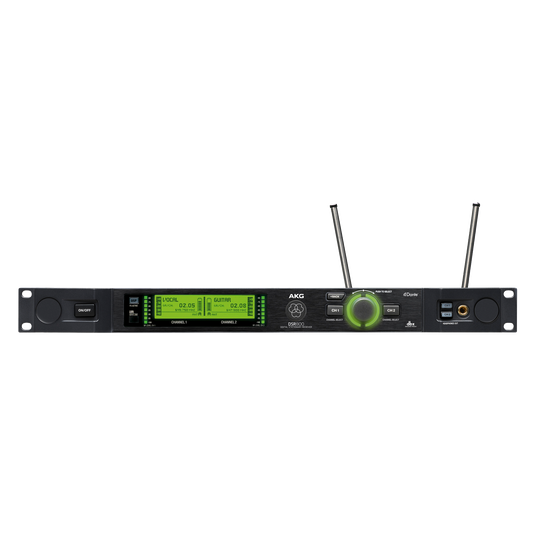

DSR800 Band1

The AKG DSR800 two-channel digital wireless receiver is flexible enough to meet a wide range of needs with its ultra-wide bandwidth.

From the Manufacturer:

The DSR800 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 body-pack transmitter, for line- and microphone signals. For enhanced flexibility, the DSR800 provides two digital audio outputs – for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver’s frequency band for active radio frequencies and displaying the spectrum.

Features:

• Two channels in a compact 19” metal casing: For secure rack-mounting and transportation
• Graphic spectrum analyzer: Provides a clear overview of radio frequencies
• User-friendly operation: By fast and intuitive system setup
• Integrated digital signal processing: With low-cut filter, three-band equalizer and dbx limiter
• Analog and digital audio outputs: 2x balanced XLR, 2x unbalanced ¼” jack connectors, AES EBU output and DANTE output

Specifications:

• General Specifications:
  • Power Supply: 100 - 240 V AC, 50 - 60 Hz, 0.4 A
  • Racksize: Full Racksize (19)
  • Rackheight: 1 RU
  • Carrier frequency range (country-dependent): Band 1 = 548.1 – 697.9 MHz
  • Switching bandwidth: ≤ 150 MHz (country-dependent)
  • Channels: 2 (dual receiver)
  • Sensitivity: 10 dBµV / -97 dBm
  • Image frequency and spurious attenuation: ≥ 95 dB
  • Receiver design: Super-Heterodyne
  • Diversity system: Digital True Diversity
  • Antenna inputs: 2 x 50 Ω BNC sockets
  • Bass roll off: 2nd order shelving filter, selectable betw. 10–300Hz
  • Equalizer: 3-band (amplification or padding of the lows, mids and highs)
  • Compressor : dbx®
  • Limiter: dbx® (parameter = usage threshold)
  • Transmitter battery indicator: 7‑segments
  • PC interface: Ethernet via HUB4000 Q (optional) ; Ethernet via Dante™ (100 Mbit/s) ; Software HiQnet Audio Architect
• Dimensions:
  • Length: 480 mm
  • Height: 45 mm
  • Width: 230 mm
  • Net Weight: 2380 g

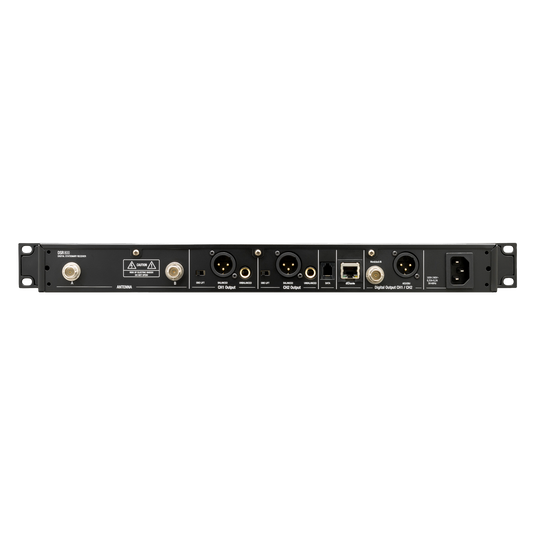

• Audio Output:
  • 2 x analog: XLR symmetrical
  • 2 x analog: 6.3 mm jack, unbalanced
  • 1 x digital: AES-EBU XLR (48 kHz) with BNC Wordclock input
  • 1 x digital: Dante™ (Ethernet) (48 kHz)
  • Audio output level: XLR bal. typ. +14 dBu (max.); 6.3 mm jack, un‑balanced typ. +8 dBu
