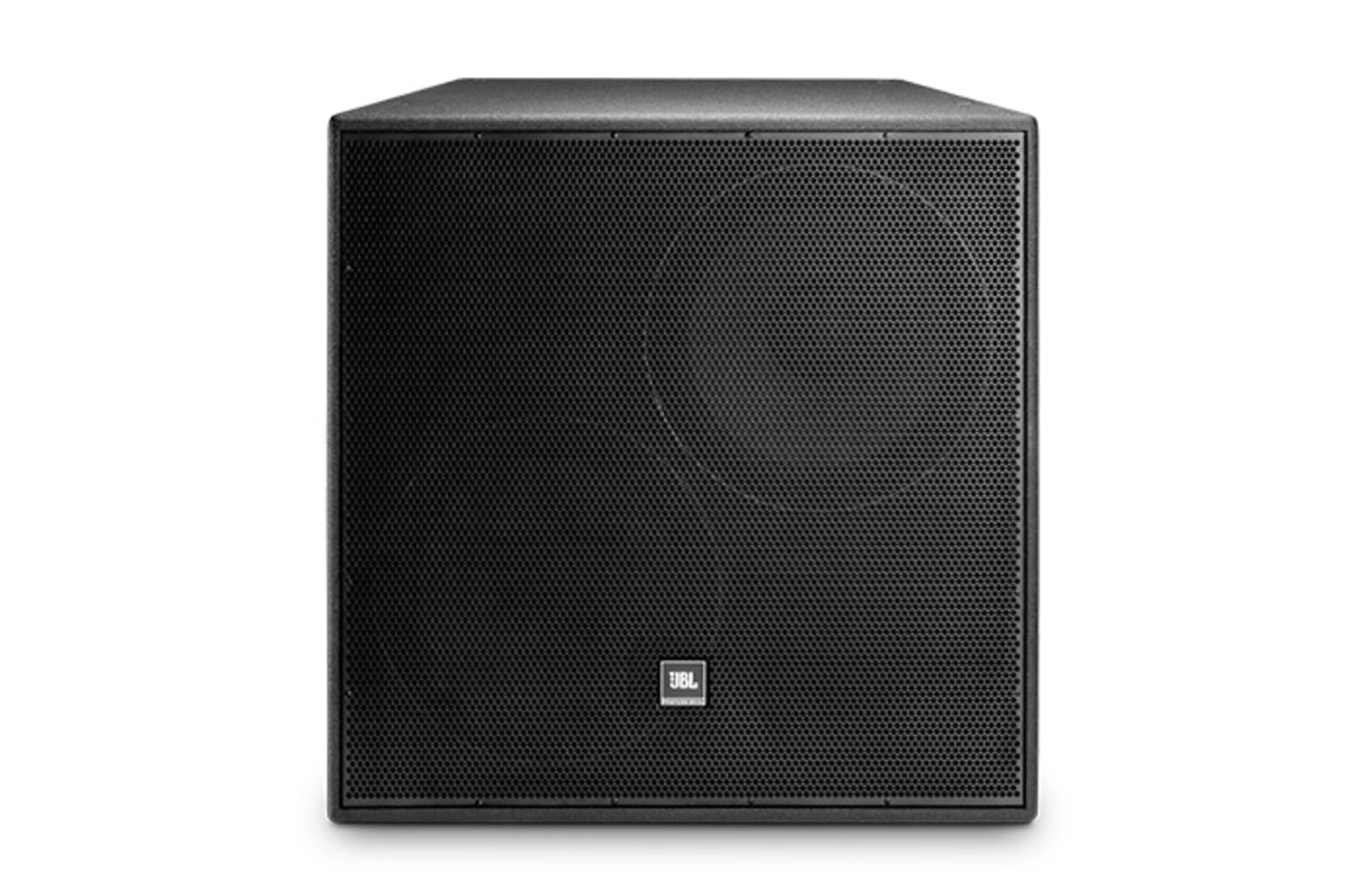

PD525S

The PD525S is a dual 15-inch subwoofer system. It is a great option for install purposes in medium sized venues such as Sports Facilities, Performance spaces, Auditoriums, Worship facilities.

From the Manufacturer:

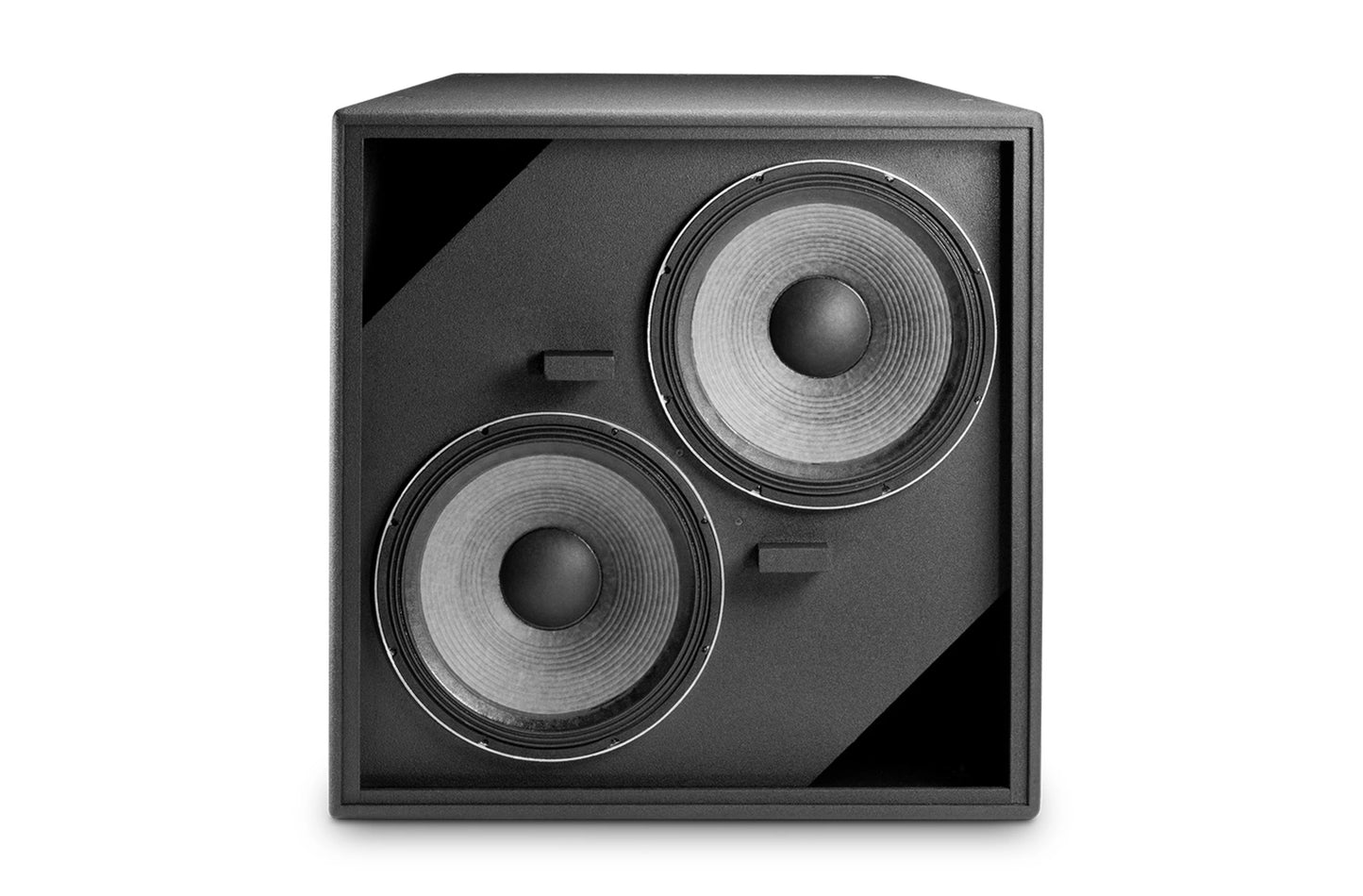

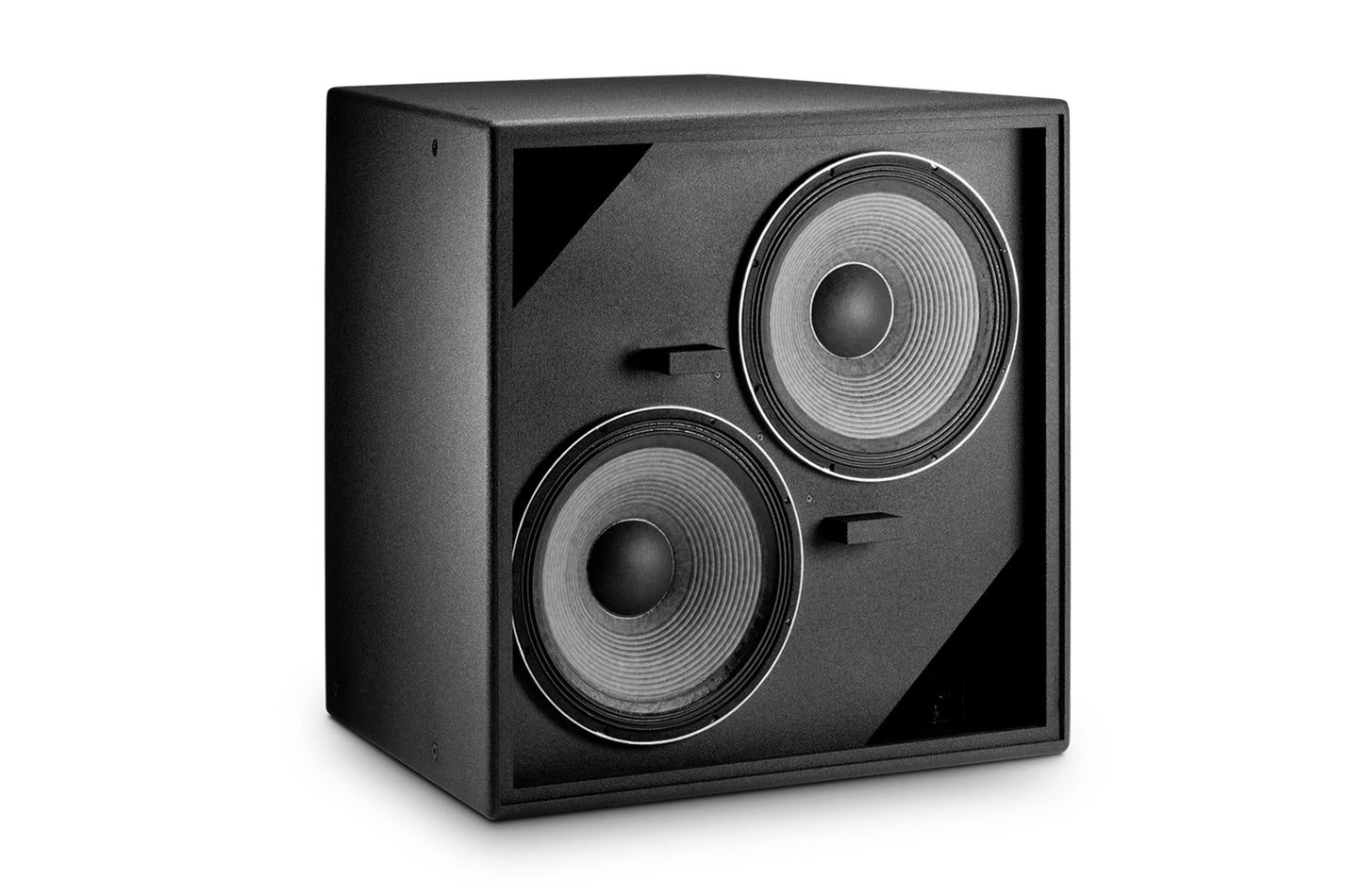

The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.

Features:

• Two high power 380 mm (15 in) low frequency drivers

• Low frequency extension to 40 Hz

• Enclosure dimensions compatible with all PD500 Series models

Applications:

• Sports Facilities

• Performance spaces

• Auditoriums

• Worship facilities

Specifications:

• Frequency Range (-10dB)

• 28 Hz to 3.8kHz

• Frequency Response (±3 dB)

• 40 Hz to 1.1kHz

• Transducer Power Ratings (AES)

• 2000 W (8000 W peak) 2 hrs

• System Power Rating

• 1000 W, 100 hrs

• Sensitivity

• 102 dB (avg 40-1kHz)

• Maximum SPL (1m)

• 135 dB cont (141 dB peak)

• Input Modes

• Drivers Parallel/Drivers Discrete

• Nominal Impedance

• 4 ohms in parallel-drive mode, 2 x 8 ohms in discrete drive mode

• LF Driver

• 2 x JBL 2275H 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® drivers with 75 mm (3 in) voice coils.

• Enclosure

• Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.

• Suspension Attachment

• 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).

• Finish

• Black DuraFlex™ finish.

• Grille

• Powder coated 14 gauge perforated steel, acoustically transparent backing

• Input Connectors

• CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.

• Environmental

• Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.

• Optional Accessories

• 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.

• Nominal LF Driver Impedance

• 4 ohms in parallel-drive mode 2 x 8 ohms in discrete drive mode

• Dimensions (H x W x D in vertical orientation)

• 782 mm x 783 mm x 670 mm

• 30.8 in x 30.8 in x 26.4 in

• Net Weight (each)

• 53.4 kg

• 118 lb
