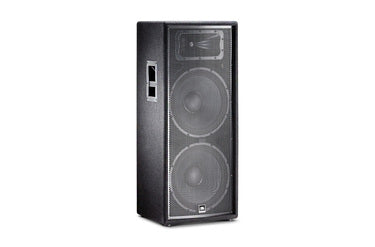

JRX225

The JRX225 is a portable speaker for live music performances and music playback.

From the Manufacturer:

The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

Features:

• Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.

• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.

• The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.

• A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.

• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.

• Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.

• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.

• SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

• Non-resonant, all-steel handles are used.

• Attractive 18-gauge perforated, steel grille protects components from damage.

Specifications:

• Power Rating

• 500 W / 2000 W

• Frequency Range (-10dB)

• 42 Hz - 18 kHz

• Frequency Response (±3 dB)

• 62 Hz - 13 kHz

• Sensitivity (@1m)

• 100 dB SPL (1w/1m)

• Nominal Impedance

• 4 ohms

• Recommended Amplifier Power

• 500 W to 1000 W into 4 ohms

• Maximum SPL (1m)

• 133 dB

• Nominal Dispersion

• 90º x 50º

• Crossover Frequency

• 2.2 kHz

• Dimensions (H x W x D)

• 1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)

• Weight

• 42.6 kg (94 lb)

• HF Driver

• JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide

• LF Driver

• JBL M115-8A x 2

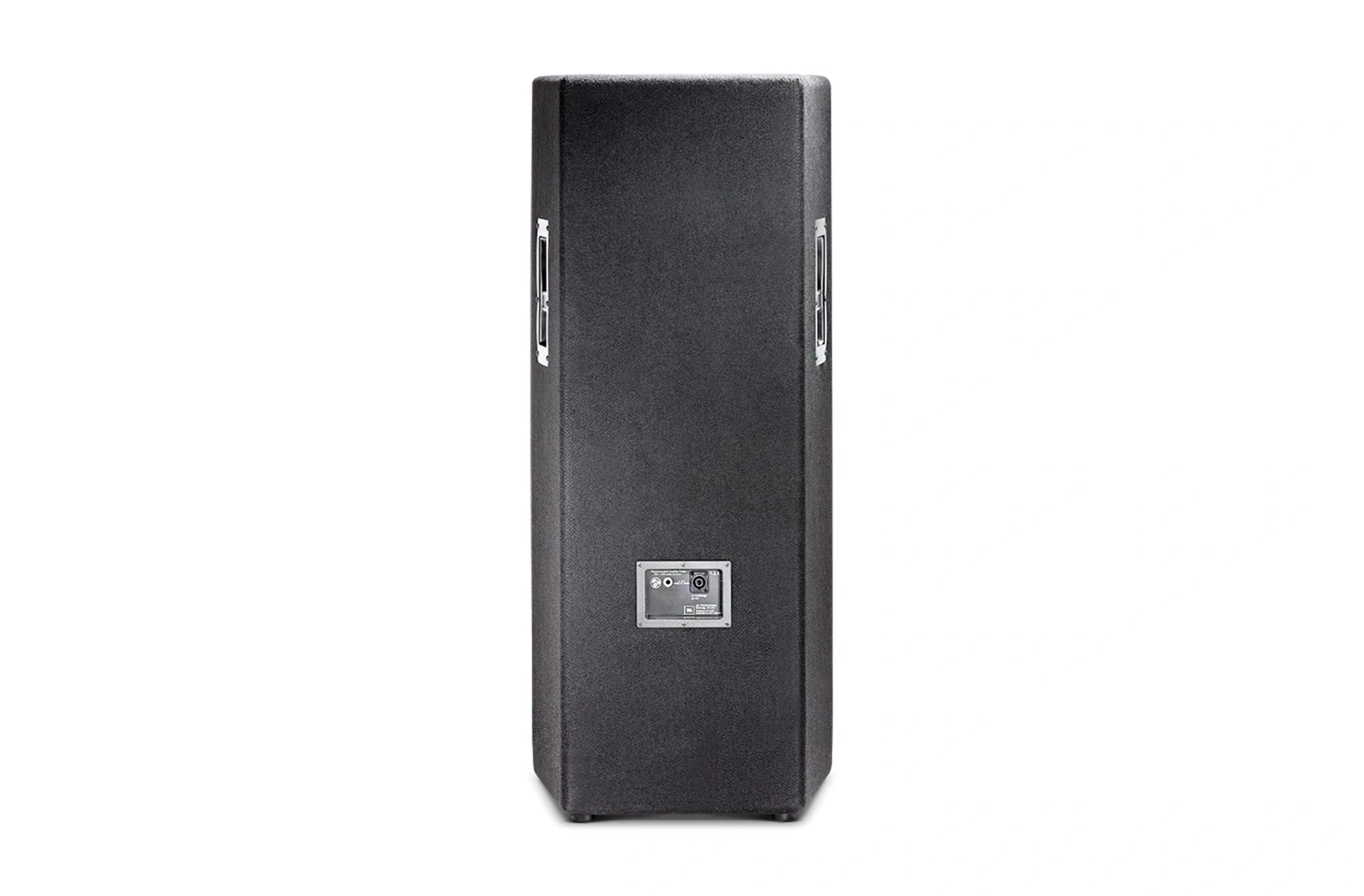

• Inputs

• Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel

• Enclosure

• MDF (Medium Density Fiberboard) covered in black carpet.
